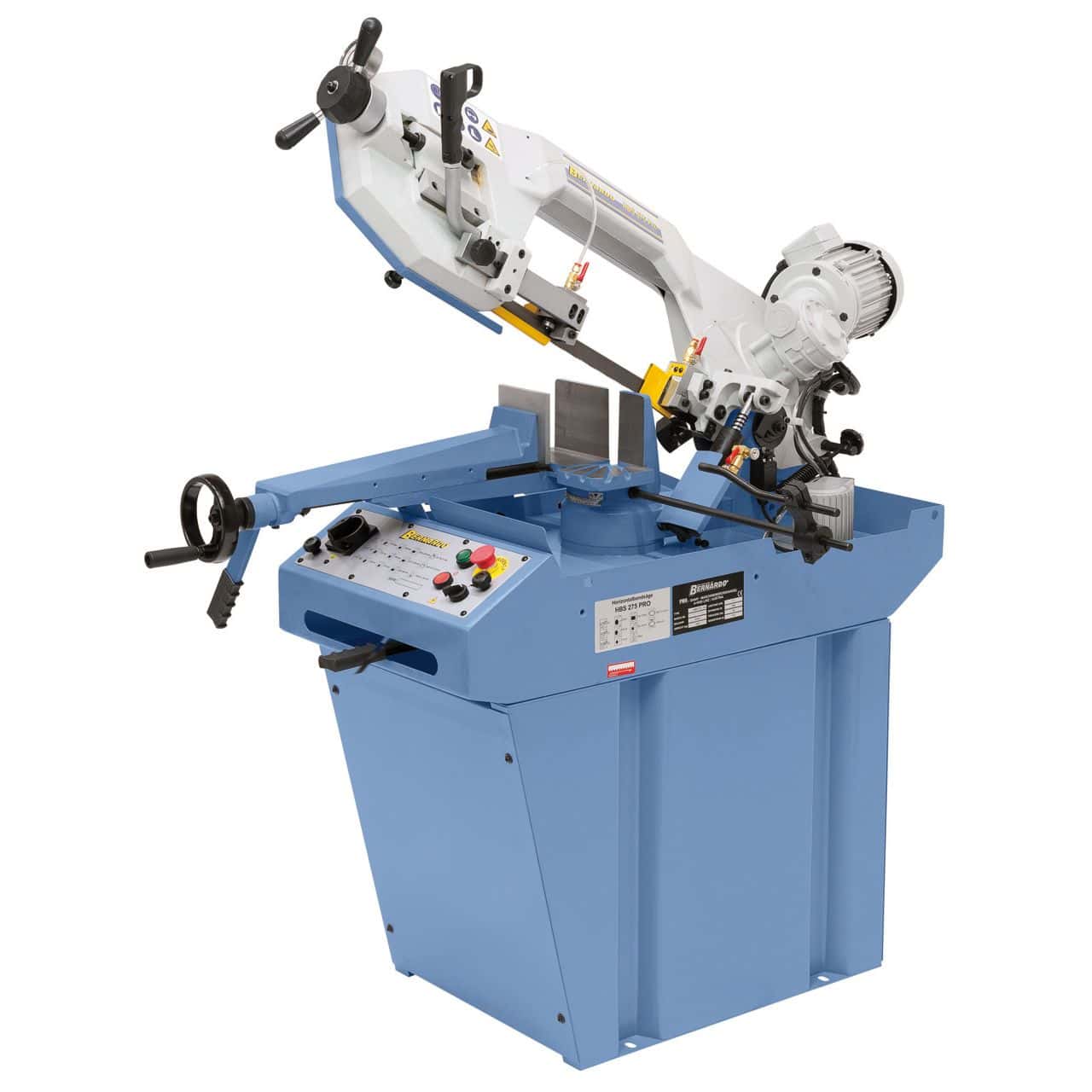

⚙️ HBS 275 PRO Horizontal Band Saw
Precise, robust and versatile – for professional cuts on solid and profiled metals
The HBS 275 PRO is a compact, high-performance horizontal band saw, ideal for universal use in machine shops, metal fabrication shops, and maintenance departments. The carbide-tipped blade guide , combined with the integrated coolant device , ensures clean, precise, and long-lasting cuts, even on difficult materials such as stainless steel and tool steel.
The robust, torsion-free spheroidal cast iron frame ensures structural stability and a long service life. The PRO version offers two selectable cutting speeds , while the Vario variant (HBS 275 PRO Vario) also offers stepless adjustment. The frame pressure is regulated by an adjustable hydraulic cylinder , to adapt to any type of material.
✅ Main Features

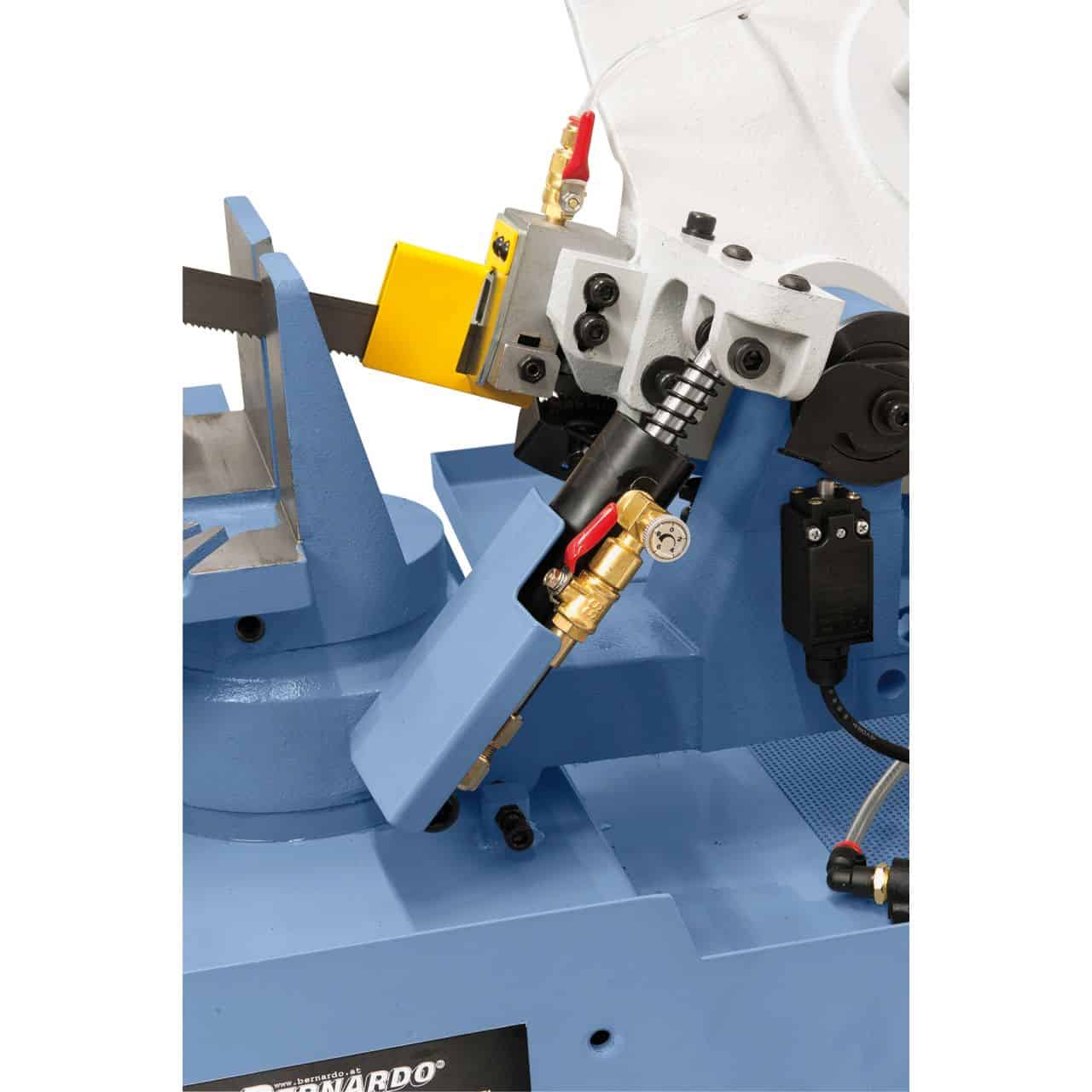

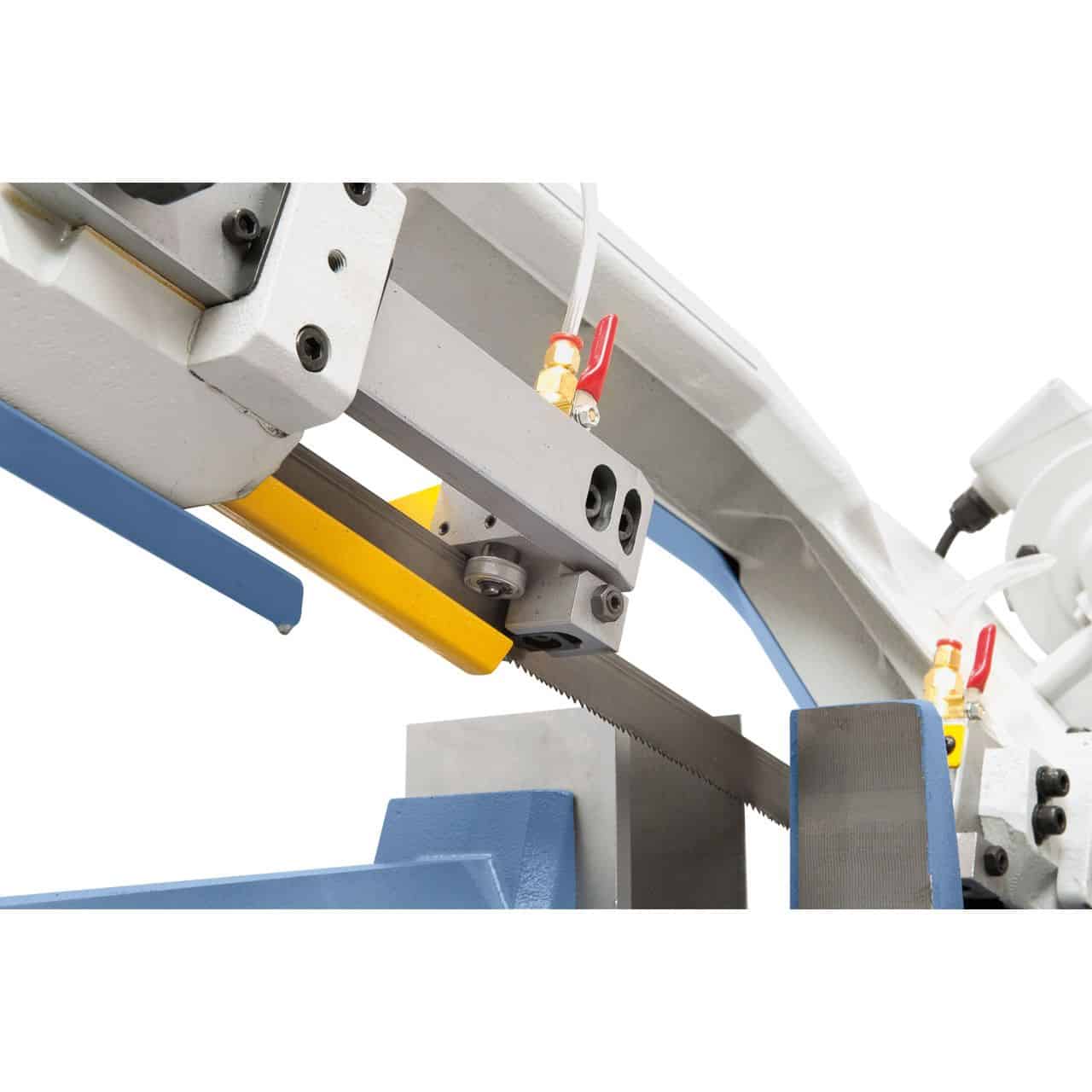

- Professional blade guide with rollers and hard metal inserts
- Spheroidal cast iron frame, rigid and stable
- Ideal for pipes, profiles and solid materials, including stainless steel
- Adjustable hydraulic cylinder to regulate the descent of the arch

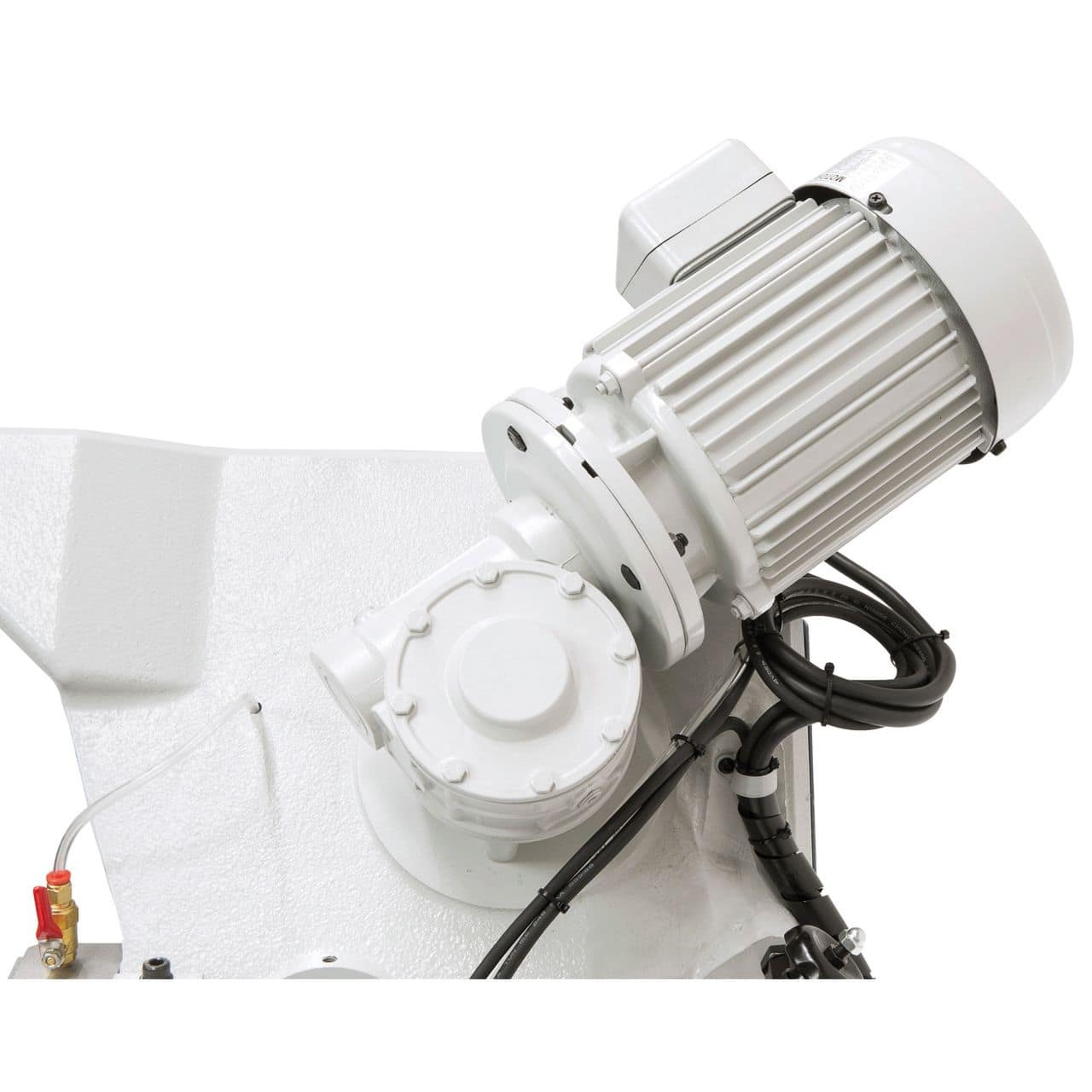

- Transmission via hardened worm screw and bronze wheel
- Automatic stop at the end of cutting
- Two selectable cutting speeds: 45 / 90 m/min

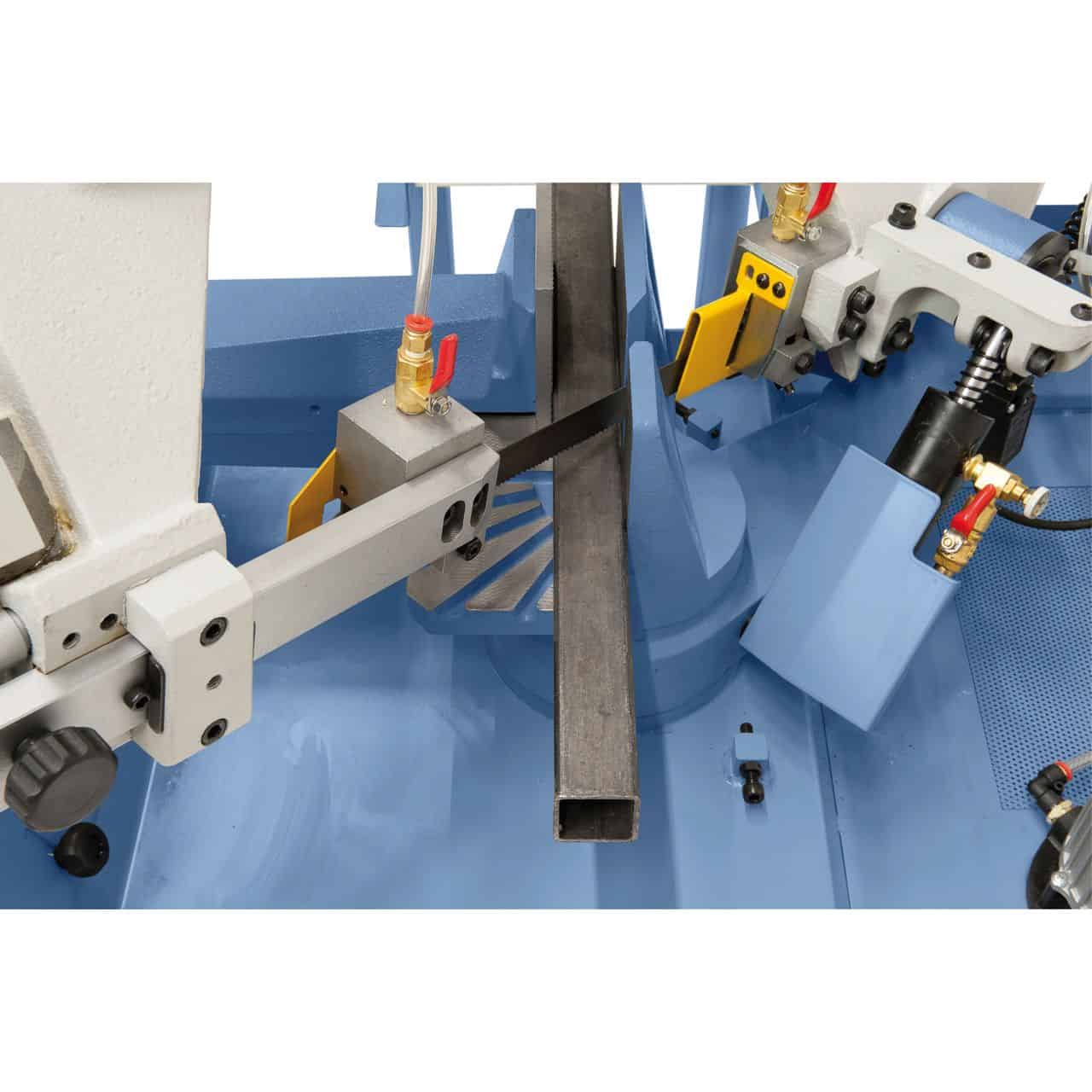

- Quick-adjust vise for quick workpiece changes
- Blade guide adjustable according to the piece to optimize cutting

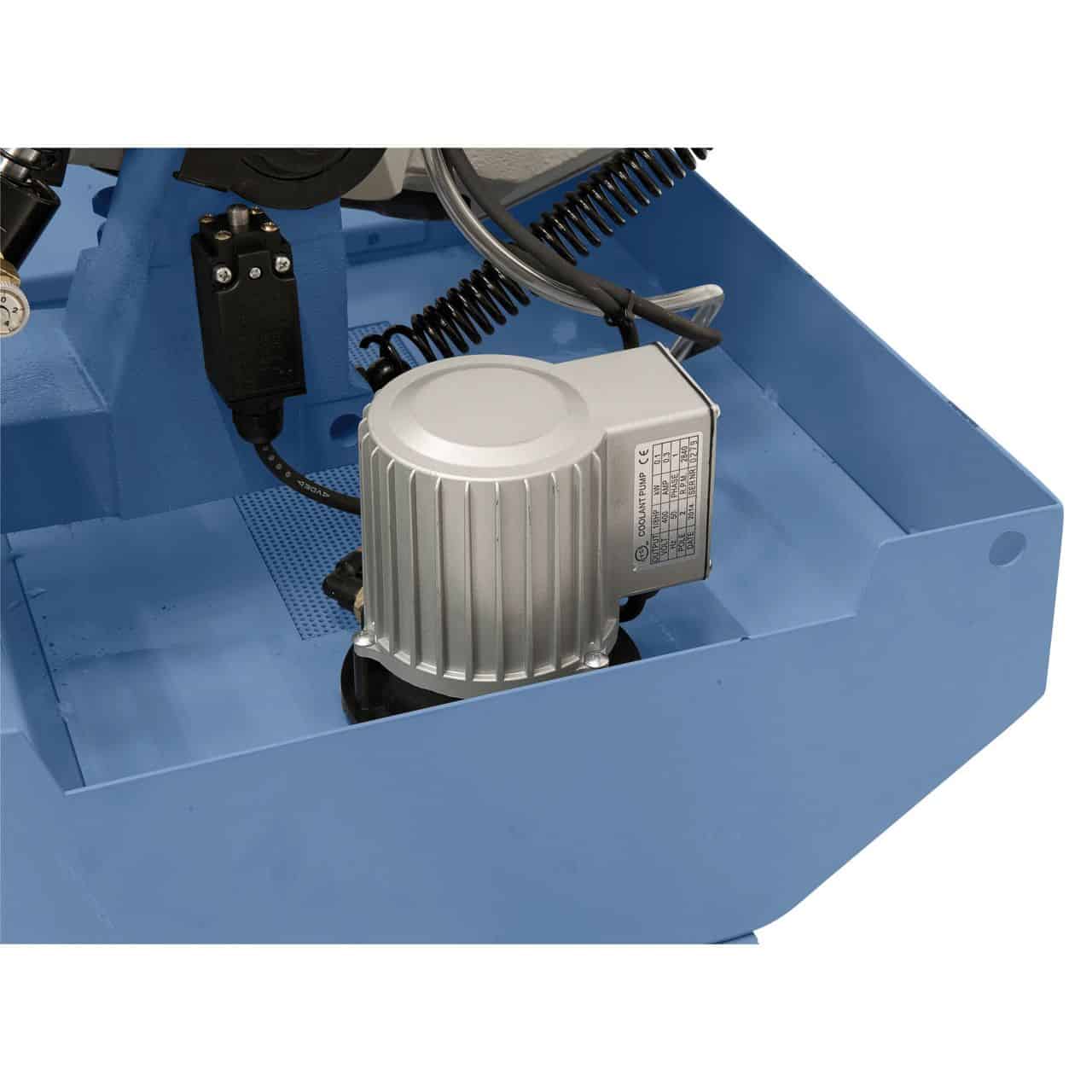

- Cooling tank with 100W pump included
? Technical Specifications
| Parameter | Value |
|---|---|
| 90° round cutting capacity | Ø 225 mm |
| 90° square cutting capacity | 200 x 200 mm |
| 90° flat cutting capacity | 245 x 150 mm |
| 45° round cutting capacity | Ø 160 mm |
| 45° square cutting capacity | 160 x 160 mm |
| 60° round cutting capacity | Ø 100 mm |
| 60° square cutting capacity | 100 x 100 mm |
| Working height | 910 mm |
| Blade size | 2480 x 27 x 0.9 mm |
| Cutting speed (2 stages) | 45 / 90 m/min |
| Coolant pump | 100 W |
| Engine power (S1 100%) | 1.1 kW |
| Power consumption (S6 40%) | 1.5 kW |
| Supply voltage | 400 V |
| Machine dimensions (L x W x H) | 1430 x 720 x 1700 mm |
| Weight | approximately 180 kg |
? Standard Accessories Included
- Band saw blade
- Beat for material
- Base

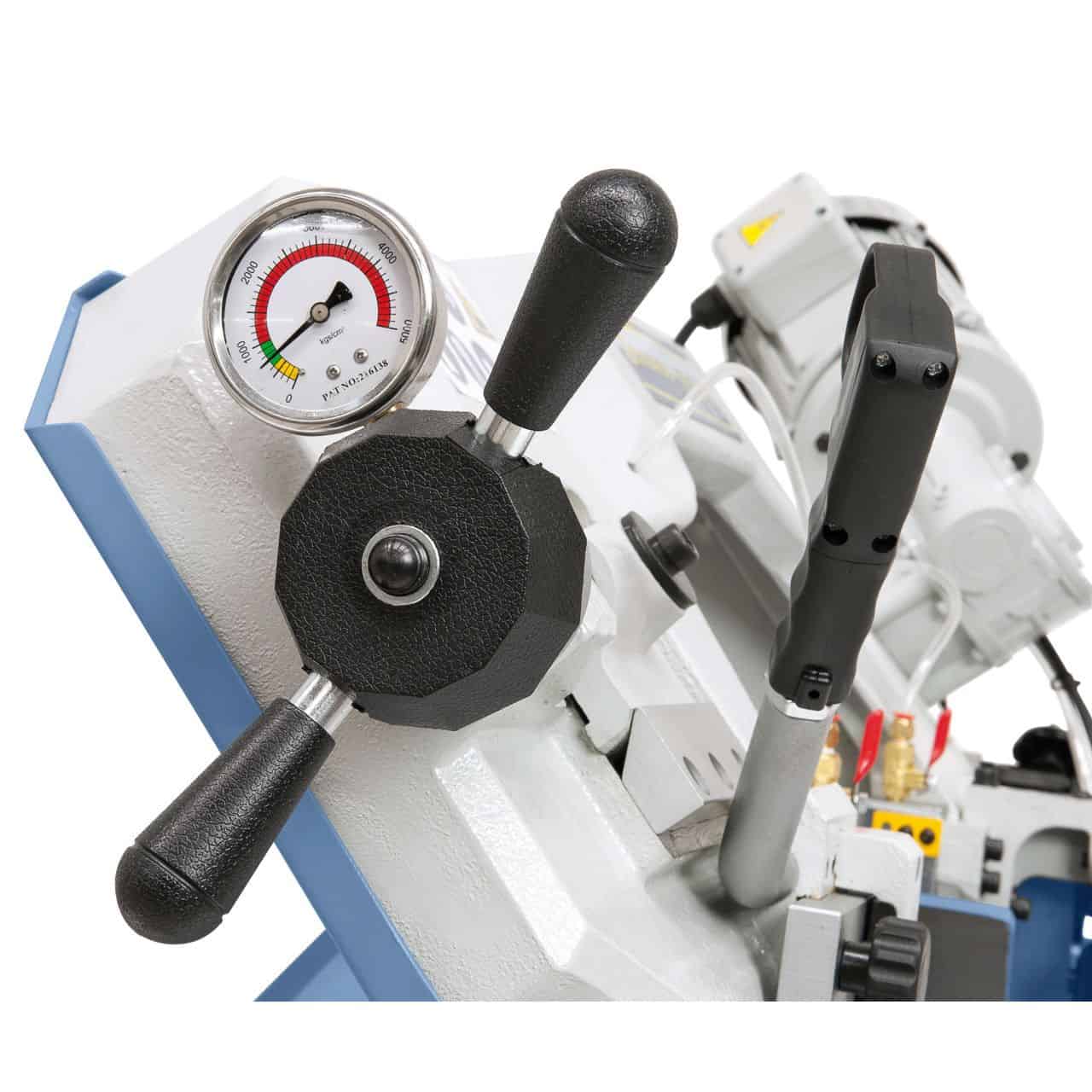

- Blade tension gauge
- Blade guide with hard metal inserts
- Quick-adjust vice
- Refrigeration system
- Adjustable hydraulic cylinder

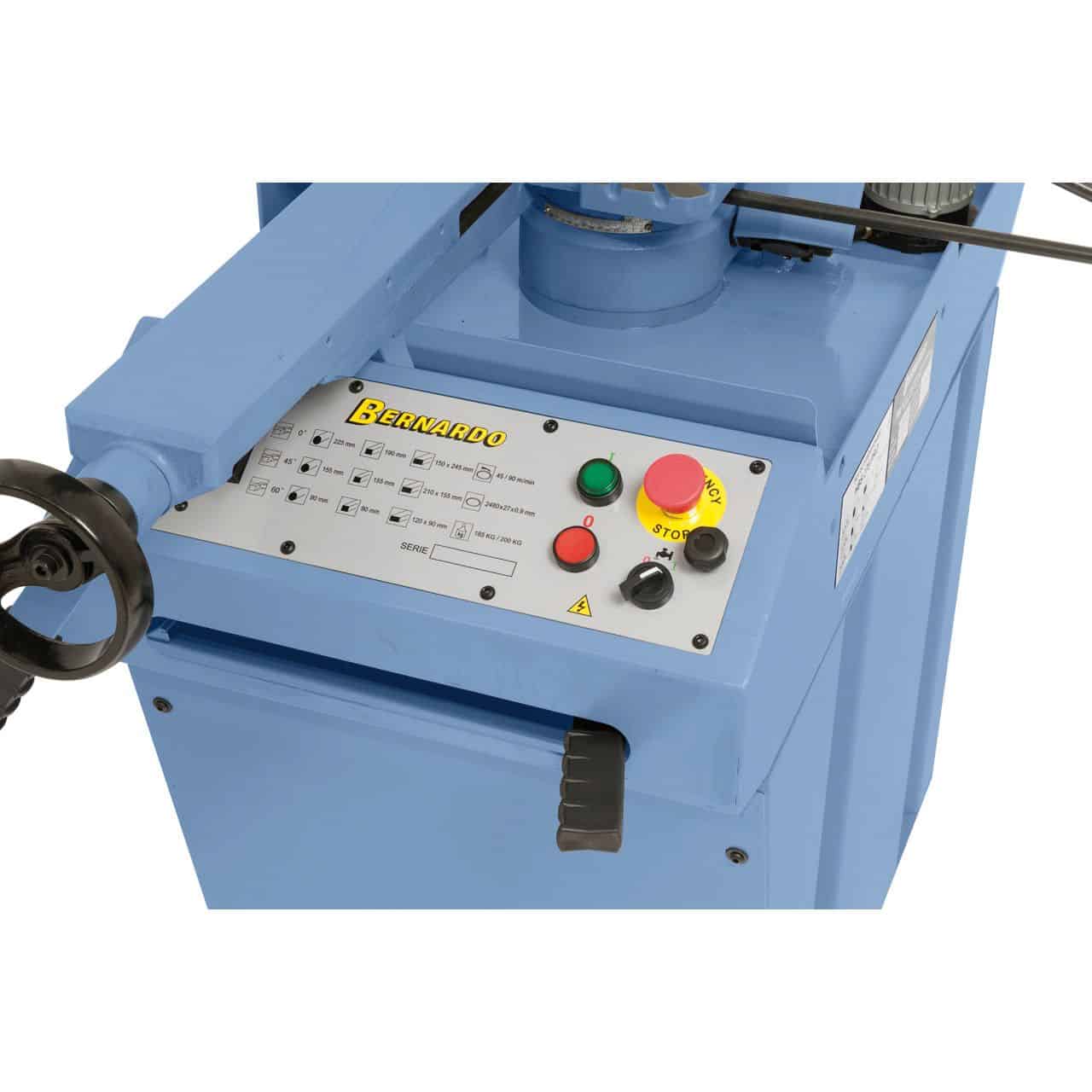

- Motor protection switch
- Automatic shutdown at the end of cutting
