Bernardo | SKU:
06-1947BXL
Pre-order

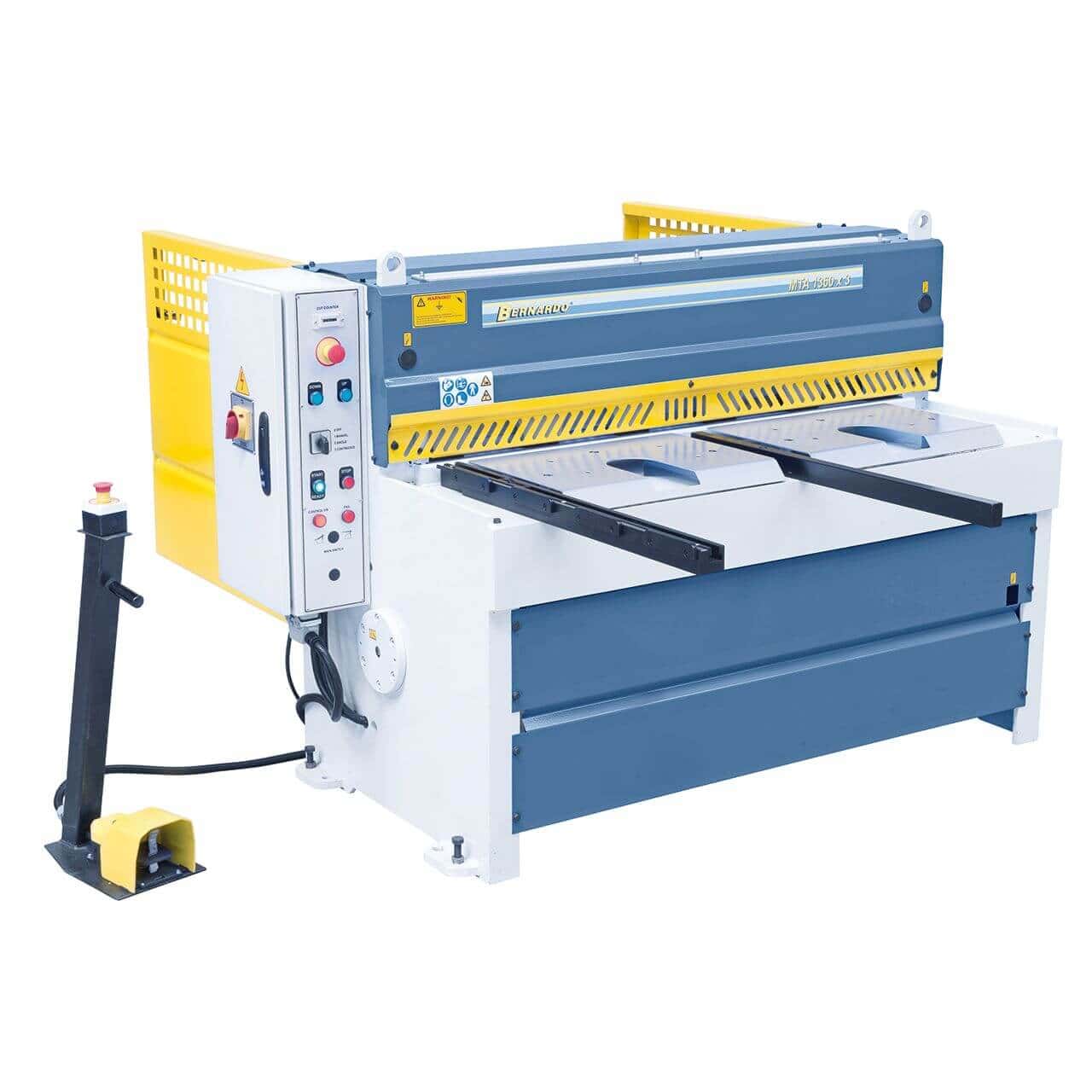

MTA 1560 x 3 mm motorized guillotine shear
€13.786,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
MTA 1560 x 3 mm motorized guillotine shear is backordered and will ship as soon as it is back in stock.
disponibili in 2/3 mesi
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Technical Specifications
-
Product safety
-
Reviews
Description
Property
- Quick and precise adjustment of the rear stop (750 mm) via handwheel
- Forklift with right-angle rear stop on both sides
- For efficient cutting of various materials, such as sheet steel, brass, aluminum, copper, ...
- High safety for the operator thanks to the protective cover and photocells on the rear of the machine
- Cutting via the pedal, the hands remain free for optimal positioning of the sheet metal
- The double-edged upper and lower blades made of quality steel ensure a clean, burr-free cut.
- Robust sheet steel construction for torsion-free machining
- Precise work thanks to integrated cutting line illumination with shadow contour
Standard accessories

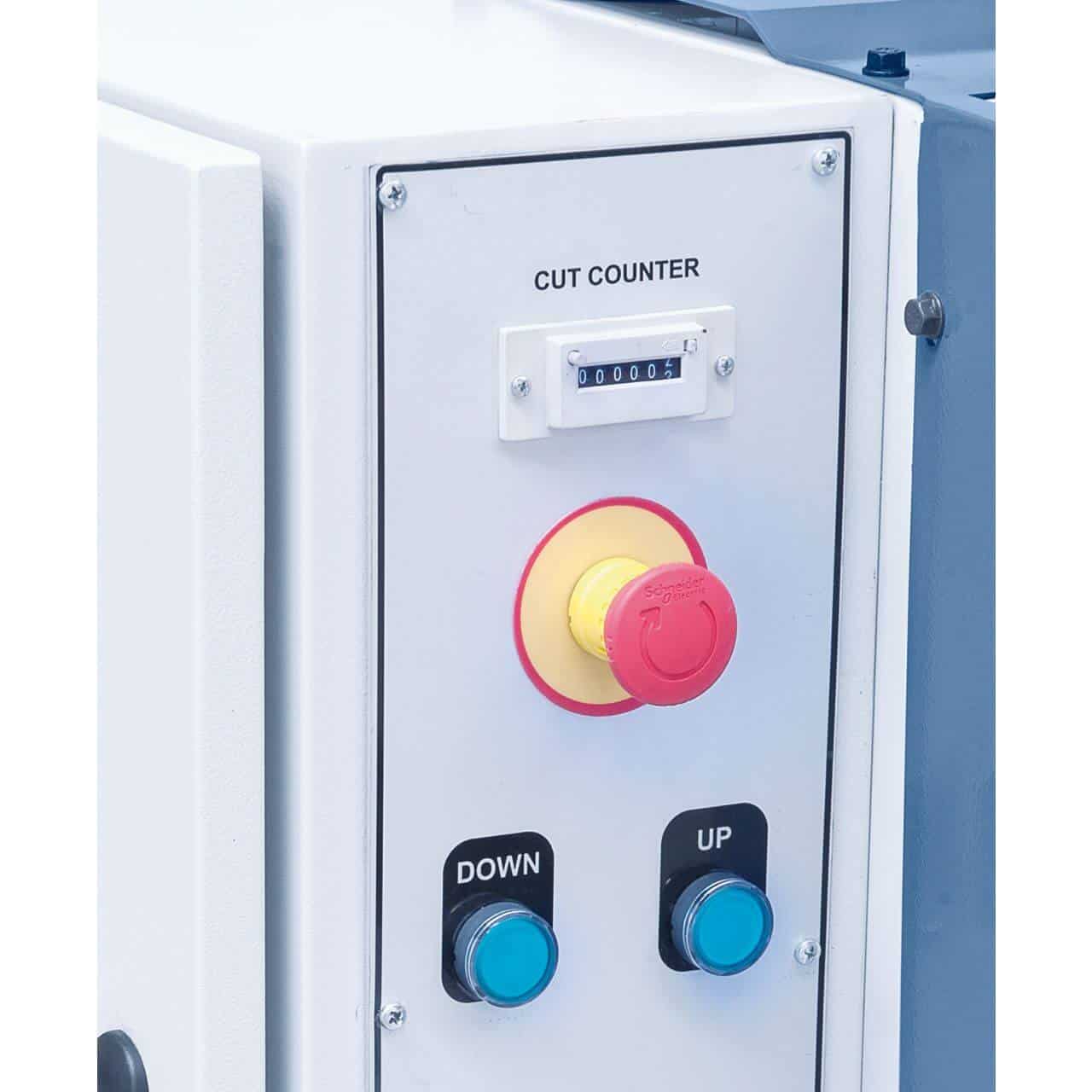

- Cut counter
- Lighting of the cutting area
- Manual rear stop

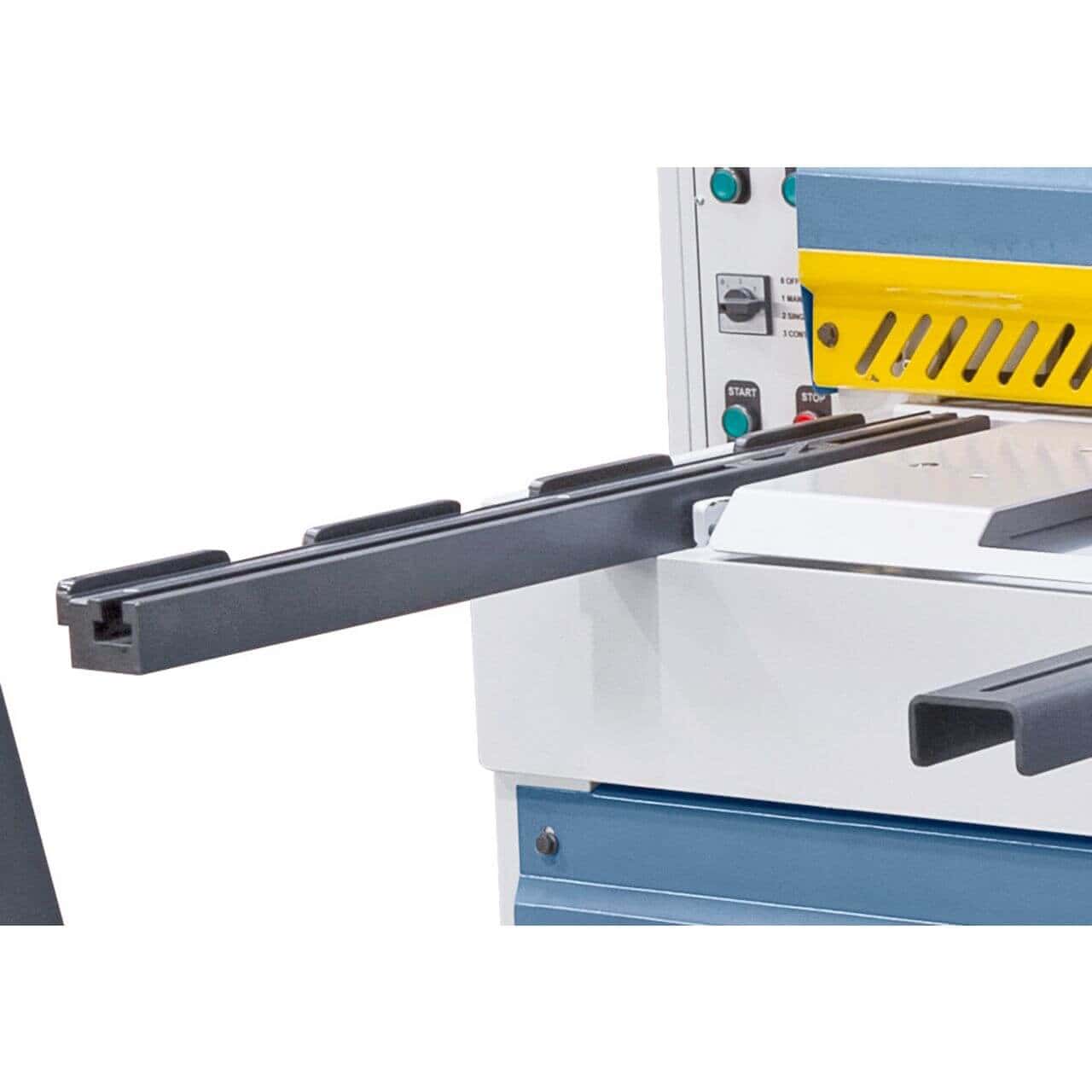

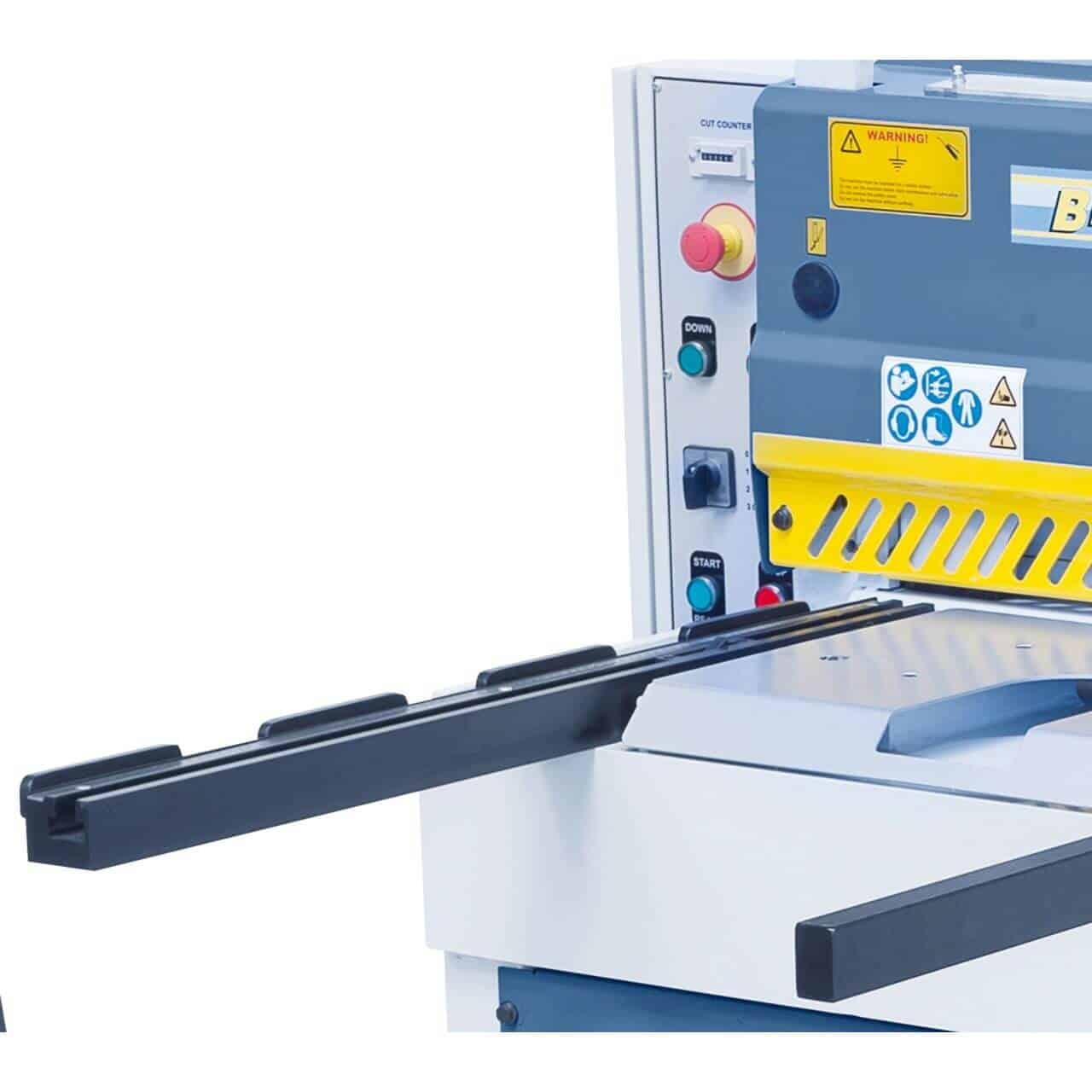

- Front supports for slabs
- Side stops
- Protective sheet with photocells

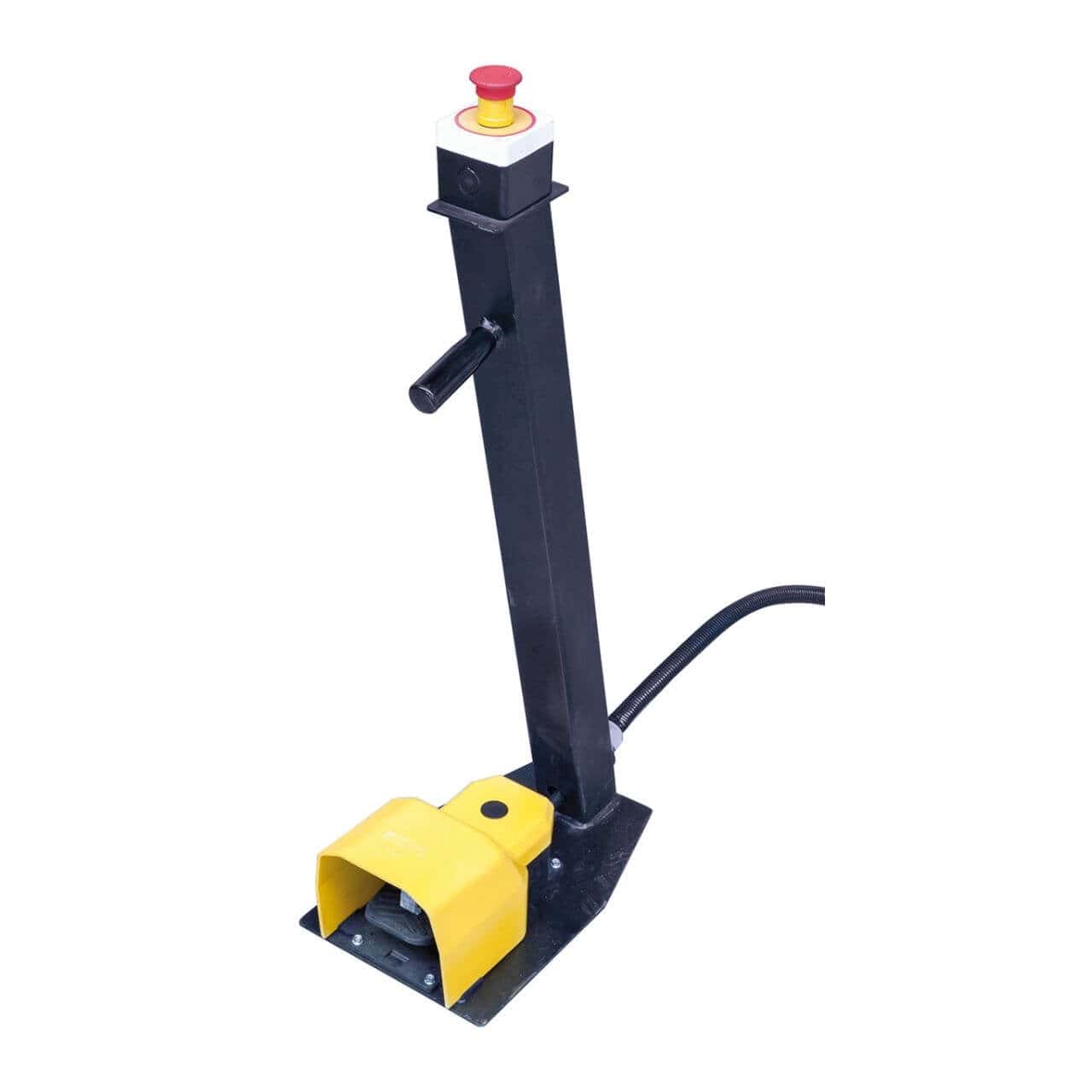

- Pedal with emergency stop
- Tool steel blades
technical specifications
| Cutting length | 1560 mm |
| Max. sheet metal thickness * | 3 mm |
| Cutting angle | 2nd 30' |
| Races / min | 31 |
| Working height | 810 mm |
| Rear stop | 0 - 750 mm |
| Table width | 390 mm |
| Engine power | 3.0 kW |
| Length | 2100 mm |
| Depth | 2100 mm |
| Height | 1260 mm |
| Approximate weight | 1470 kg |
| * Material resistance 400 N/mm² |
Technical Specifications
Può tagliare lamiere fino a 1560 mm di lunghezza e 3 mm di spessore (acciaio 400 N/mm²), garantendo precisione e qualità di taglio.
La cesoia è dotata di protezioni posteriori con fotocellule e pedale con arresto di emergenza per garantire la massima sicurezza.
Il registro posteriore è regolabile manualmente fino a 750 mm tramite volantino, consentendo tagli precisi e ripetitivi.
Monta lame superiori e inferiori a doppio tagliente in acciaio di qualità, che garantiscono tagli puliti e senza bave.
La macchina pesa circa 1470 kg e viene consegnata con imballo industriale robusto, pronta per essere installata in officina.
È adatta al taglio di acciaio, alluminio, rame, ottone e altre lamiere fino a 3 mm di spessore.
