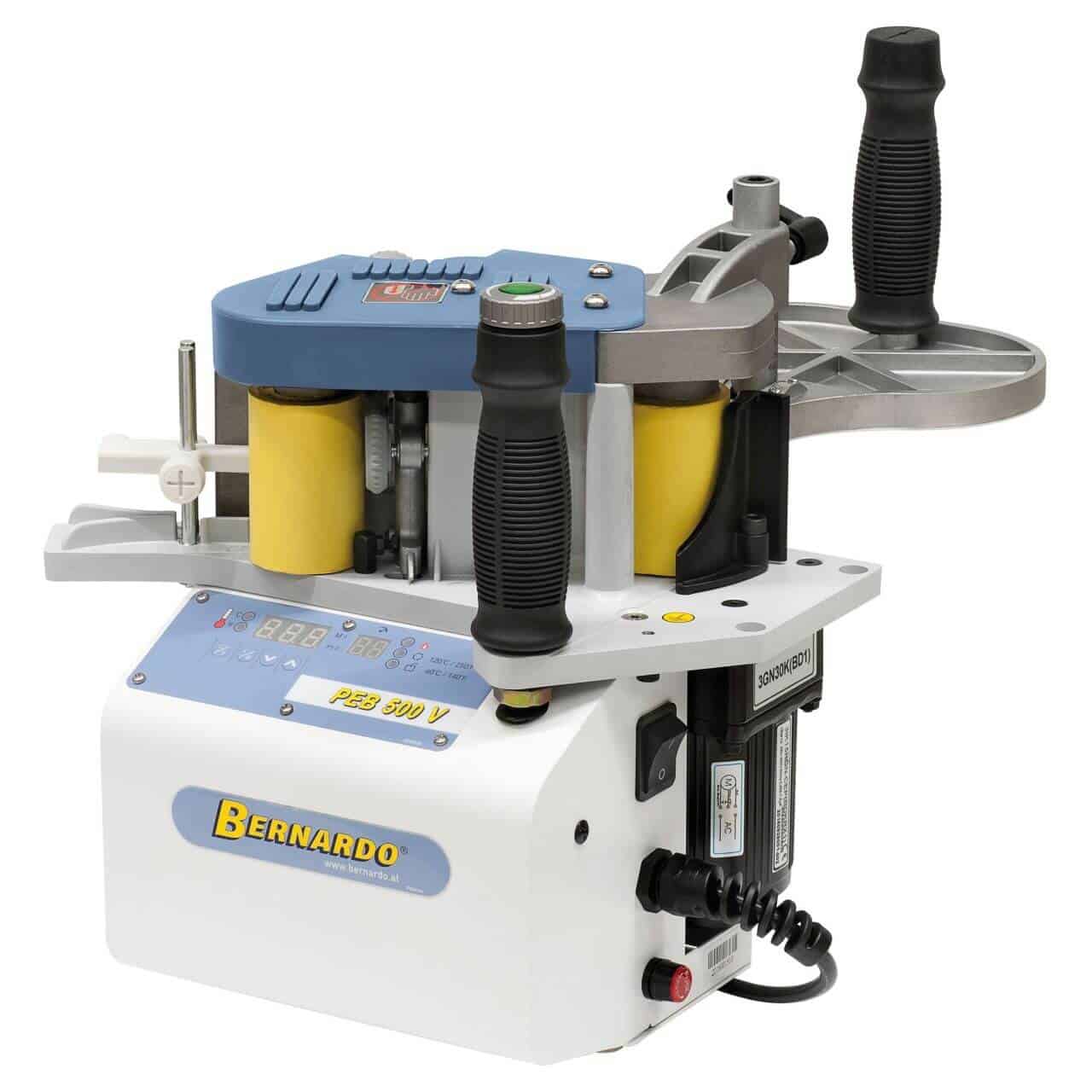

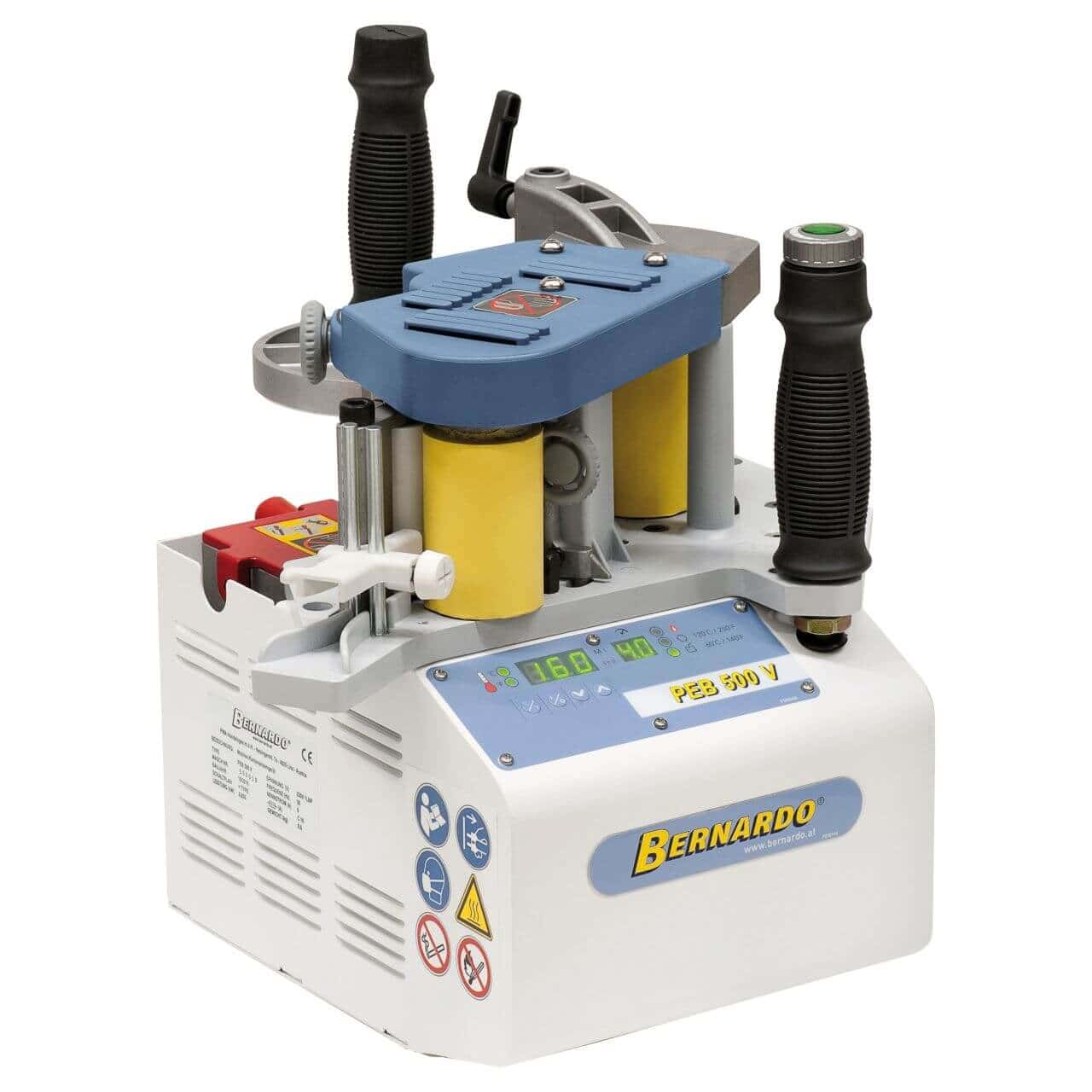

PEB 500 VS mobile edge banding machine

The PEB 500 VS mobile edgebander is ideal for gluing straight, curved, and round workpieces. Thanks to its low investment costs and compact design, this unit is ideal for all woodworking businesses, both in the workshop and for assembly. Furthermore, this model offers a continuously adjustable feed speed. Property:

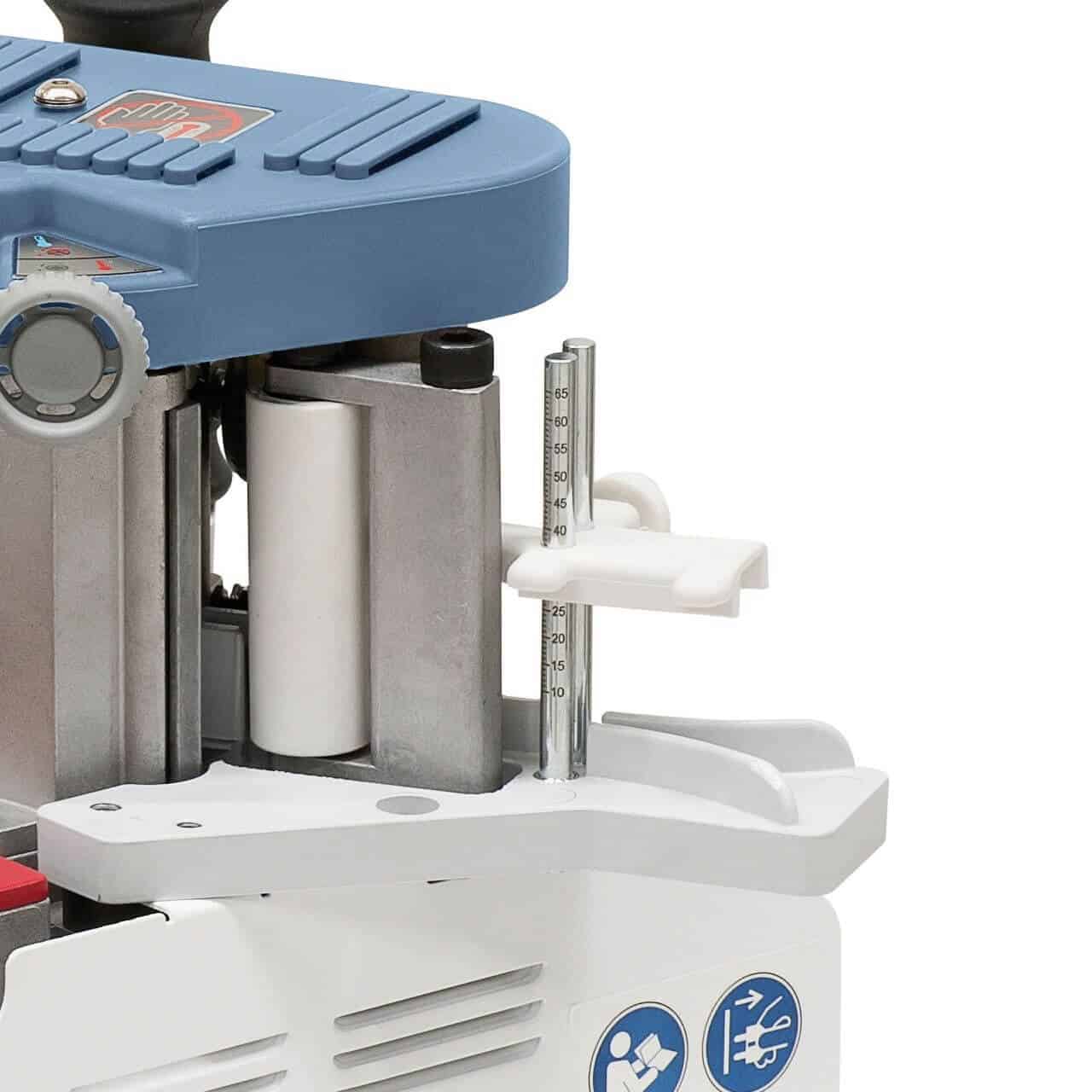

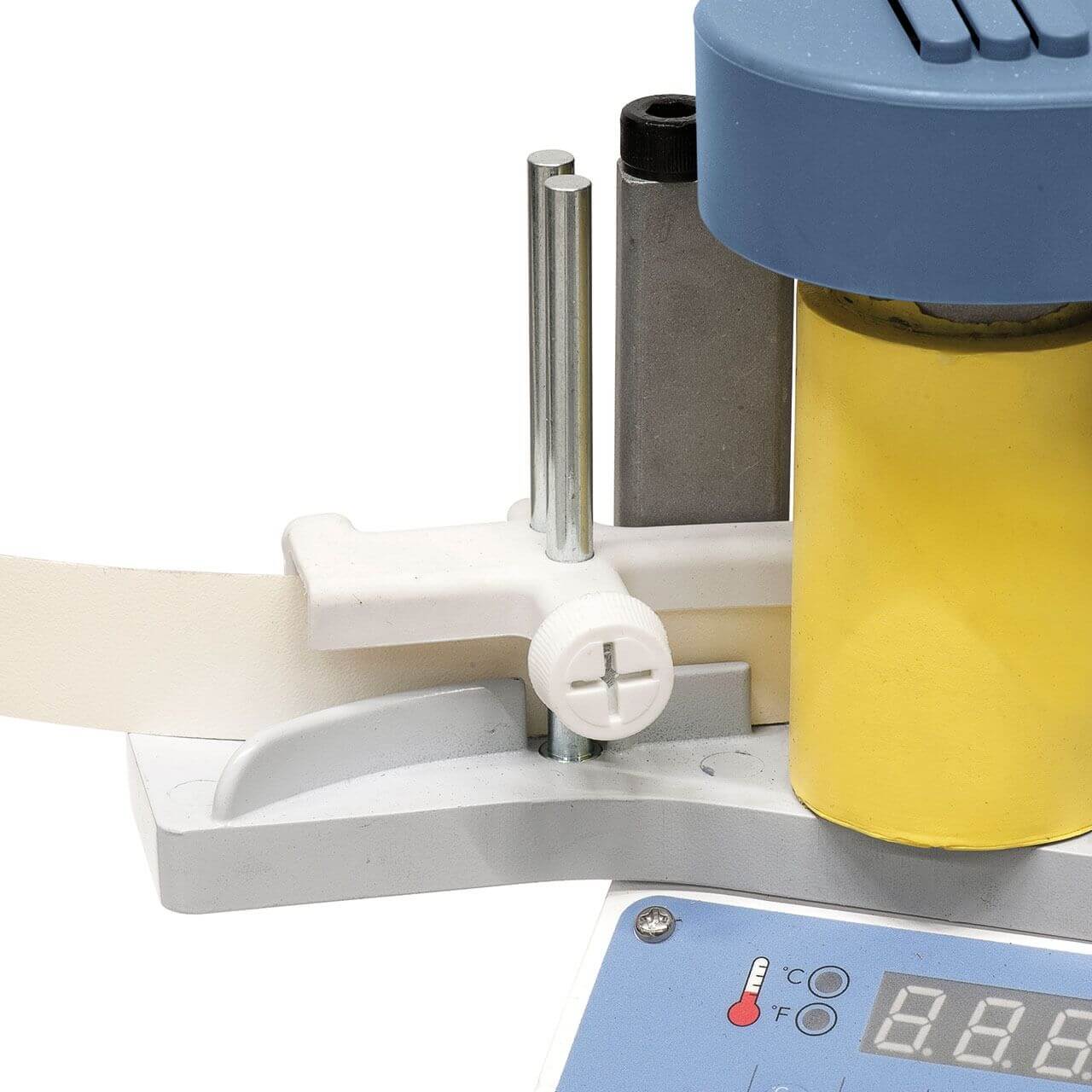

• Adjustable guide system for use with edge thicknesses from 0.3 to 3 mm or edge heights from 10 to 65 mm.

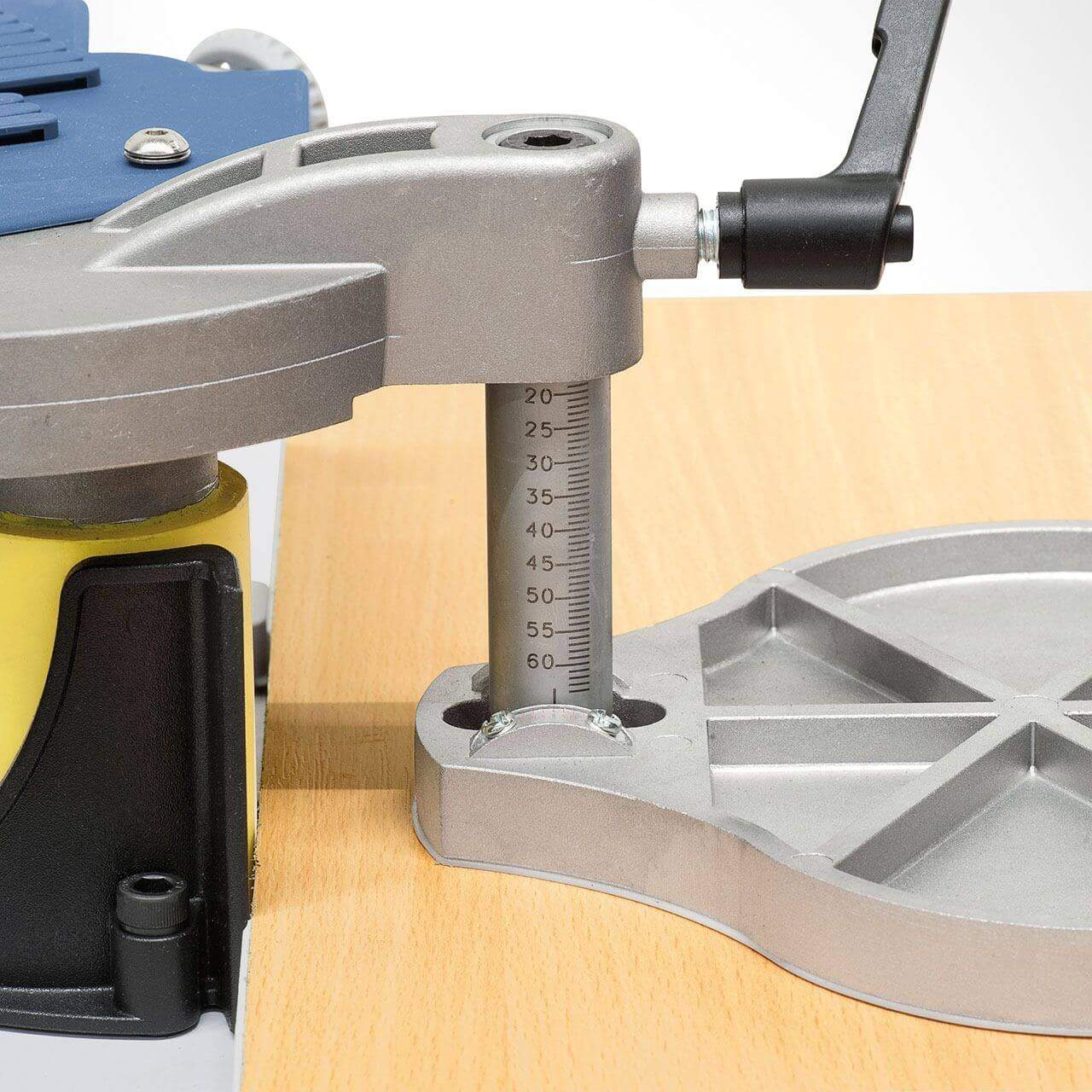

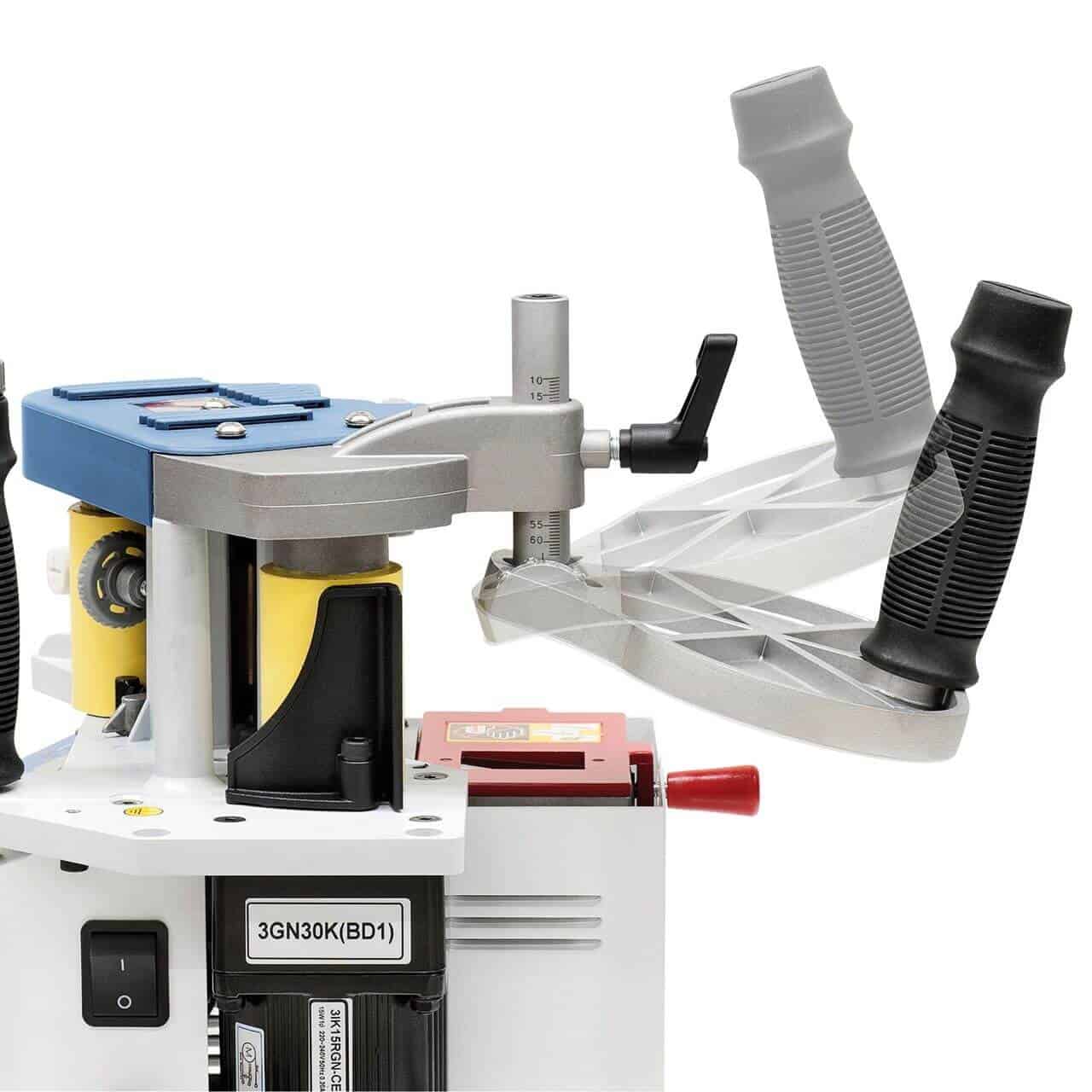

• 2 rubberized handles and a height-adjustable guide plate ensure fatigue-free work.
• Comfortable application of edging material thanks to continuously adjustable feed speed.

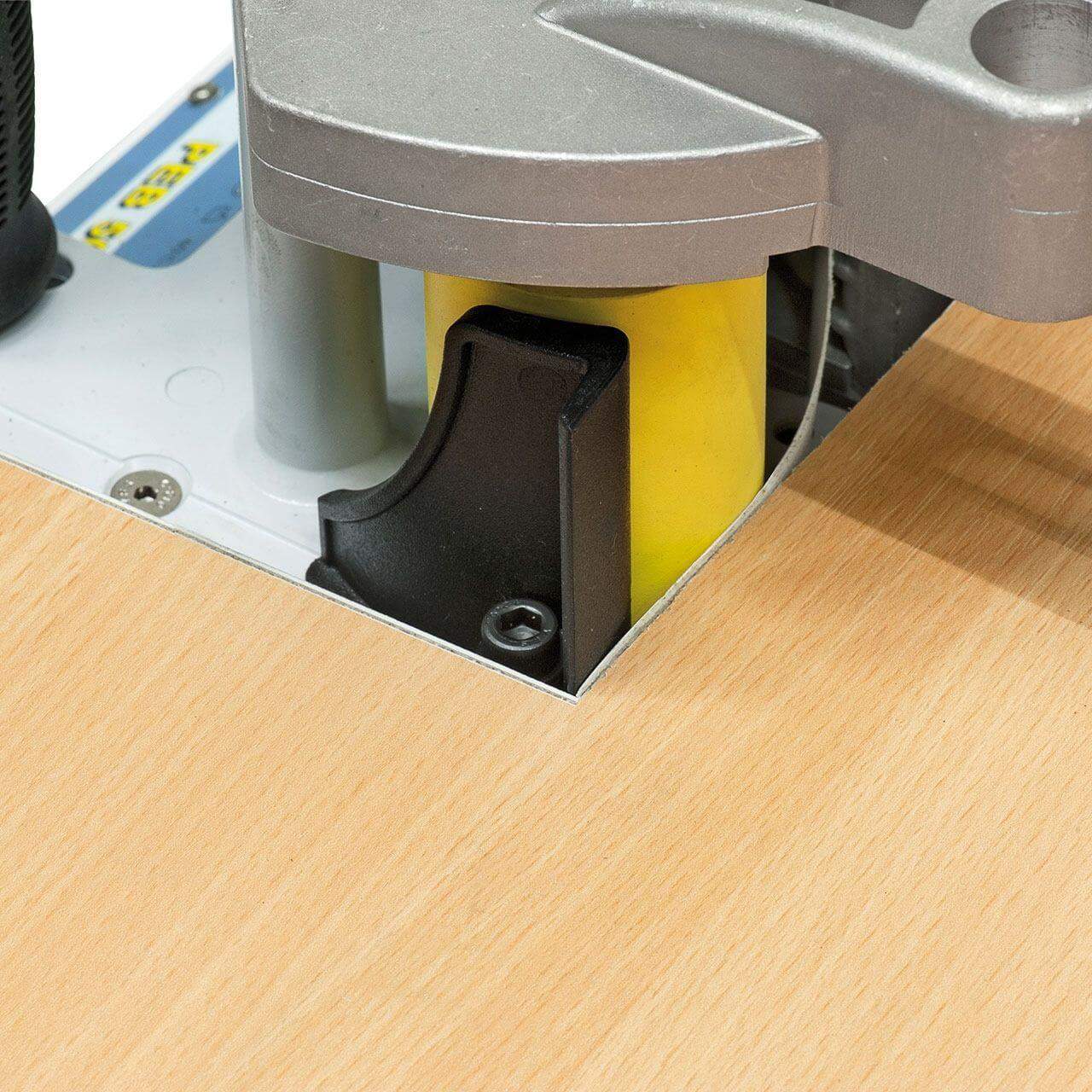

• Ideal for gluing straight and curved pieces, minimum internal radius 25 mm.
• Continuous temperature regulation and a short warm-up time ensure rapid readiness for use and high operating comfort.
• Extremely economical, requires no edging material with pre-applied adhesive.
• Ideal for working on ABS, PVC, melamine and veneer edges.

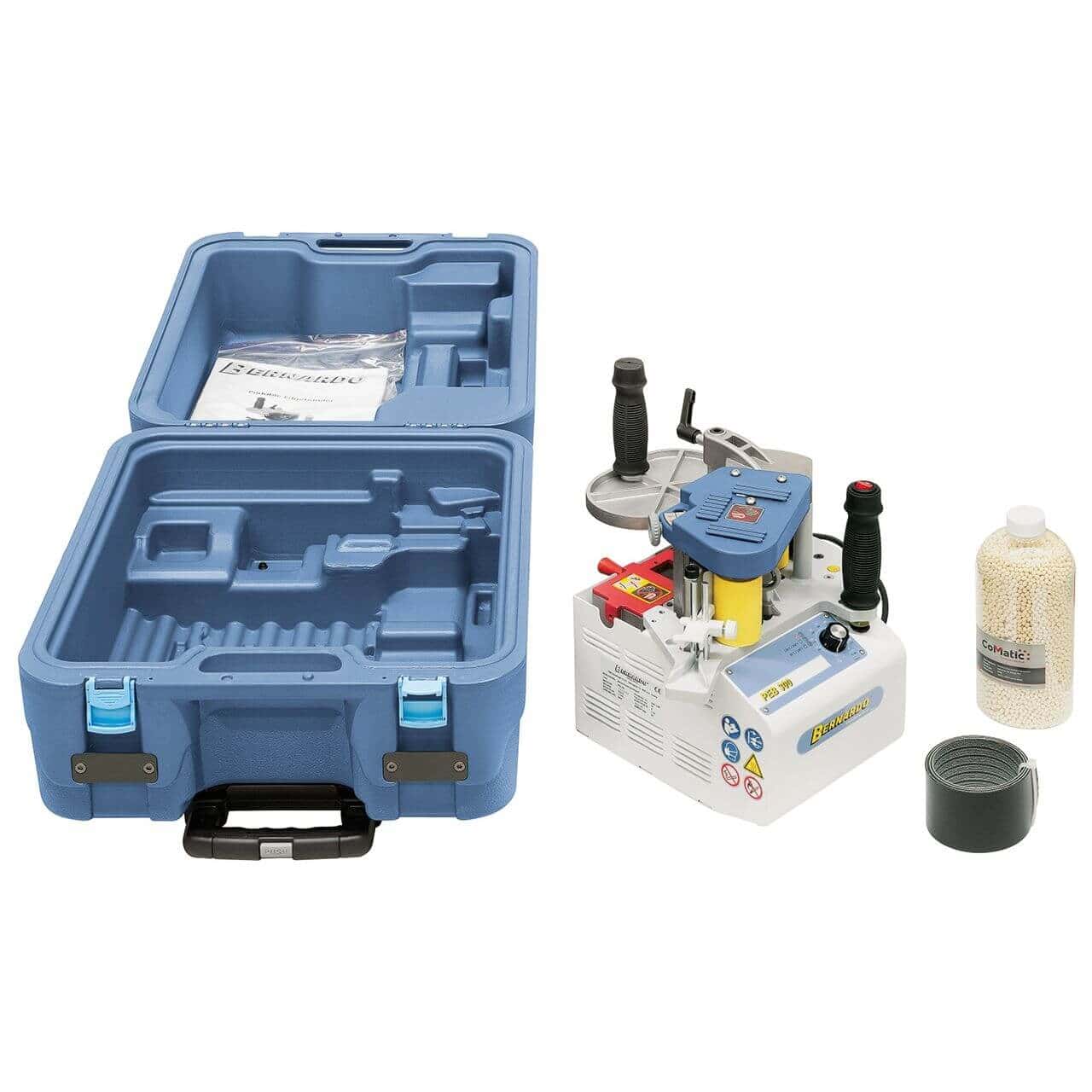

Standard accessories:

• Adhesive granules 0.8 kg.
• Continuous feed adjustment.

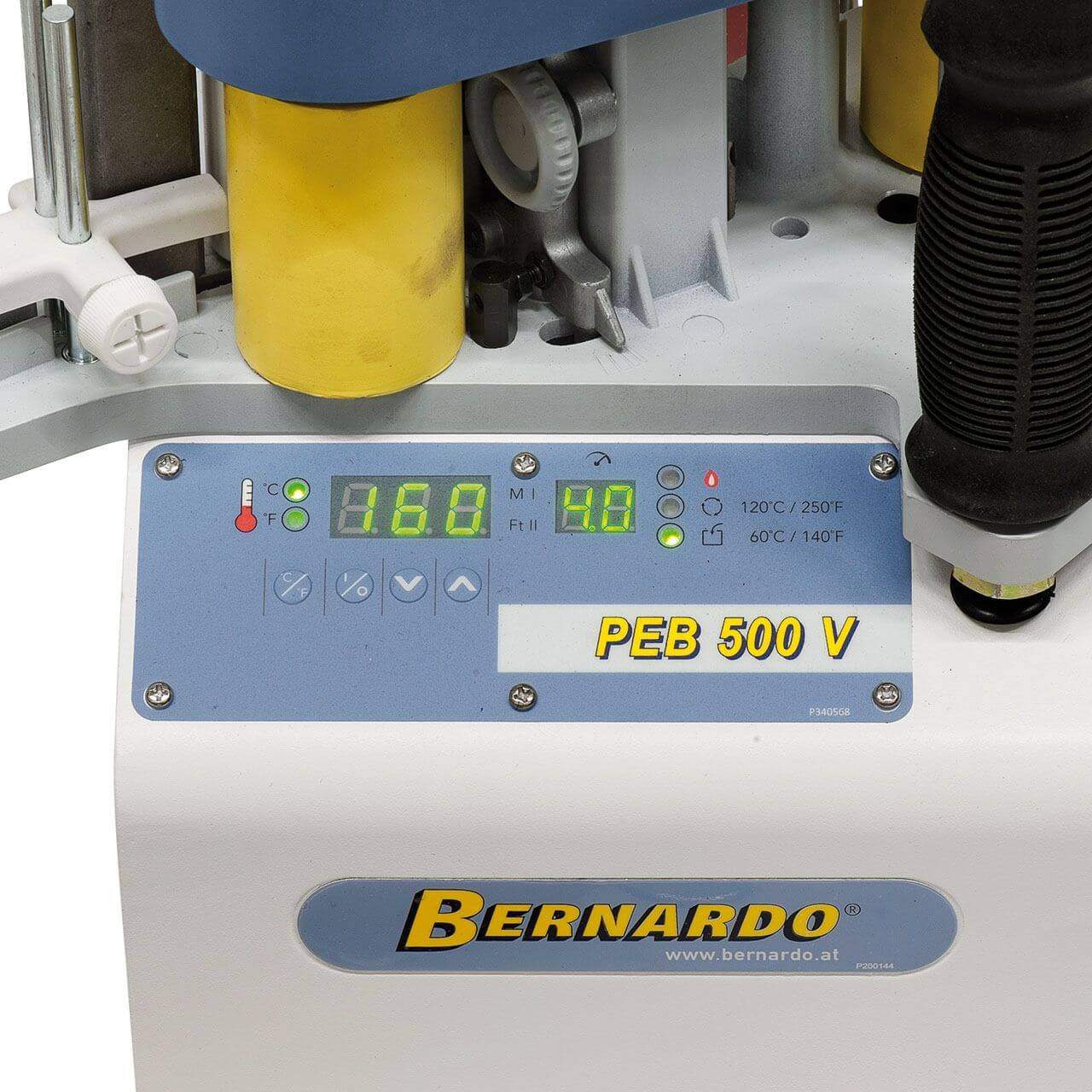

• Digital temperature regulation.

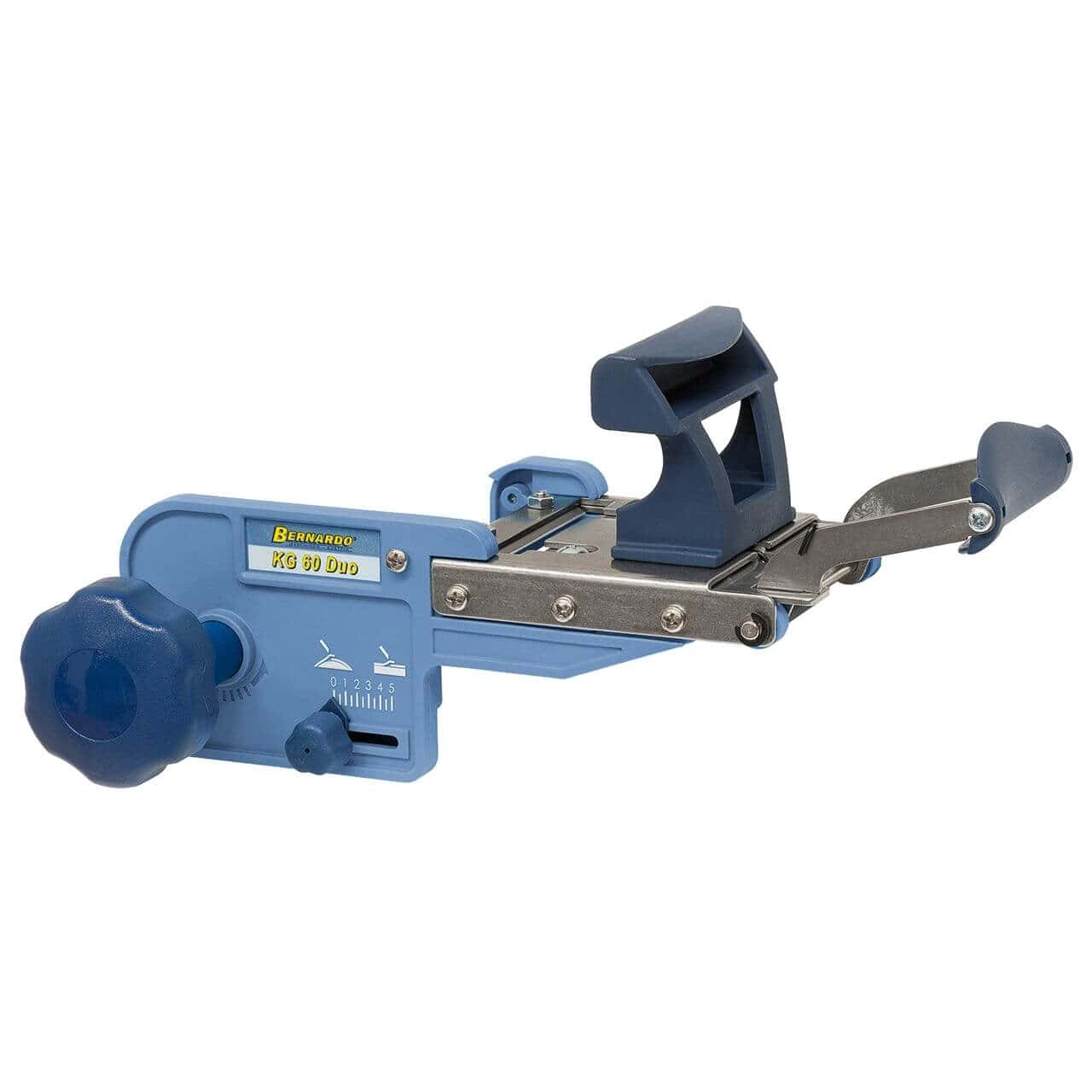

• KG 60 Duo edge trimmer.

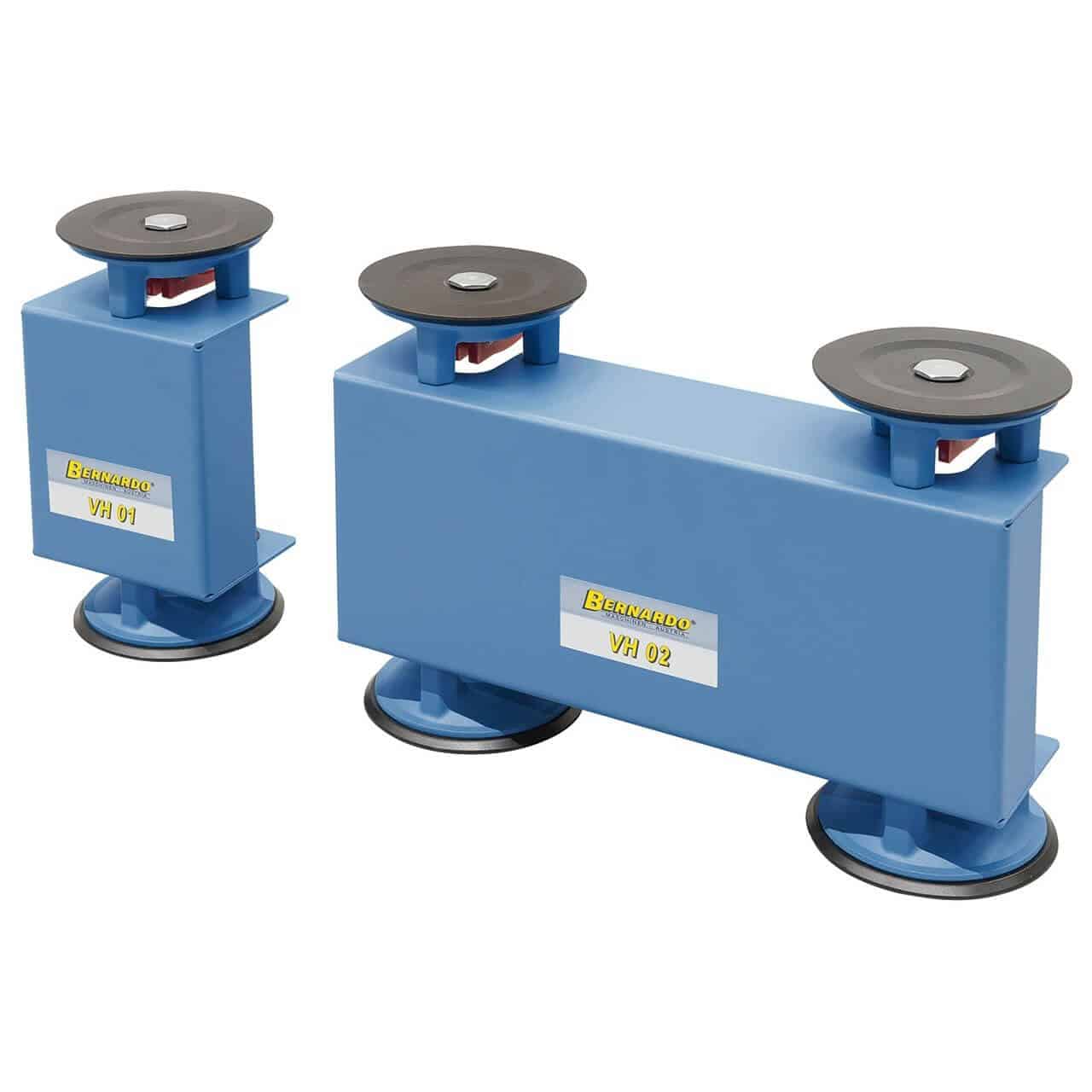

• Vacuum clamping set VH 03.

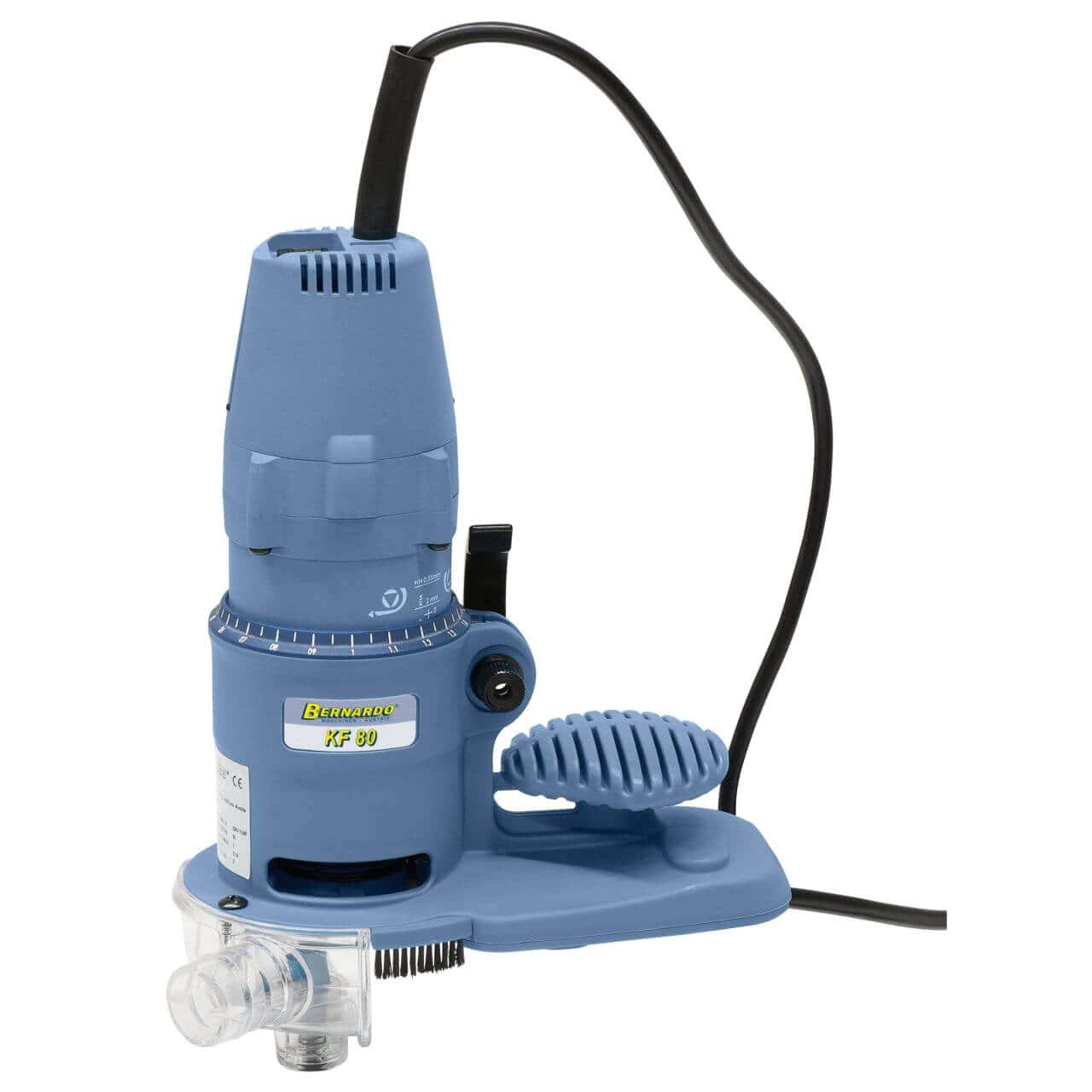

• Electric edge trimmer KF 80.

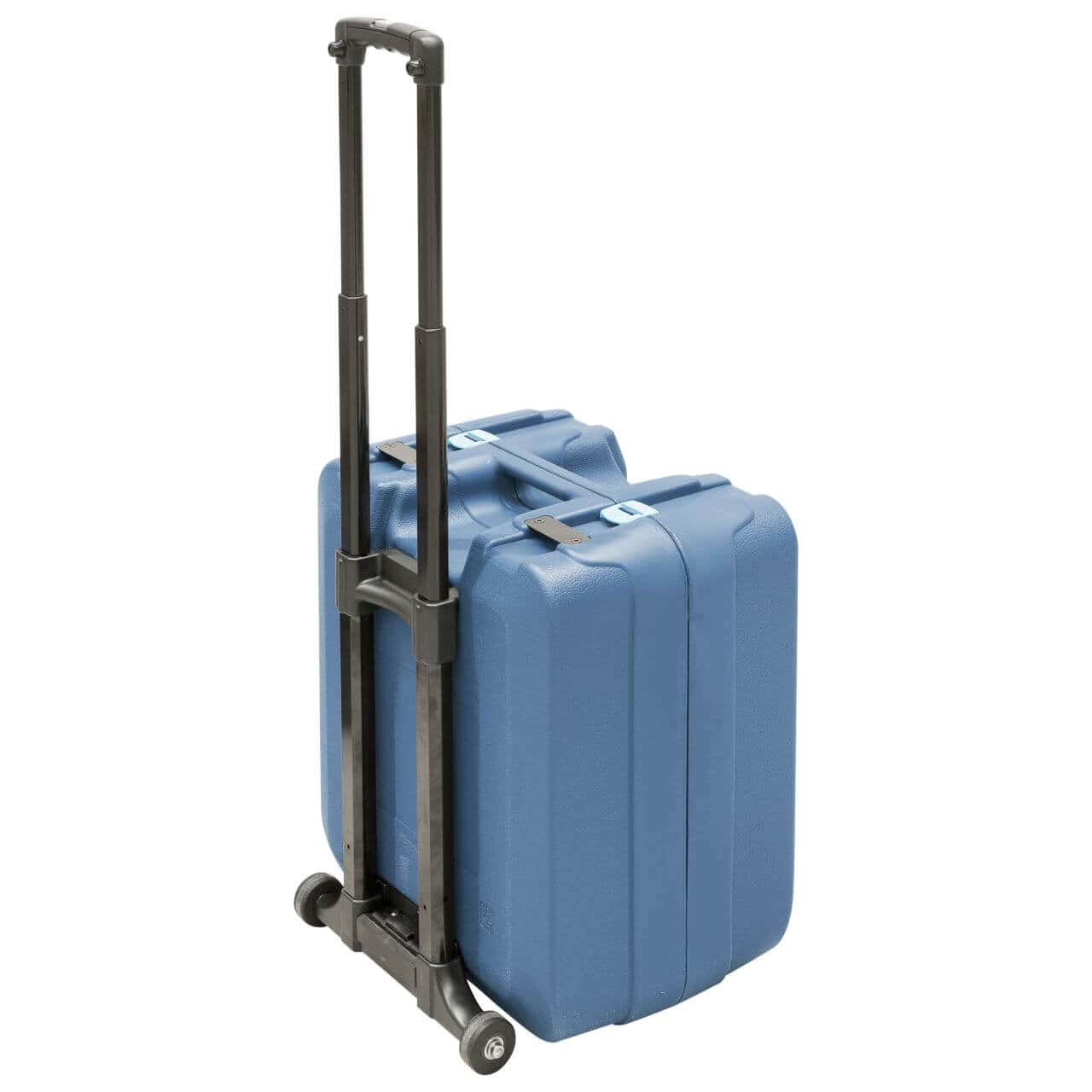

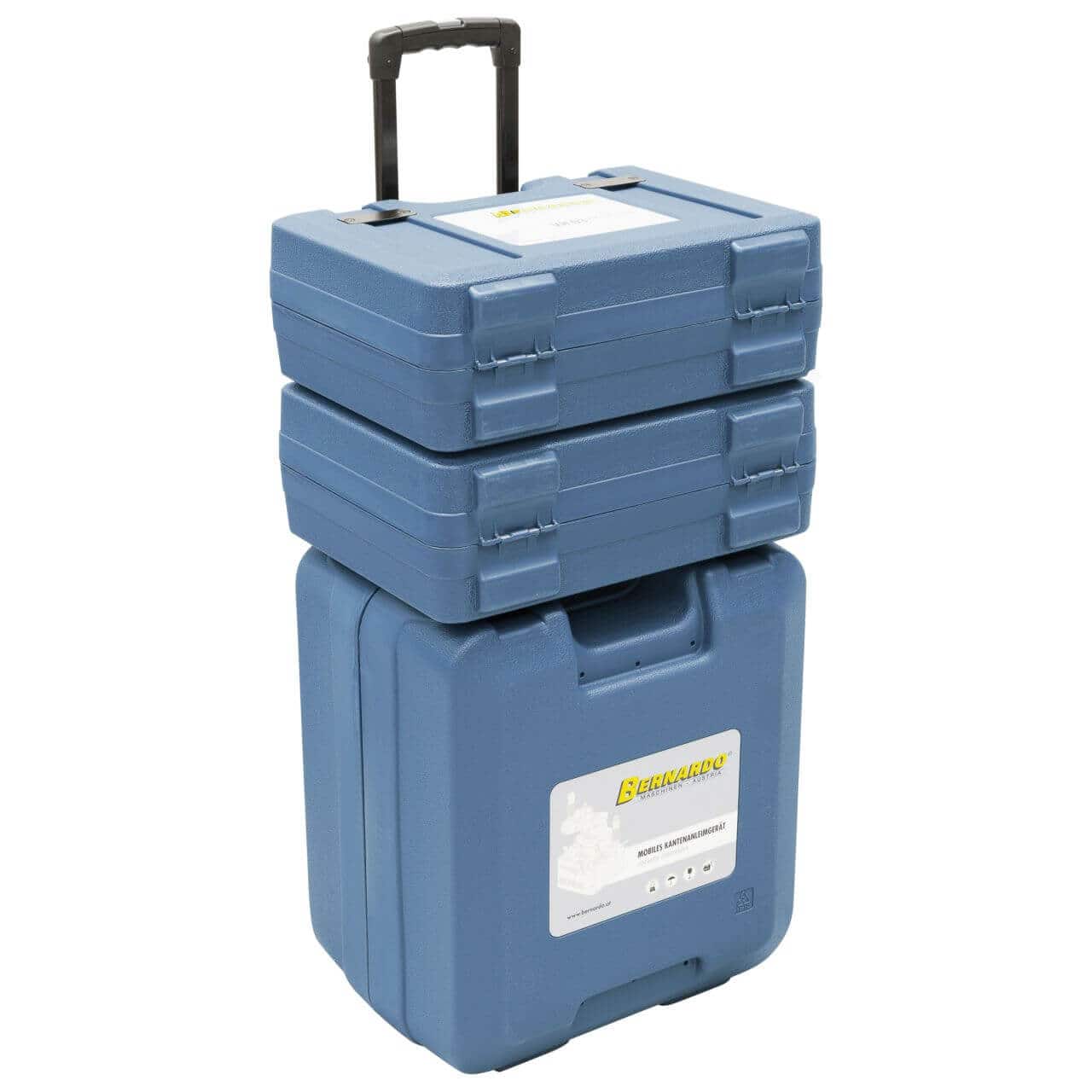

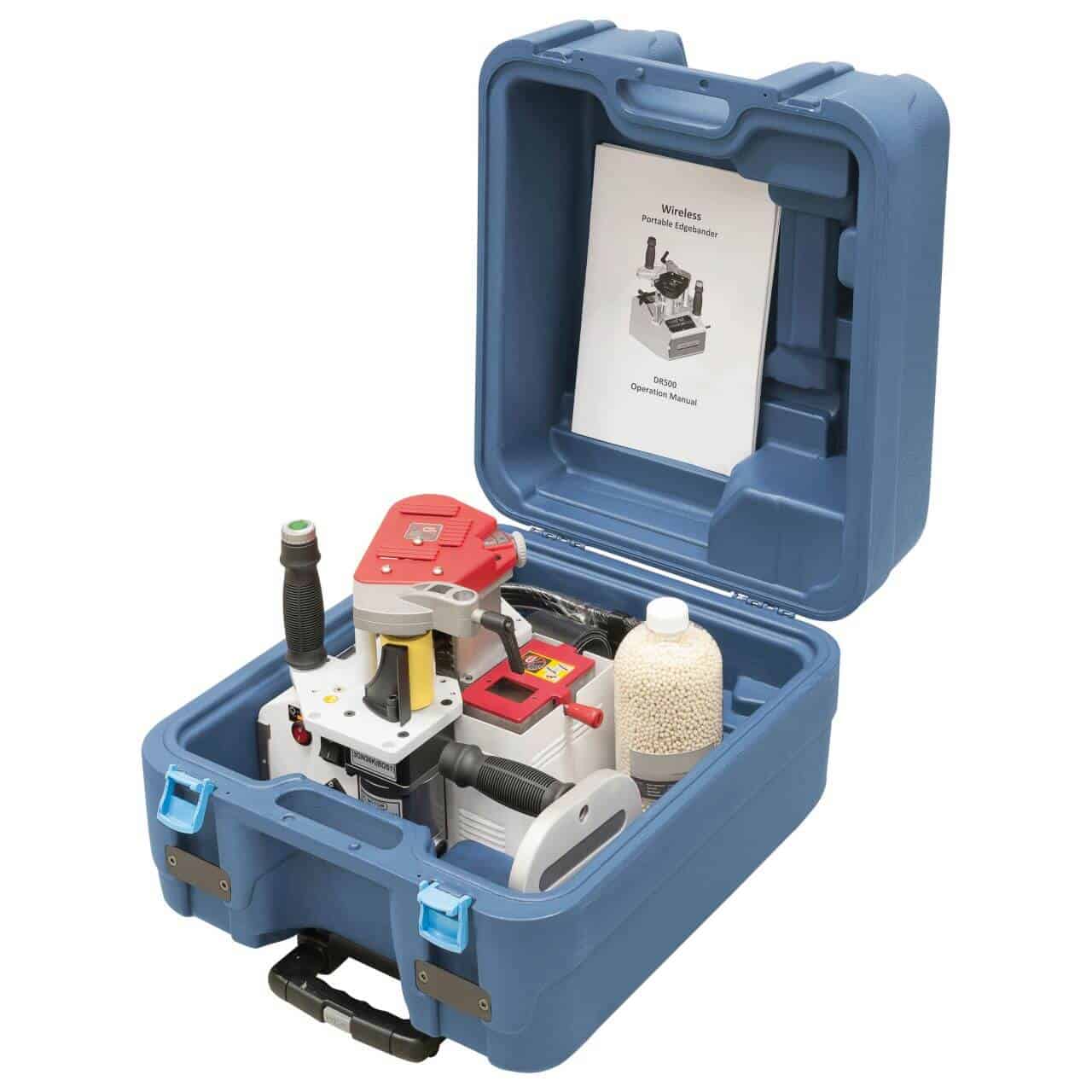

• 3x transport boxes.
• Chassis.

Characteristic	Specification
Edge thickness (PVC)	0.3 - 3.0 mm
Min./max. edge height	10 - 65 mm
Warm-up time	4 min (120°)
Working Temperature - Phase 1	120 - 200 °C
Working temperature - Phase 2	80 - 155 °C
Glue basin	400 ml
Feed rate	2 - 6 m/min
Engine power	855 W
Supply voltage	230 V
Machine dimensions (L x W x H)	340 x 300 x 350 mm
Weight	Approximately 8.1 kg
