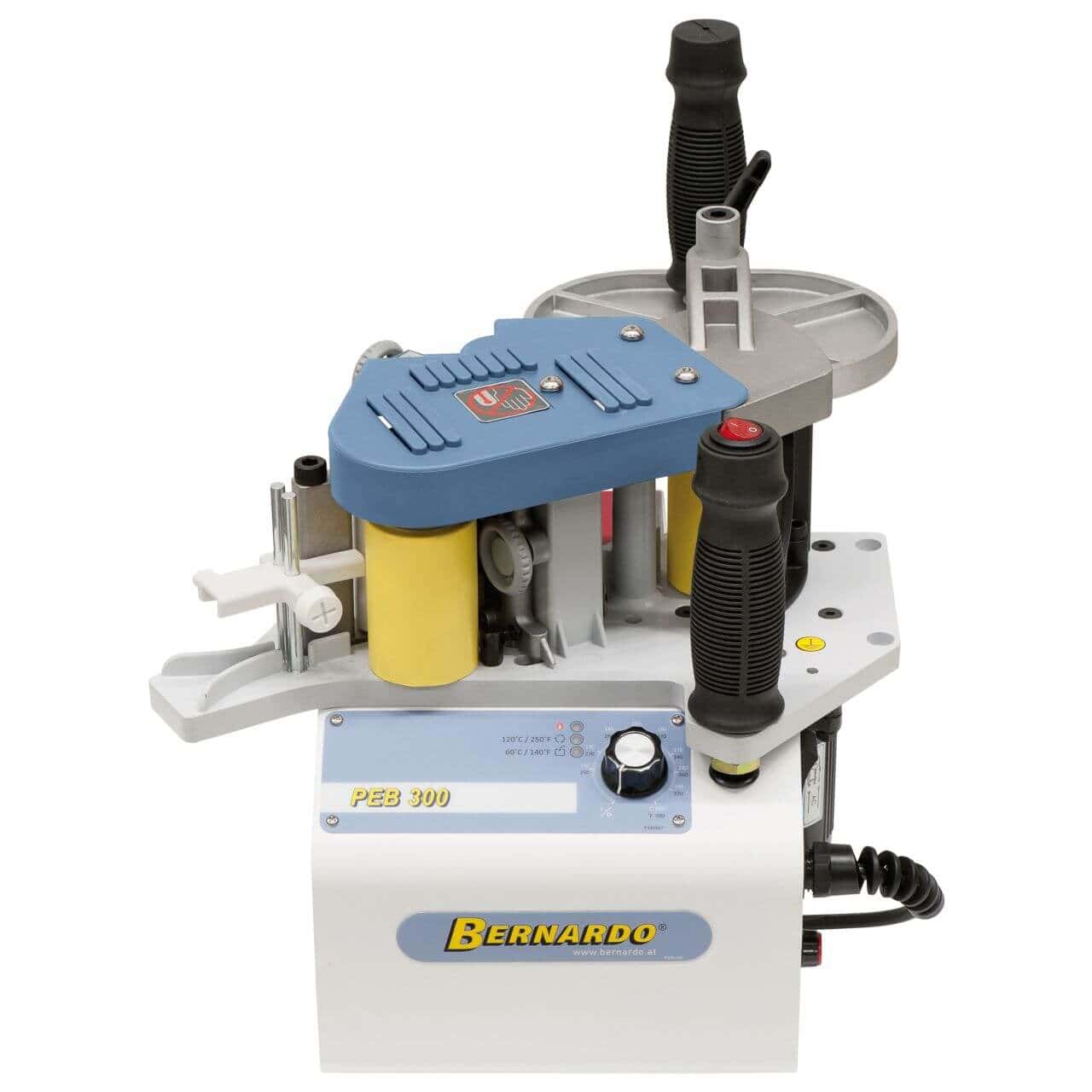

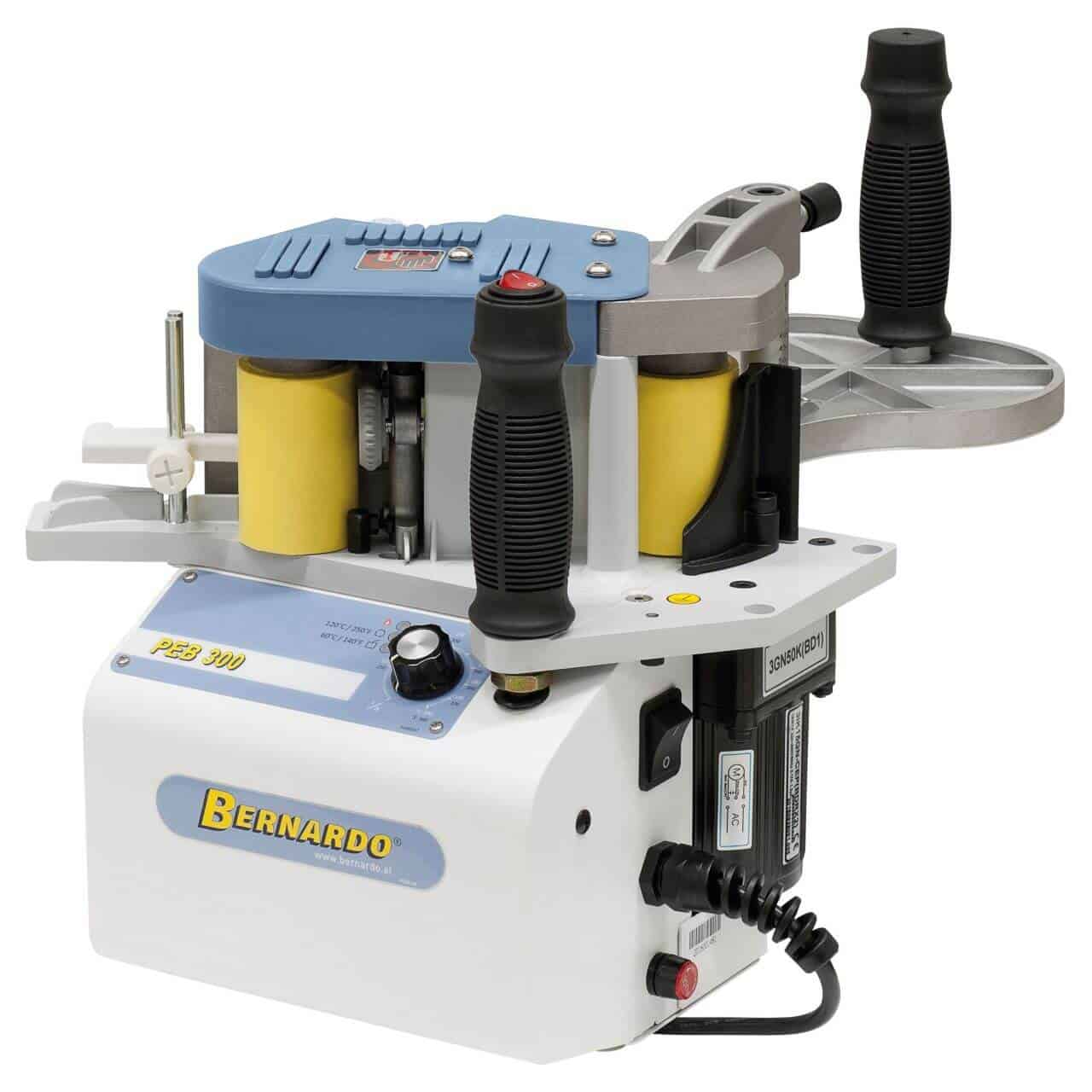

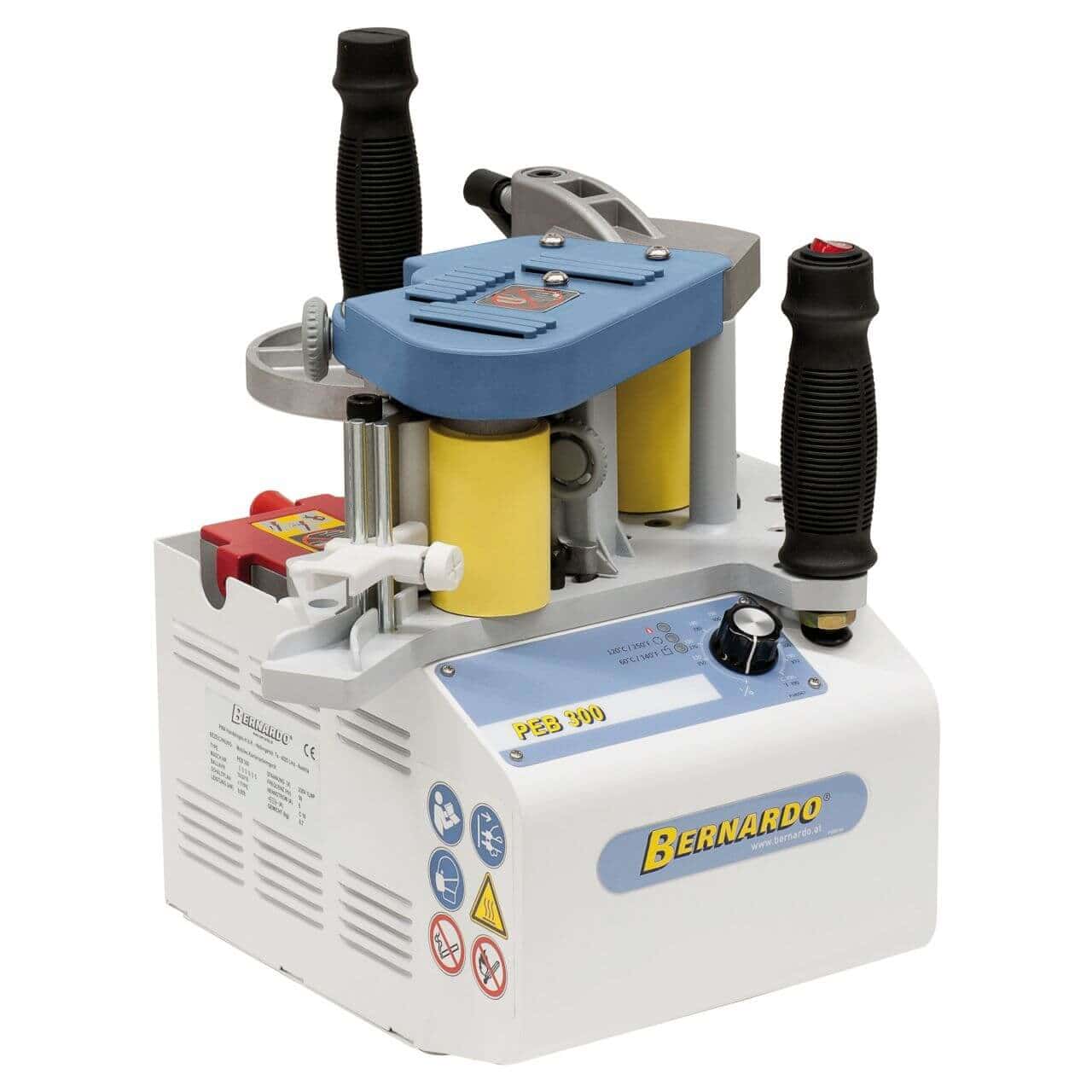

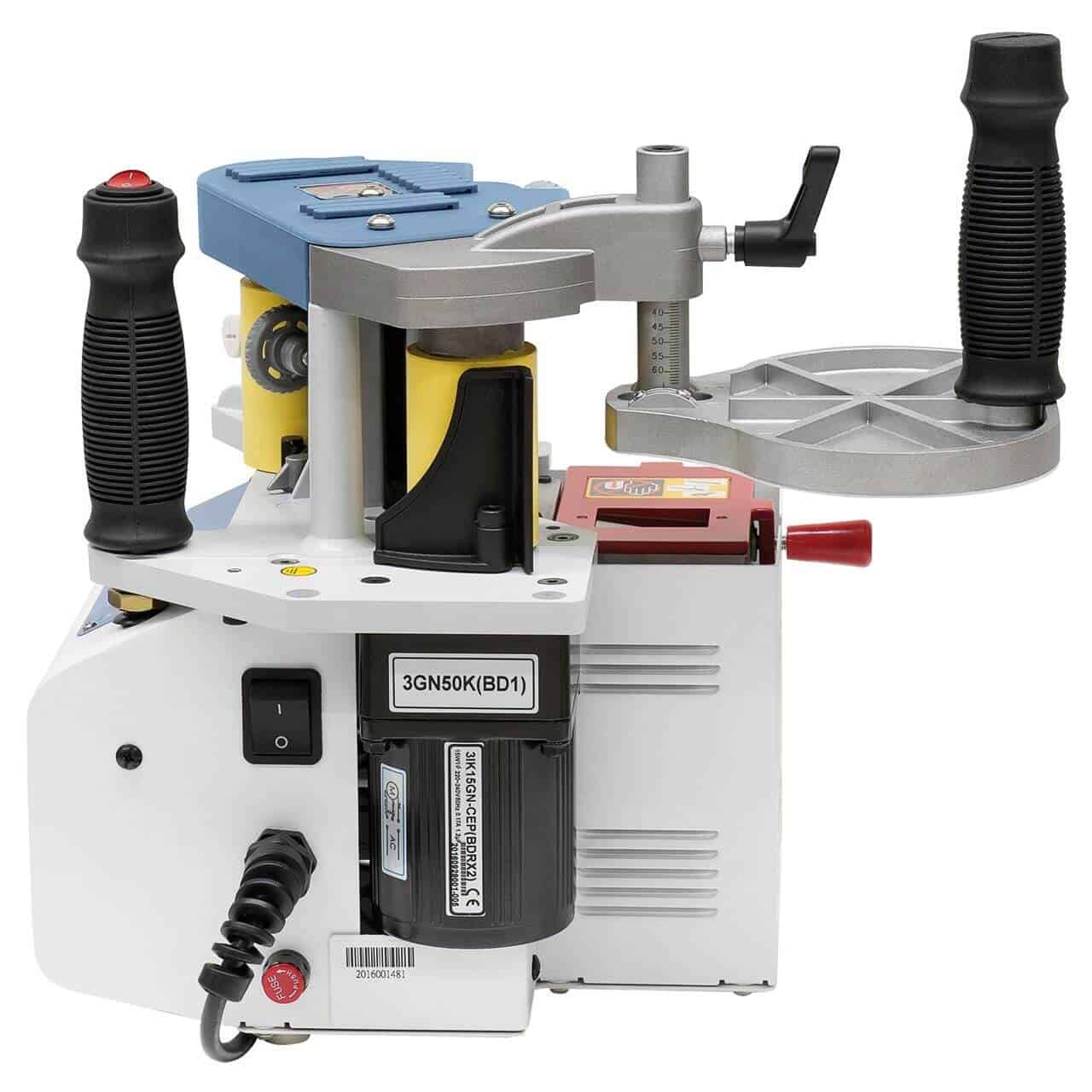

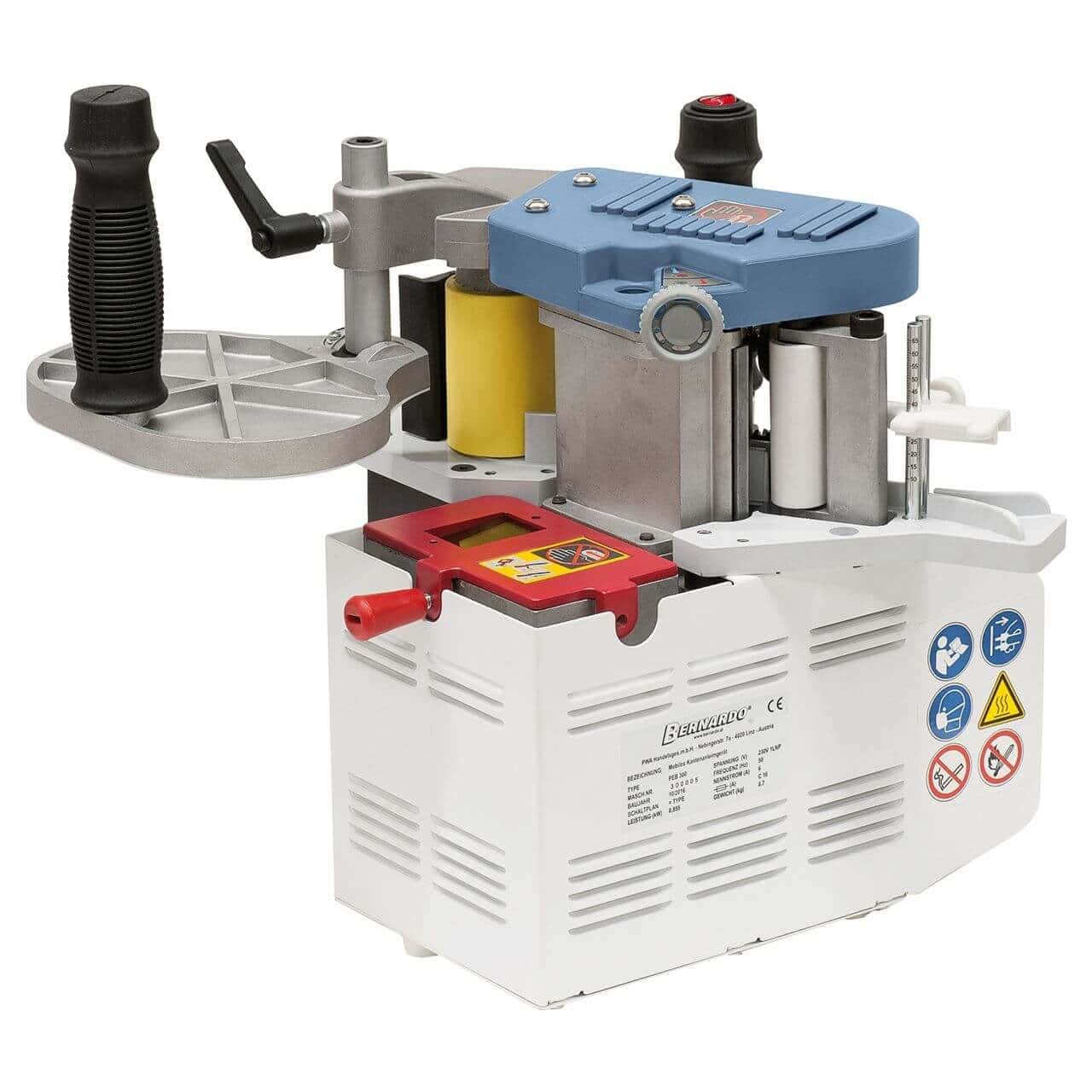

PEB 300 S mobile edge banding machine

The PEB 300 model is an economical edge banding machine suited to the needs of professional users. This model combines the features of a fixed edge banding machine with the convenience of a mobile unit.

Property

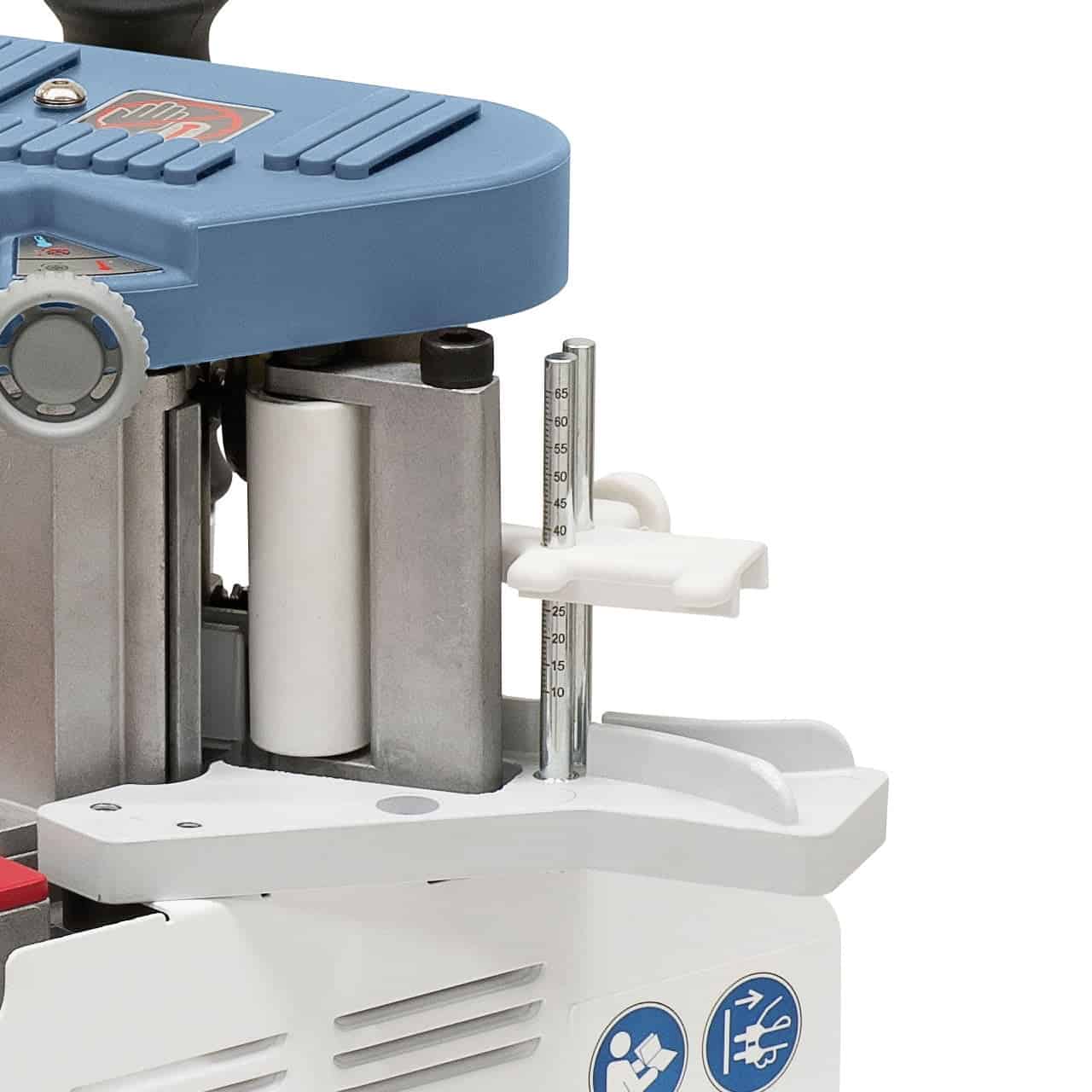

• Adjustable guide system for use with edge thicknesses from 0.3 to 3 mm or edge heights from 10 to 65 mm
• 2 rubberized handles and a height-adjustable guide plate ensure fatigue-free work
• Ideal for gluing straight and curved pieces, minimum internal radius 25 mm
• Extremely economical, requires no edge material with pre-applied adhesive
• Ideal for working on ABS, PVC, melamine and veneer edges
• The adhesive is applied directly to the edge material
• On-off switch directly on the handle for easy use
• Suitable for mobile or stationary use

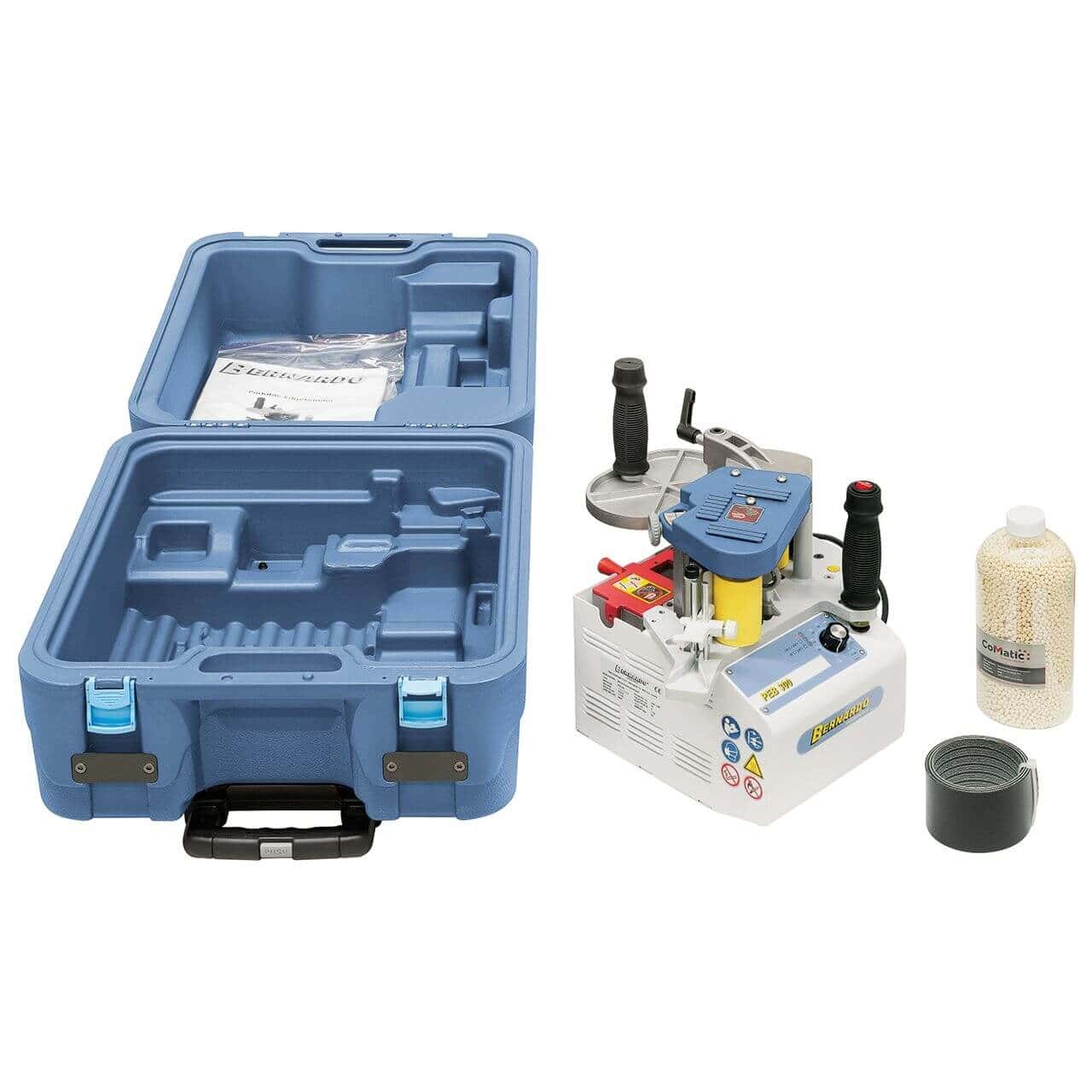

Standard accessories

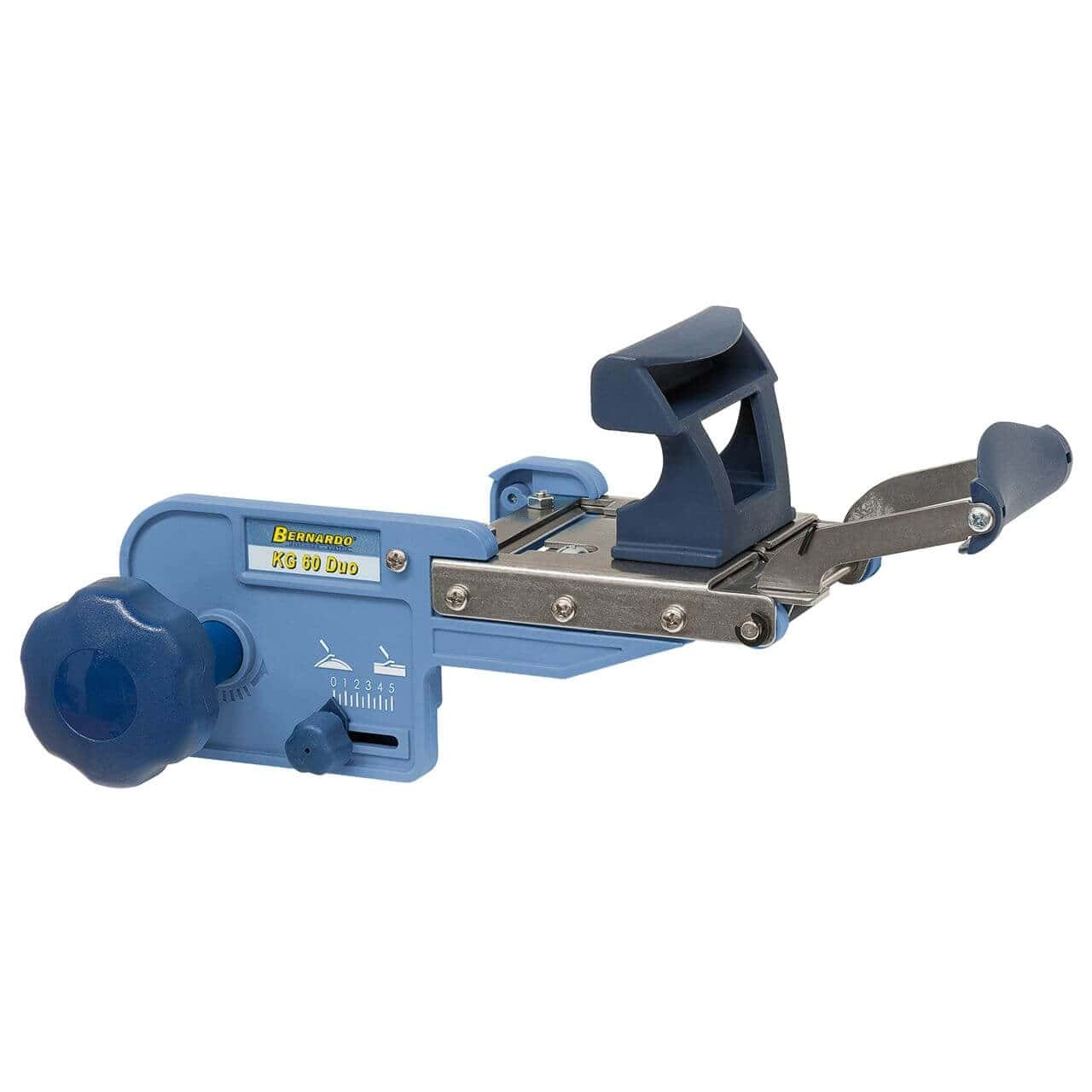

• KG 60 Duo Edge Bander
• Adhesive granules 0.8 kg

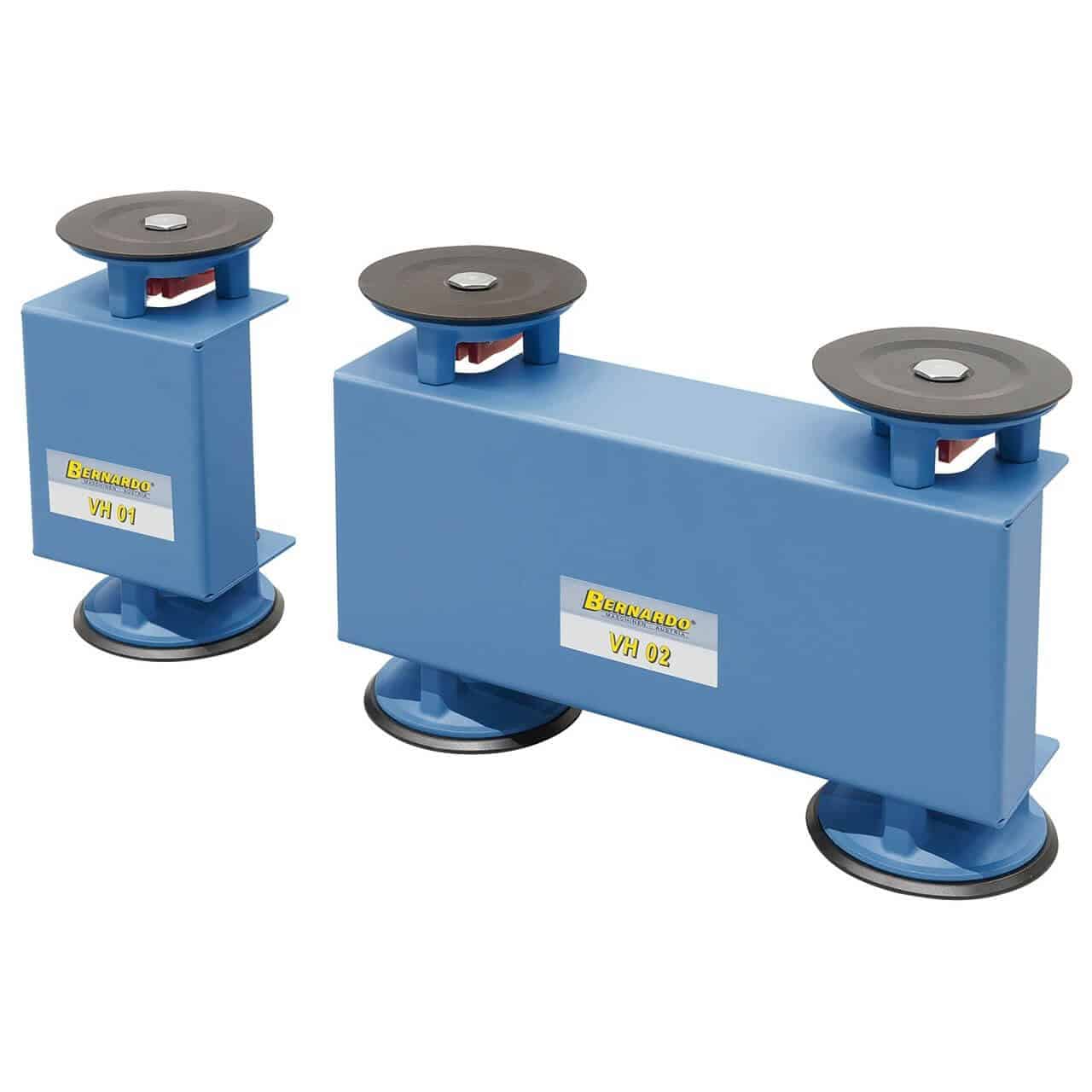

• Vacuum clamping set VH 03

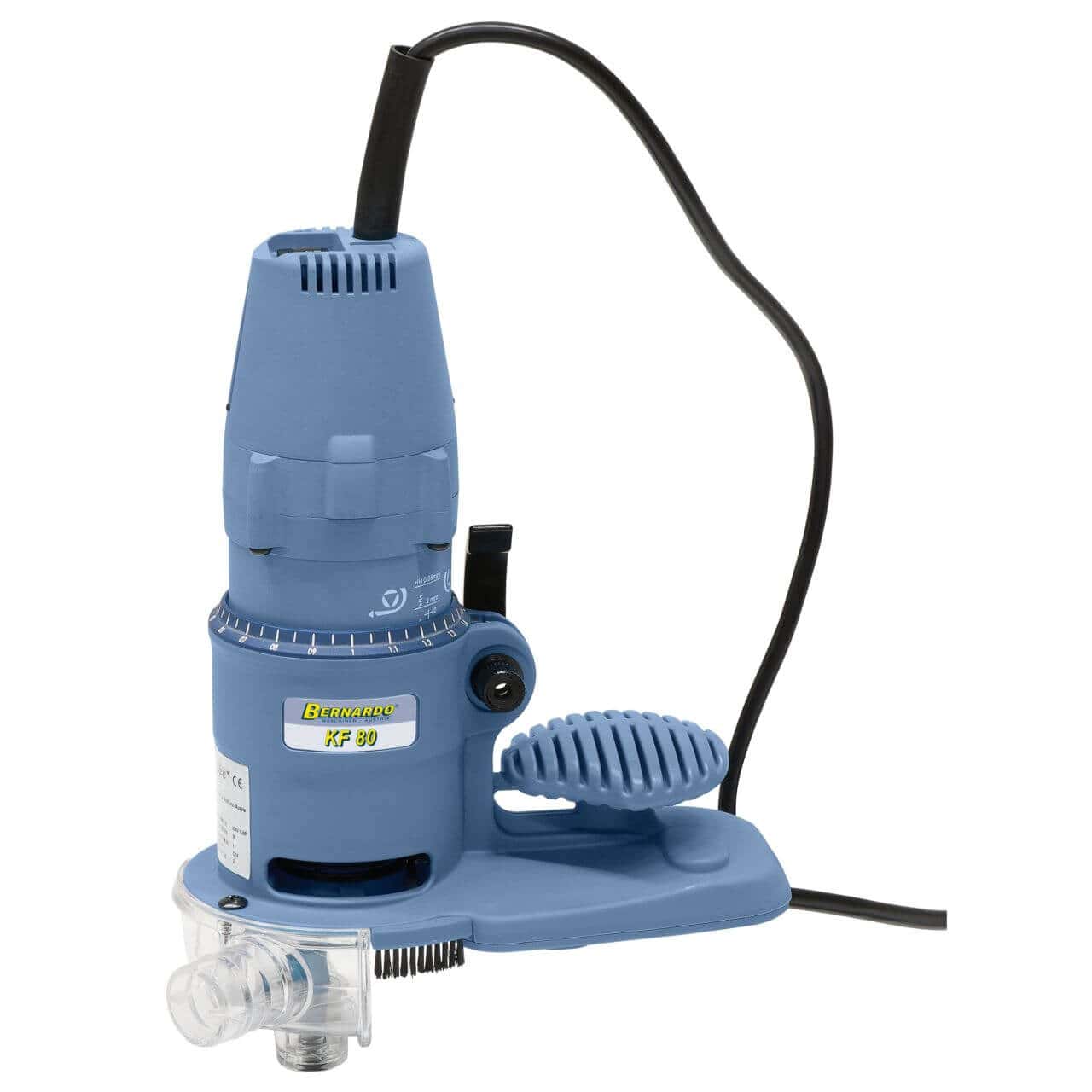

• Electric edge trimmer KF 80

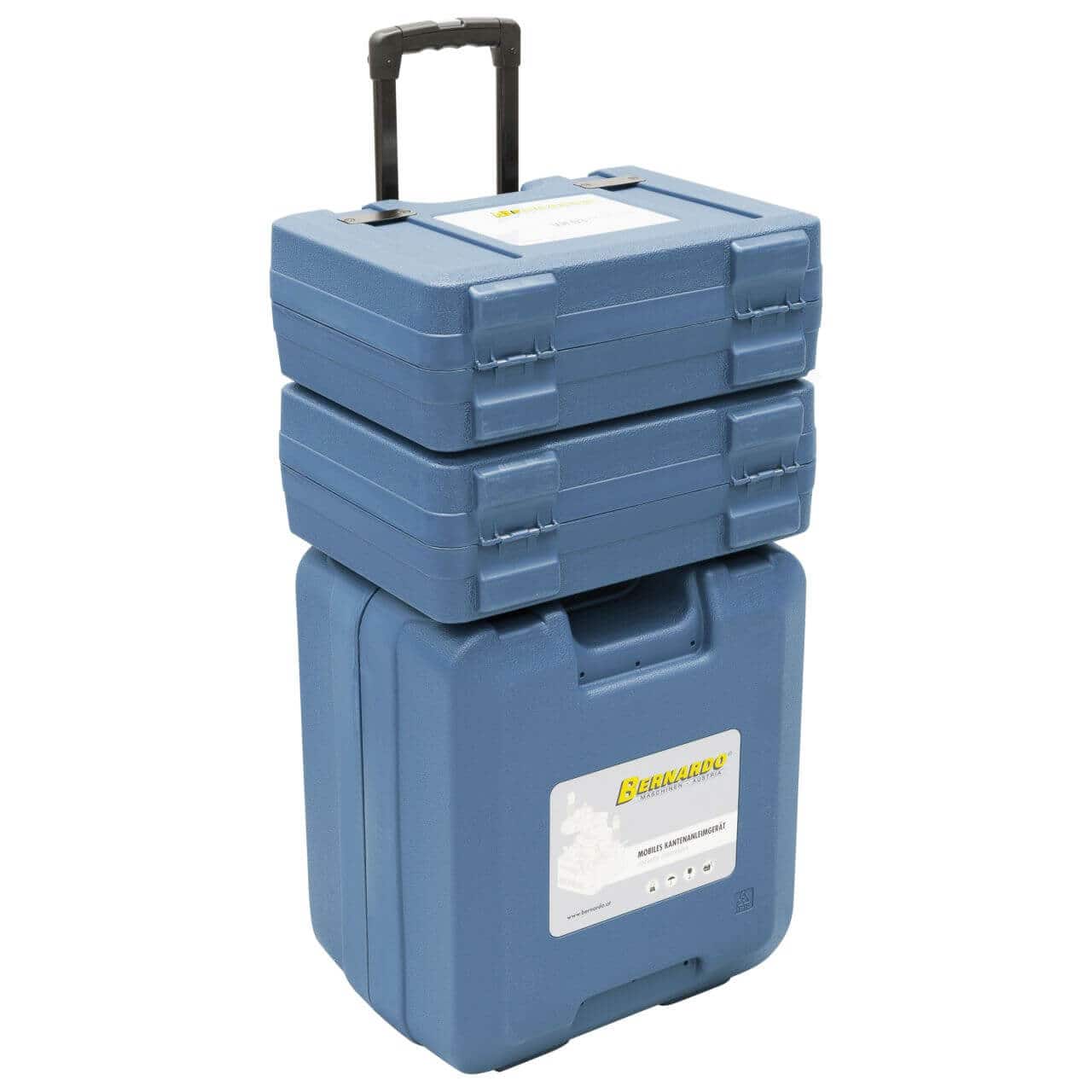

• 3x transport boxes
• Chassis

technical specifications

• Edge thickness (PVC) 0.3 - 3.0 mm
• Edge height min./max. 10 - 65 mm
• Heating time 4 min (120°)

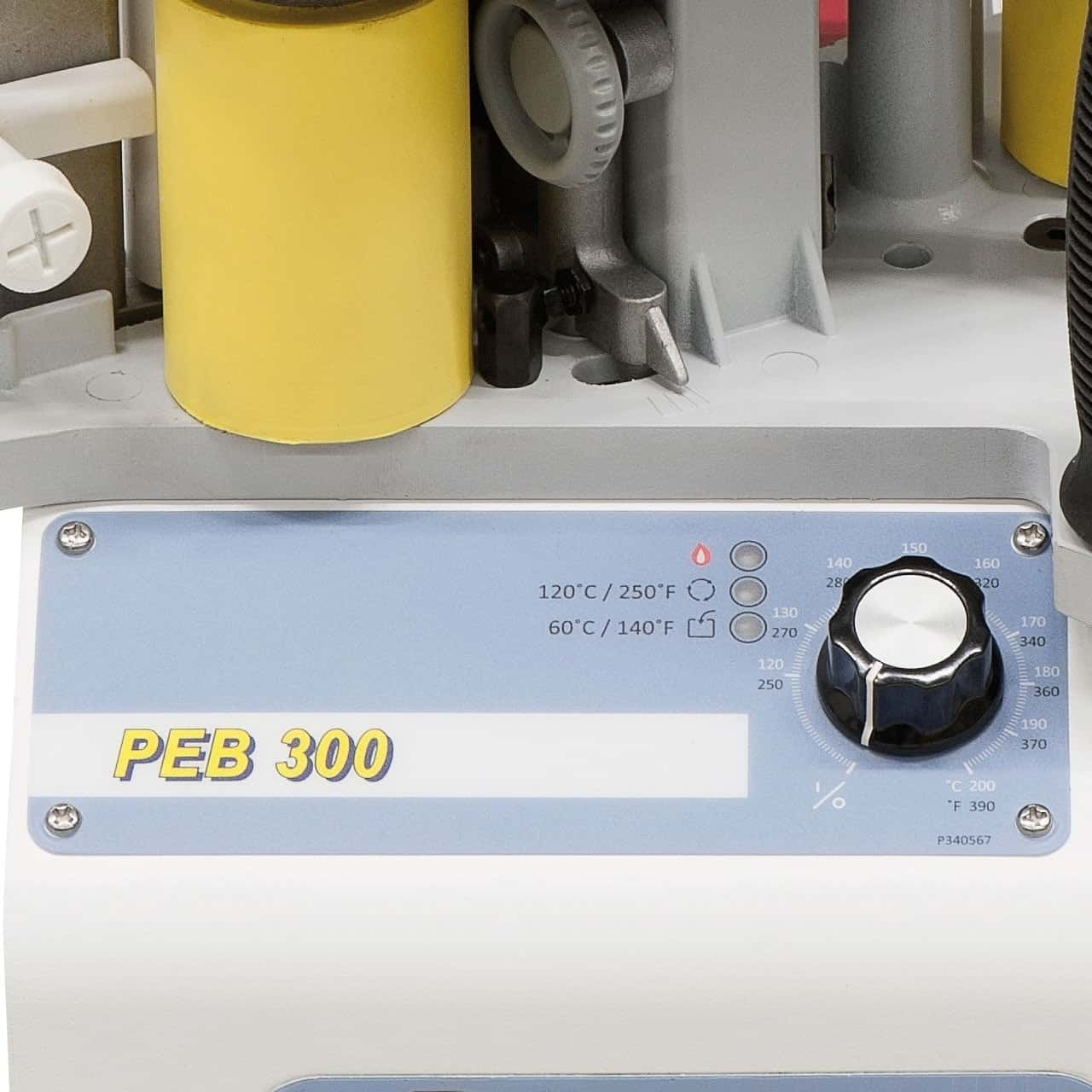

• Working temperature 120 - 200°

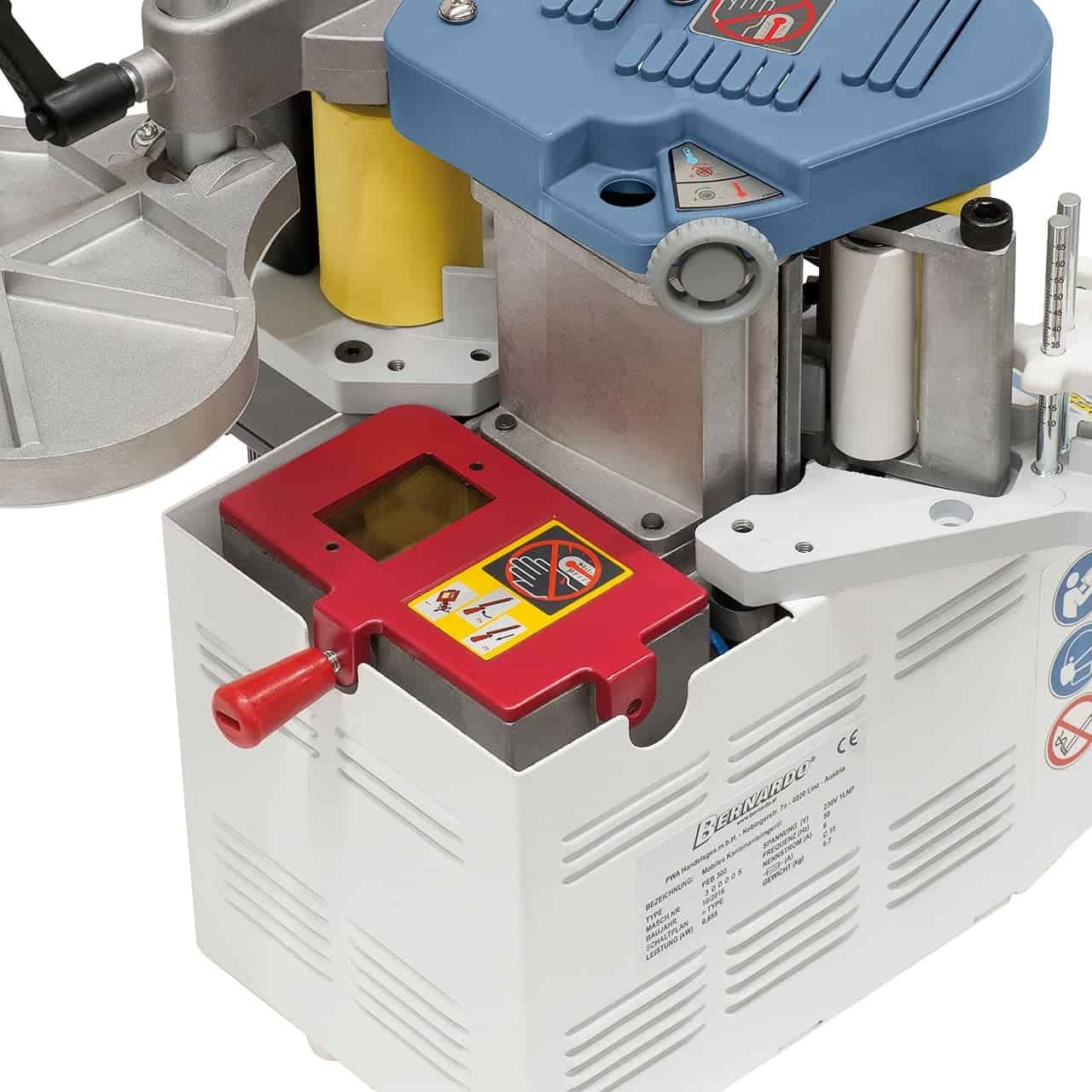

• 400 ml glue basin
• Feed speed 4 m/min
• Motor power 855 W
• Power supply voltage 230 V
• Machine dimensions (W x D x H) 340 x 300 x 350 mm
• Weight approximately 8.0 kg
