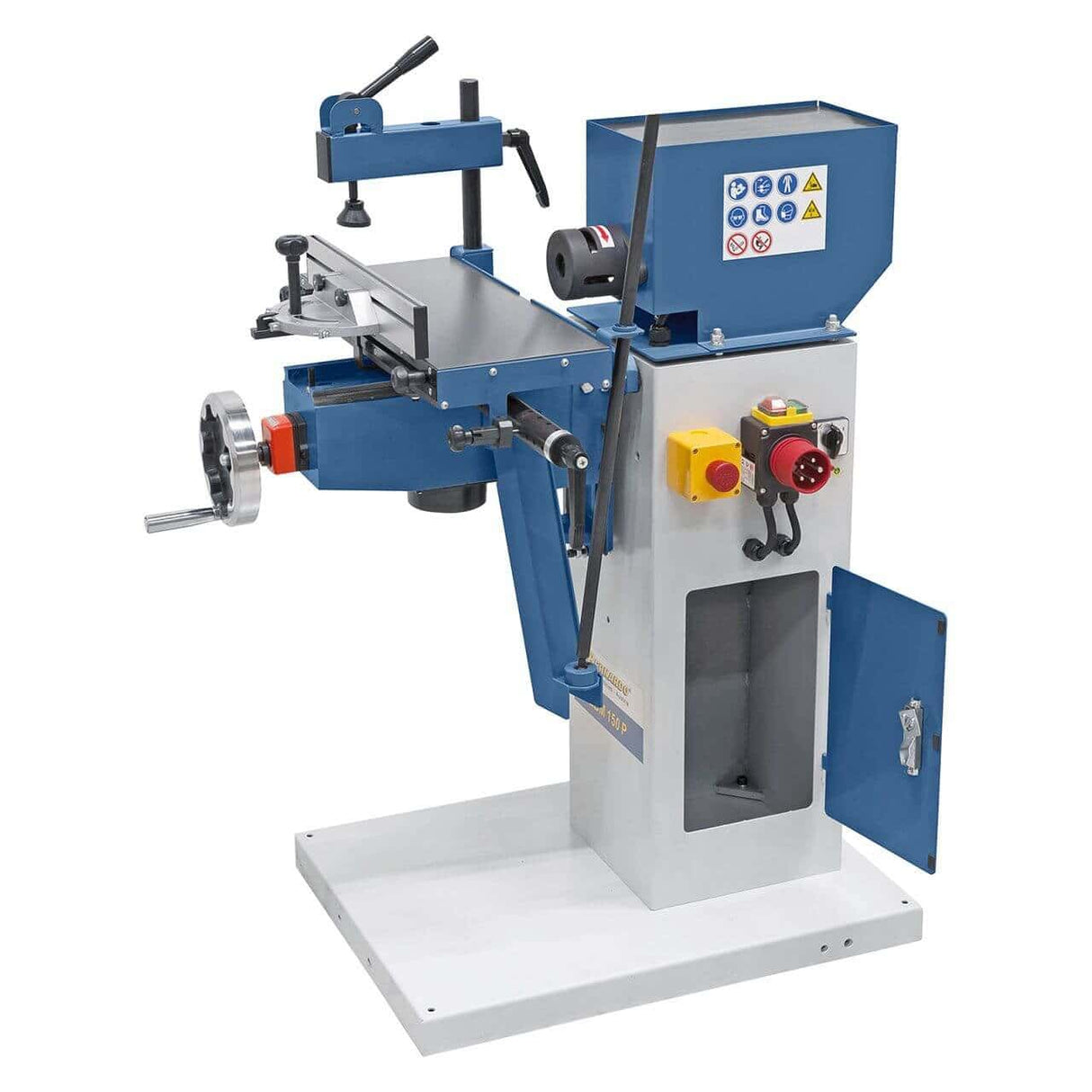

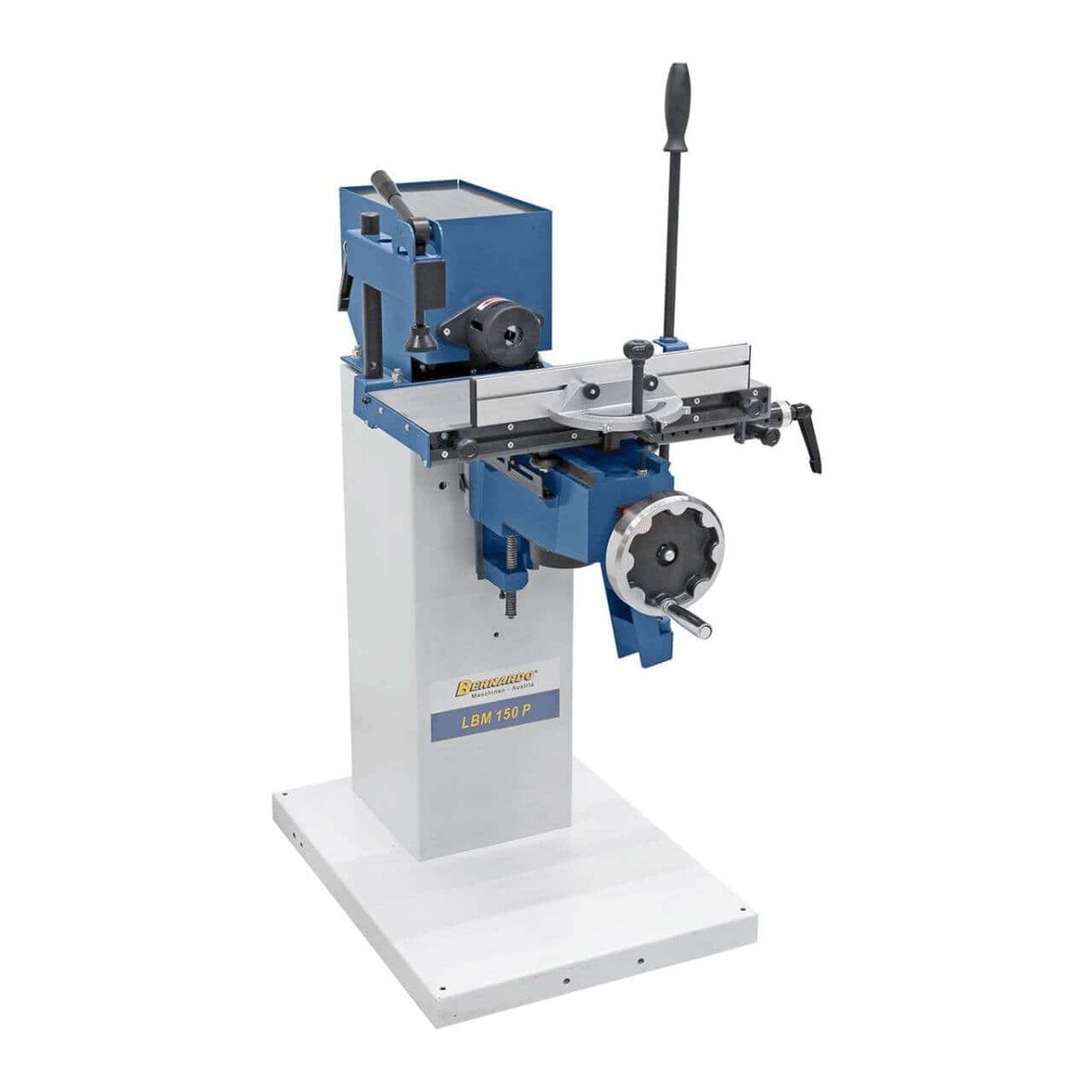

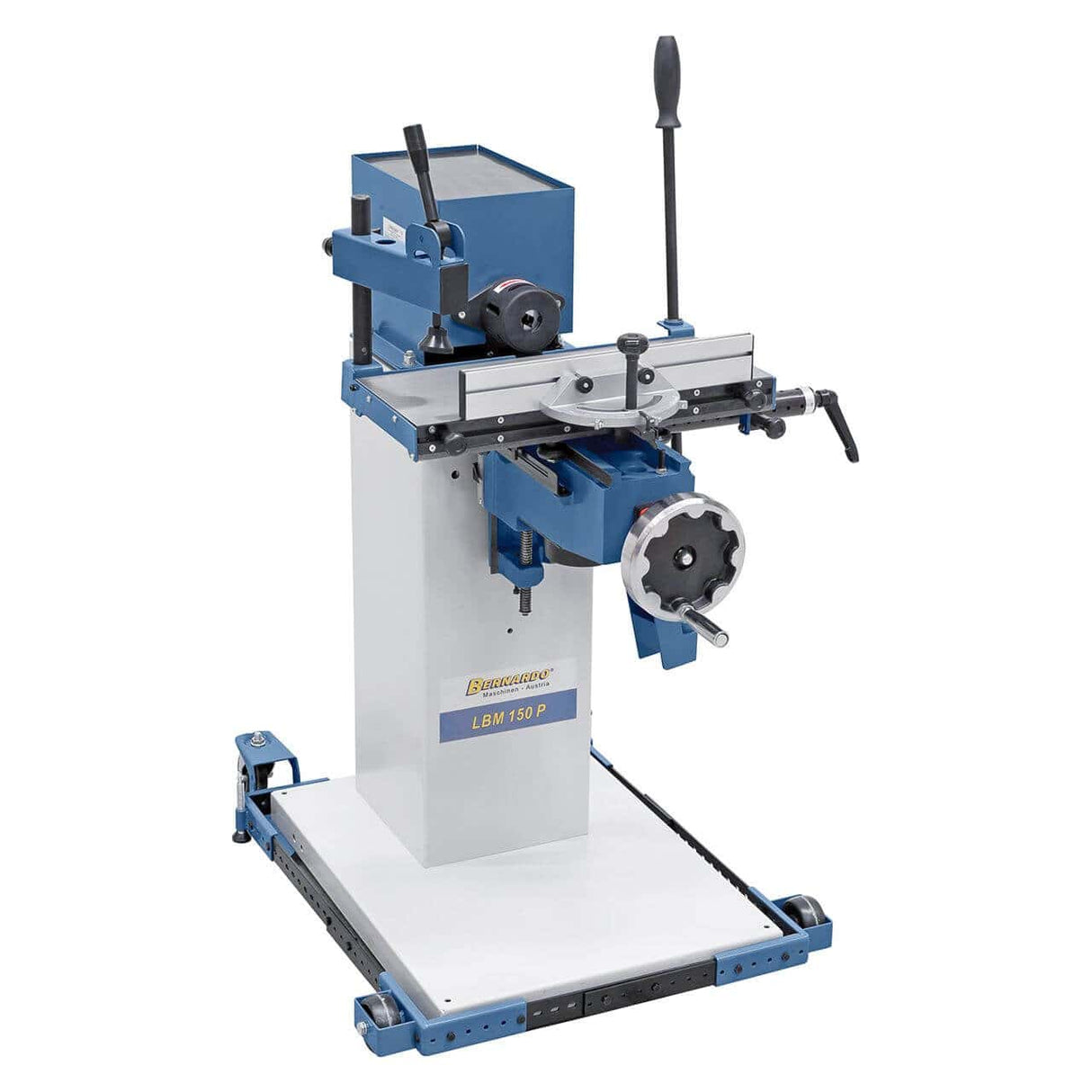

LBM 150 P / 400 V Mortising Machine – Compact, economical and ideal for craftsmen
The LBM 150 P is a compact and affordable mortising machine designed for craftsmen seeking reliability and functionality in a small space. Equipped with a Westcott spindle, precise table guidance, and a 4-position rotor assembly, it allows for accurate and safe work even in small workshops.
Main features
• Compact structure ideal for artisan carpentry workshops
• Westcott 0–16 mm chuck with guard included
• Right and left rotation of the spindle
• 4-position rotor group for precise multiple drilling

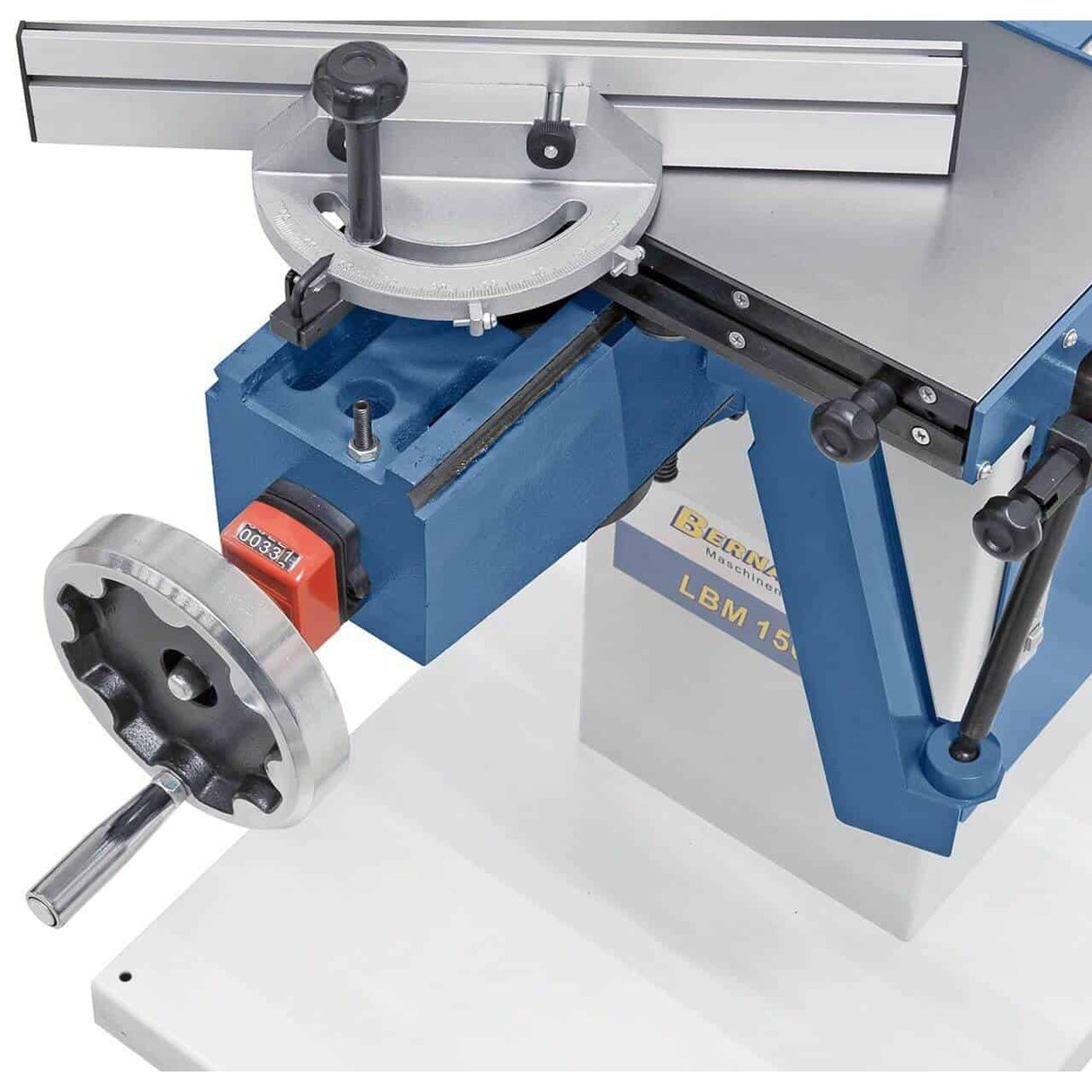

• Height adjustment with digital readout

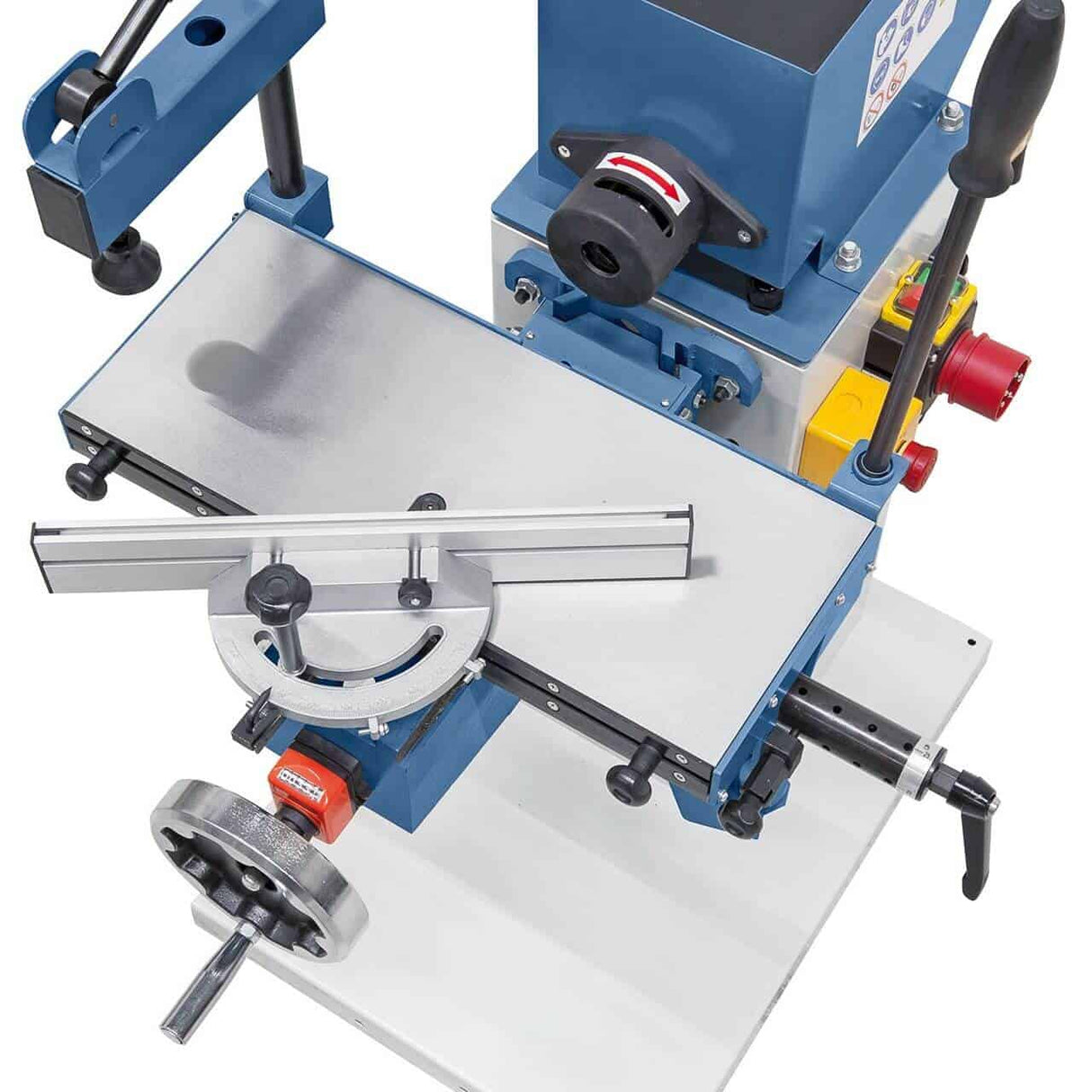

• Roller guide for smooth table sliding

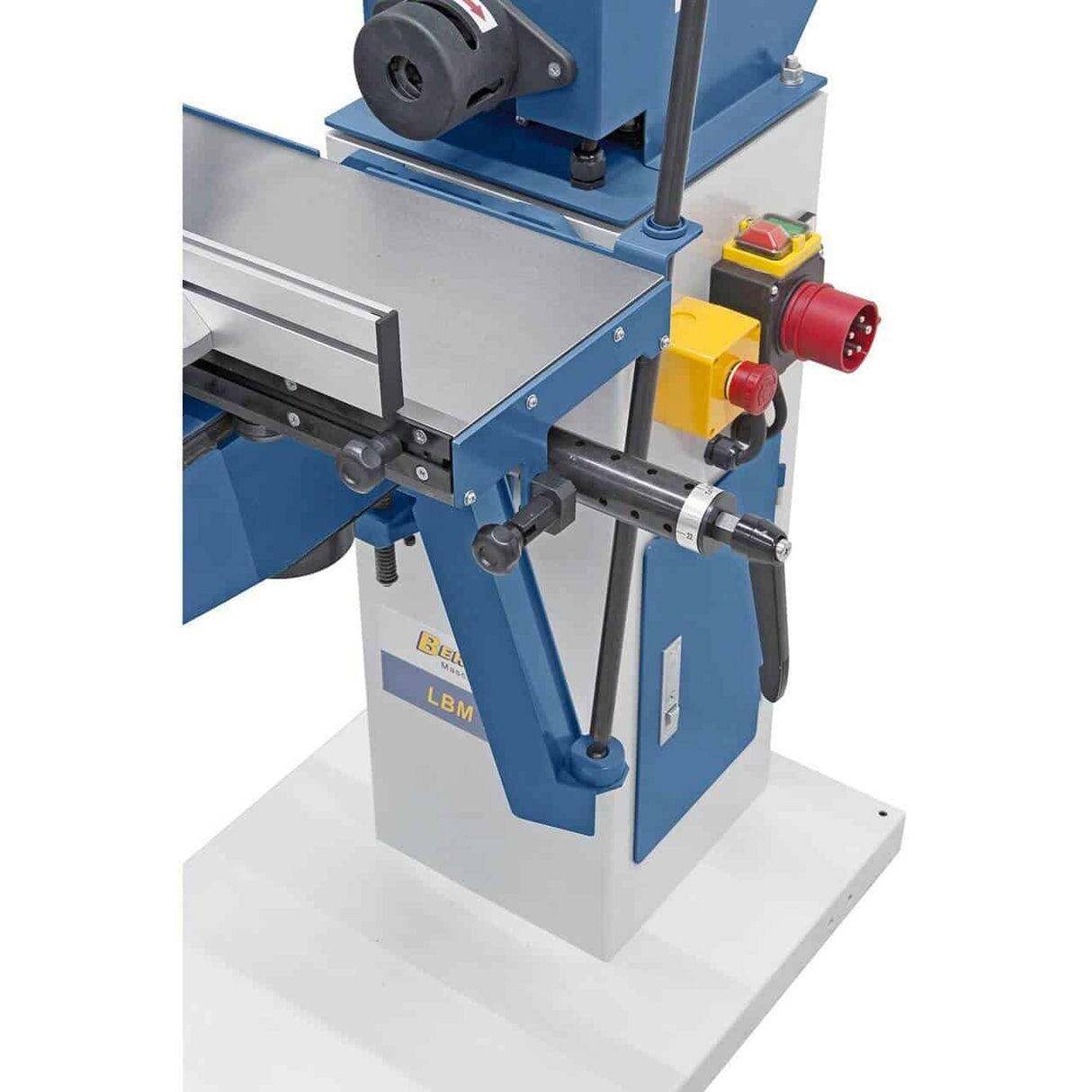

• Ergonomic lever for one-handed control of the table

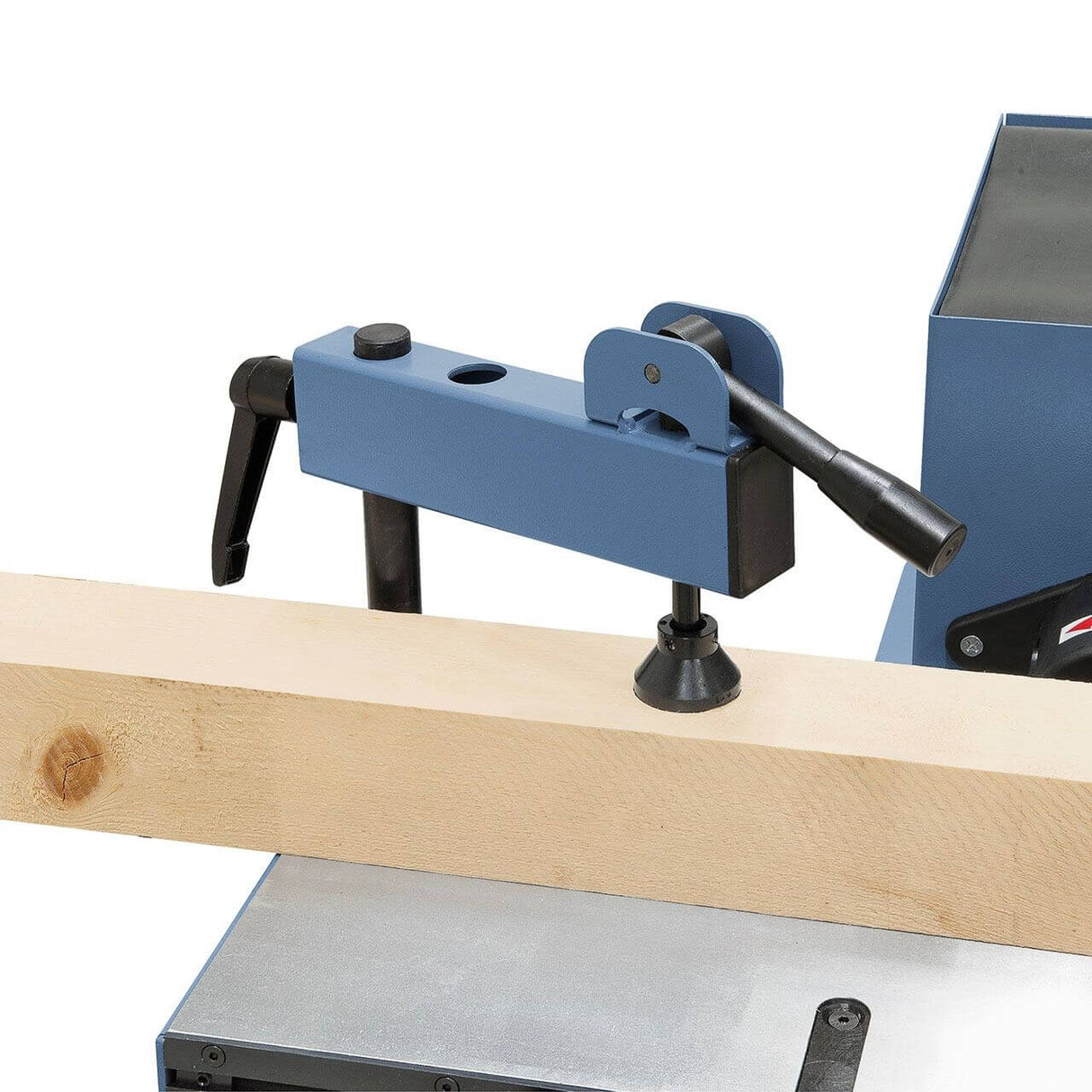

• Eccentric vice for secure fixing of the workpiece

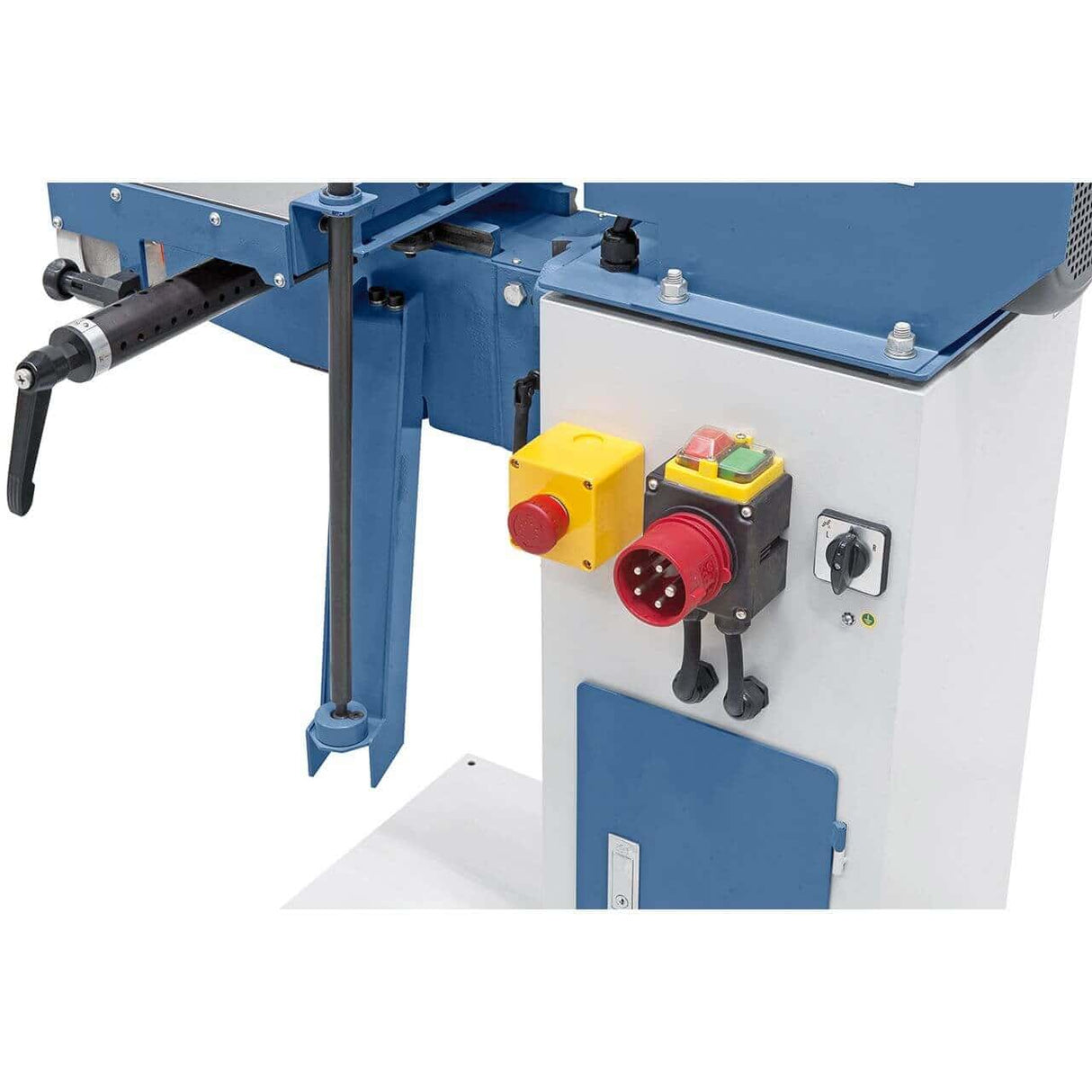

• IP54 compliant circuit breaker with undervoltage release
• Powerful 2.2 kW motor for consistent performance
Technical table
| Function | Characteristic |
|---|---|
| Table dimensions | 500 x 200 mm |
| Table height | 760 – 900 mm |
| Max drilling depth | 150 mm |
| Drilling width | 300 mm |
| Height adjustment | 140 mm |
| Spindle speed | 2850 rpm |
| Westcott Chuck | 0 – 16 mm |
| Suction outlet | Ø 100 mm |
| Engine power S1 100% | 2.2 kW (3.0 HP) |
| S6 engine power 40% | 3.0 kW (4.0 HP) |
| Voltage | 400 V |
| Machine dimensions (WxDxH) | 770 x 920 x 1245 mm |
| Weight | 102 kg |
Package Contents
• Rotor group 4 sizes (pitch 16 / 20 / 22 / 25 mm)
• Westcott chuck 0 – 16 mm
• 1 eccentric support
• Guide with angular stop
• Right/left rotation
• Digital readout for height adjustment
• Machine base with tool compartment
