Description

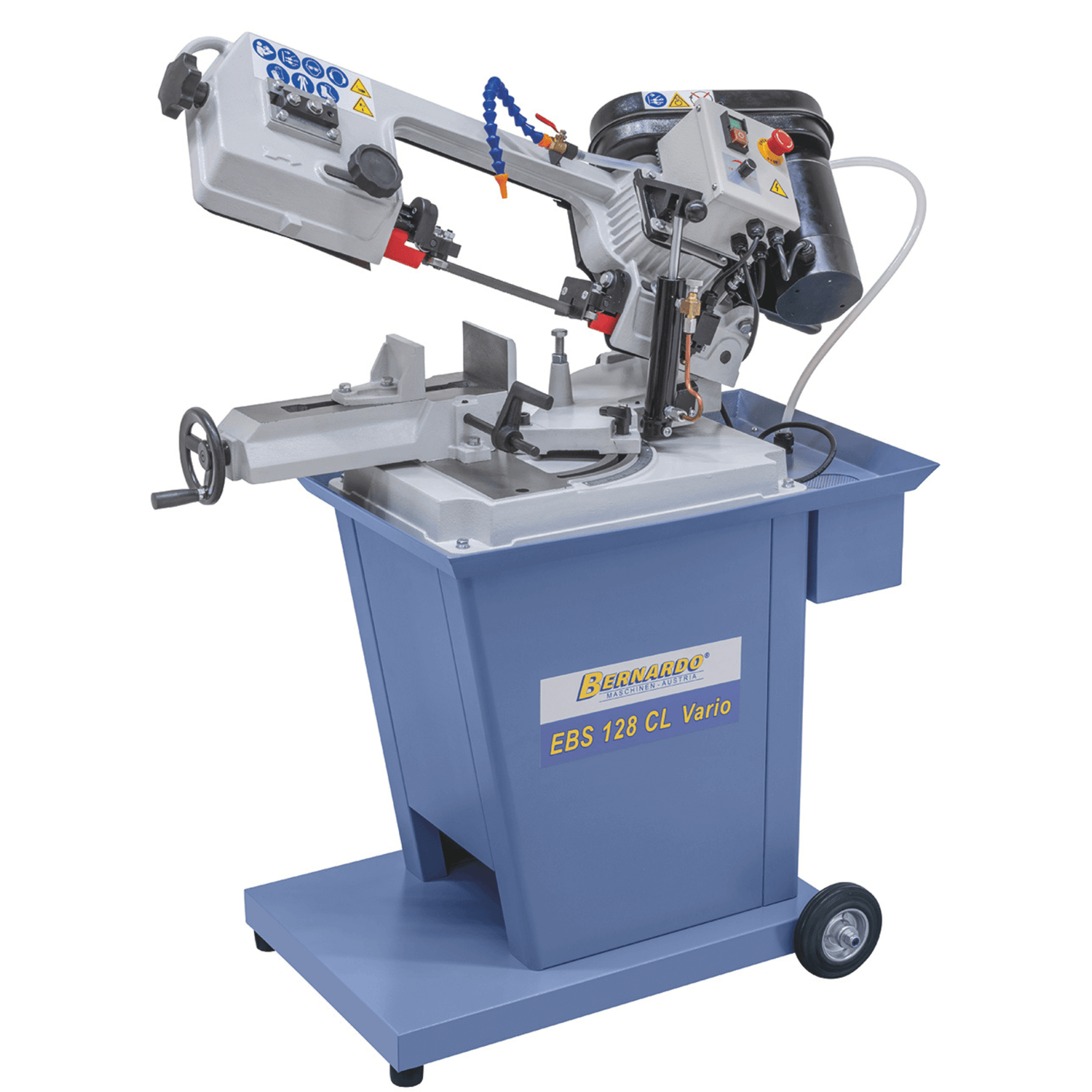

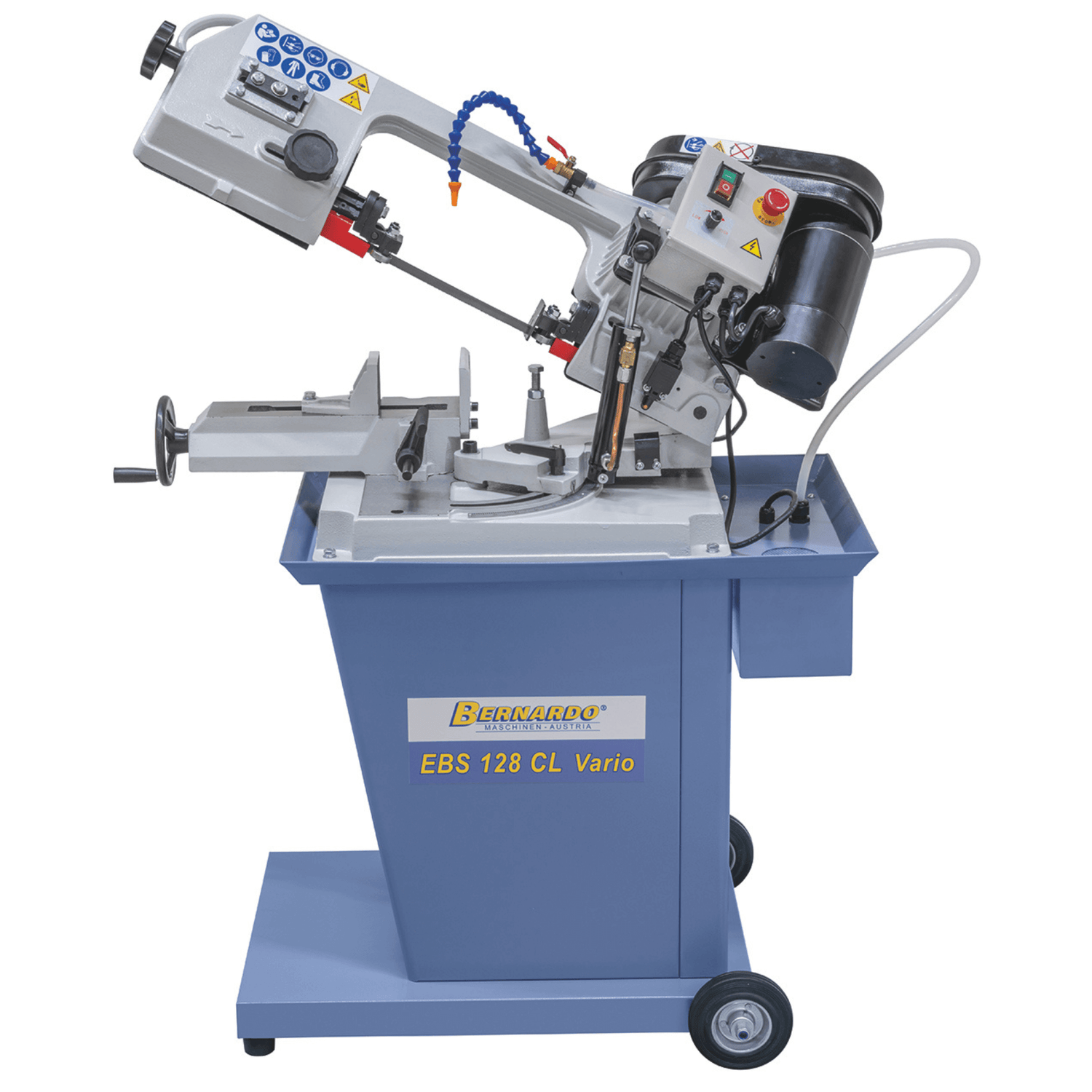

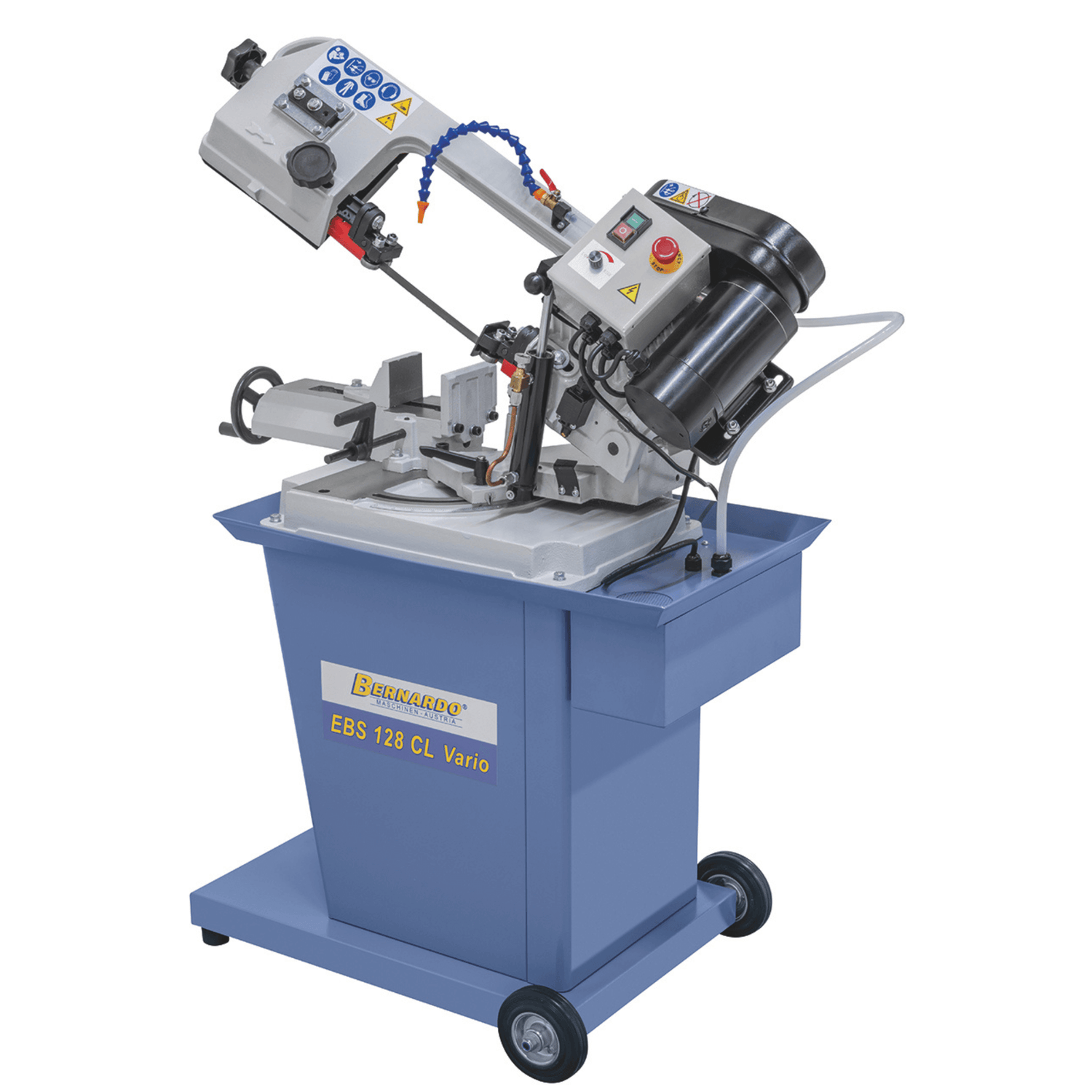

EBS 128 CL Vario double mitre band saw / 230 V
The EBS 128 CL Vario band saw is designed to offer maximum flexibility for miter and straight cuts on profiles, pipes, and solid materials, both ferrous and non-ferrous. Thanks to the ability to tilt the saw blade up to 60° and the adjustable cutting speed, this machine guarantees precision, quiet operation, and excellent cut quality even on long or bulky workpieces.
Main features
• Ideal for cutting pipes, profiles and solids in iron and non-ferrous materials

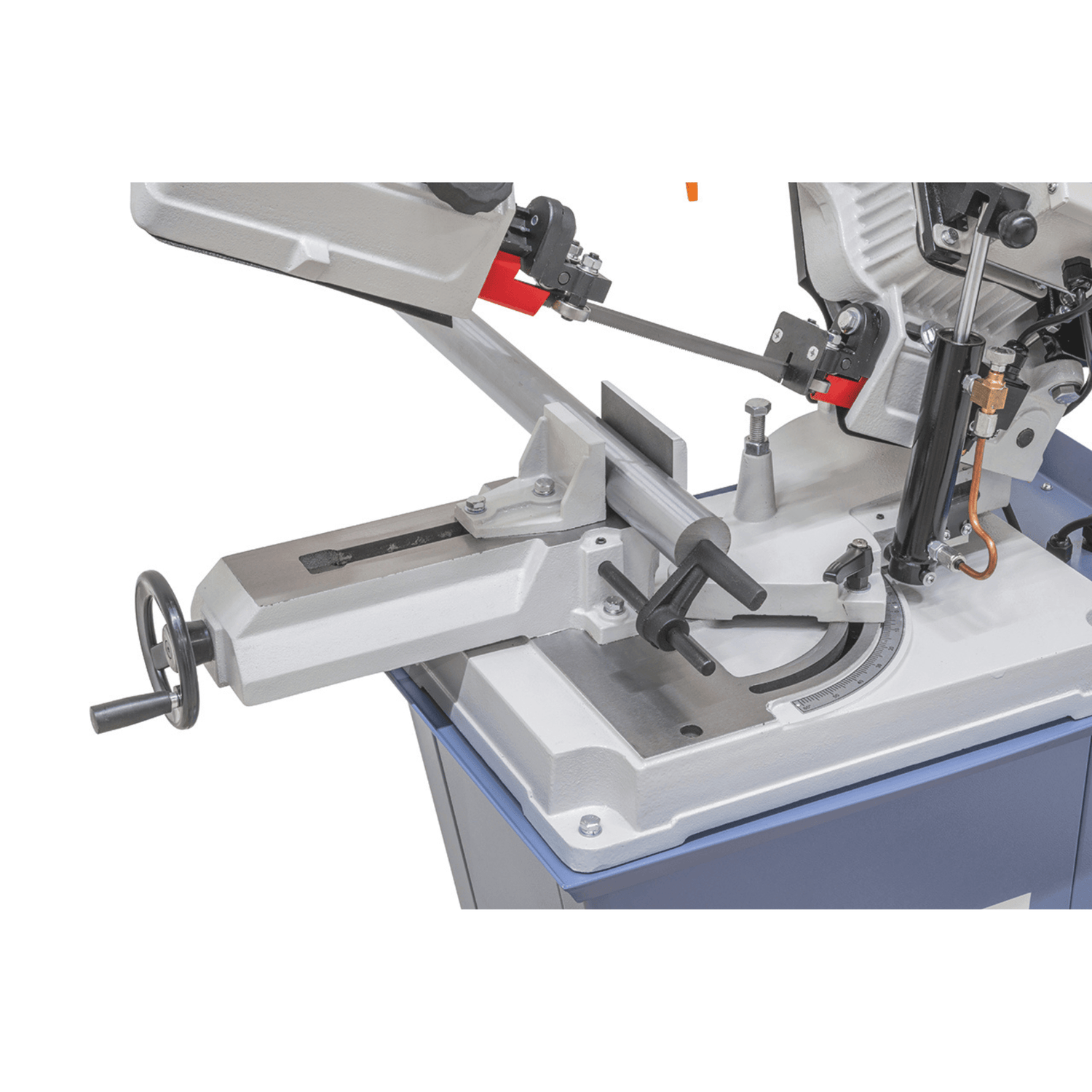

• Tiltable arc up to 60° for maximum versatility in angle cuts

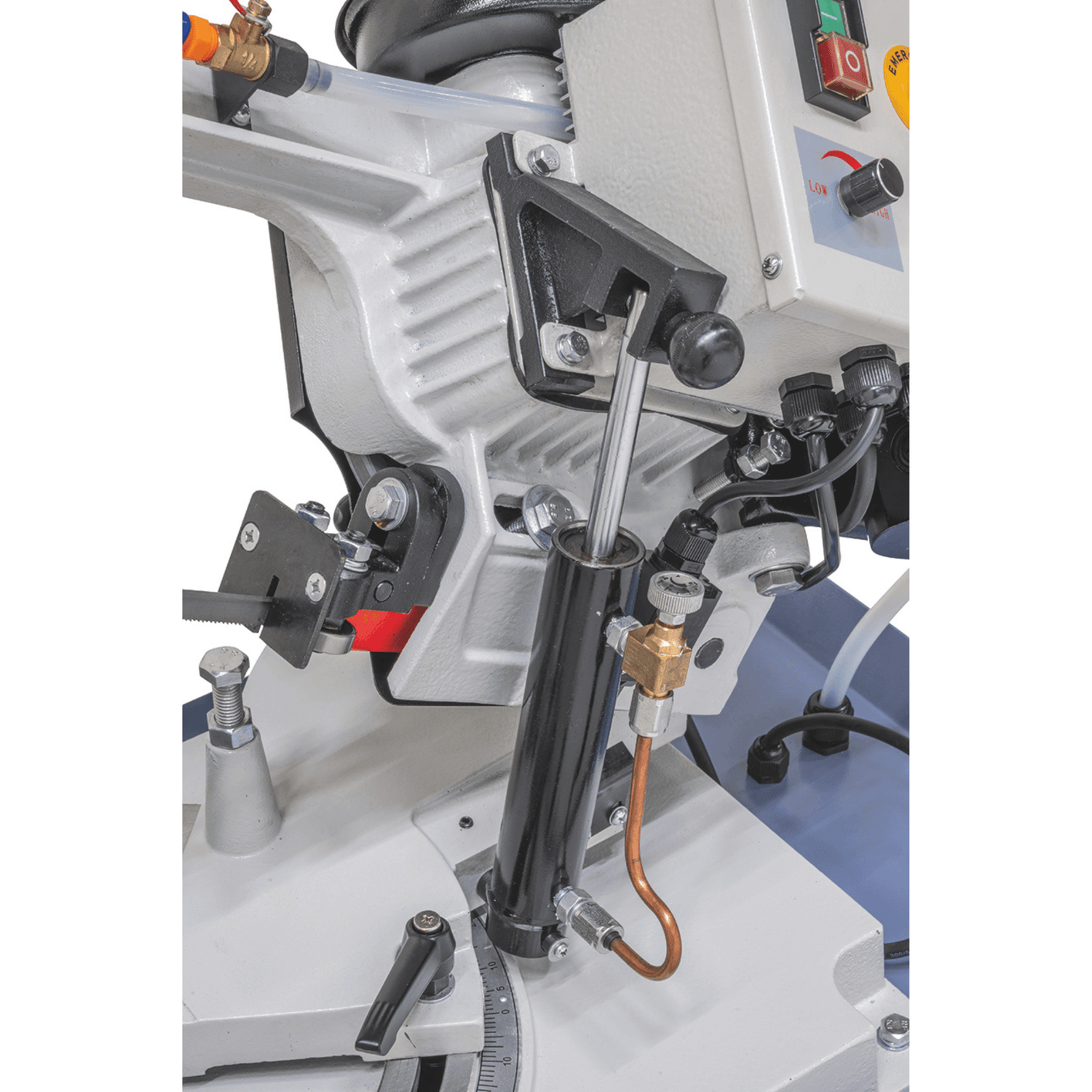

• Blade lowering controlled by adjustable hydraulic cylinder
• Torsion-resistant grey cast iron construction for stability and precision
• Robust, anti-vibration frame for quiet operation
• Adjustable cutting speed from 22 to 56 m/min to suit the material

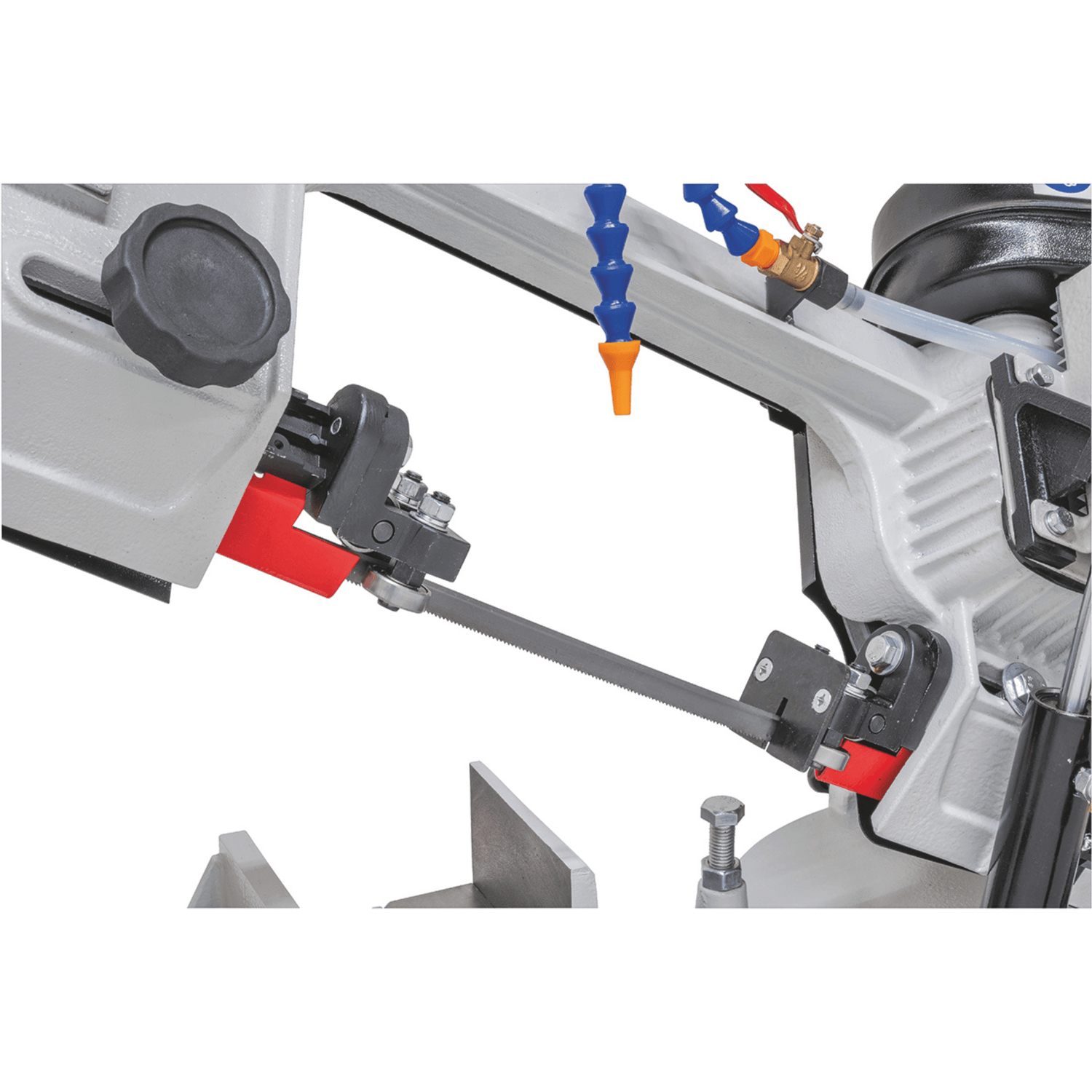

• Blade guide with ball bearings and quick adjustment
• Automatic limit switch with switch-off at the end of the cut
• Mobile base with wheels for easy movement

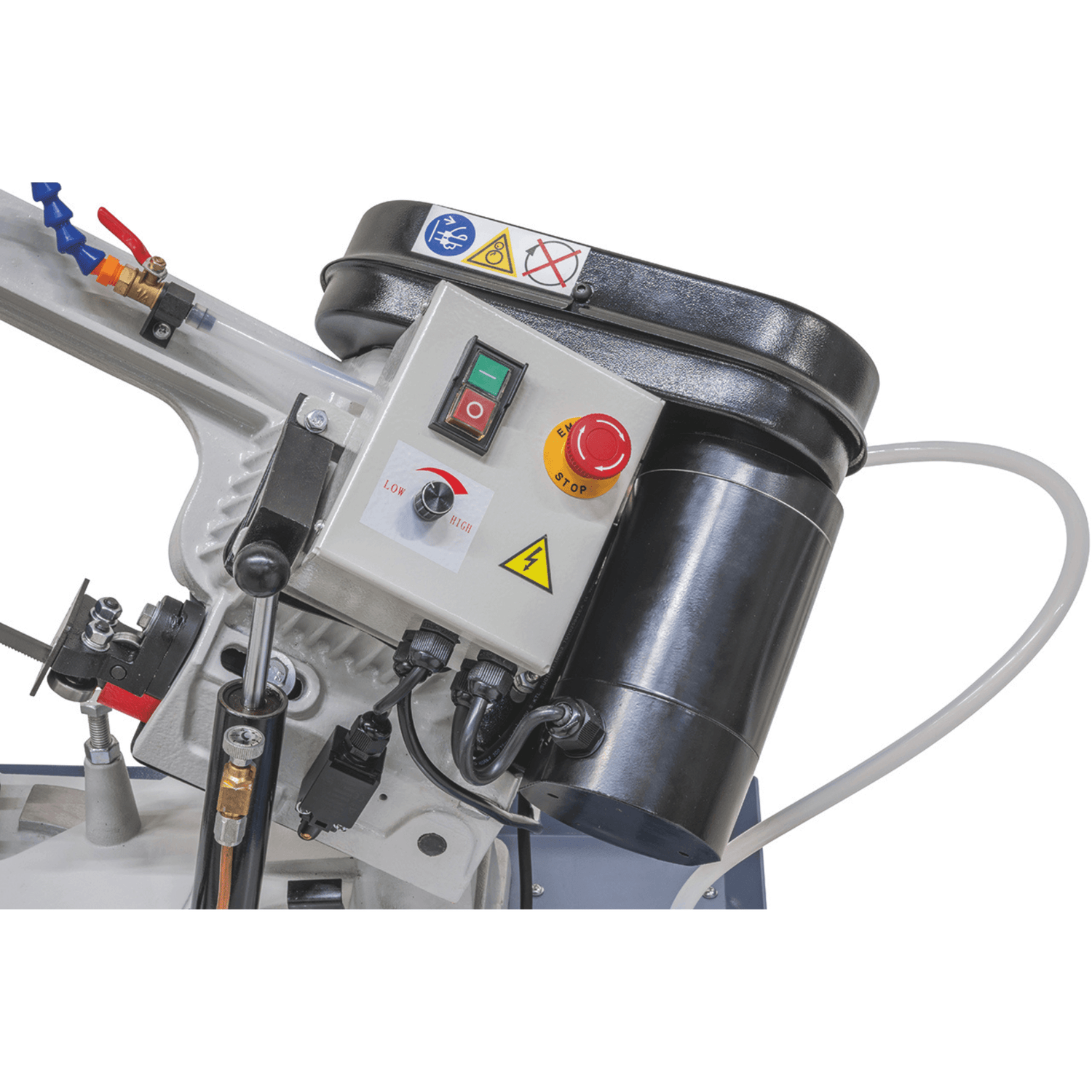

• CE compliant emergency stop button
Technical table
| Characteristic | Value |
|---|---|
| 90° round cutting capacity | 125 mm |
| 90° flat cutting capacity | 130 x 150 mm |
| 45° round cutting capacity | 85 mm |
| 45° flat cutting capacity | 85 x 145 mm |
| 60° round cutting capacity | 35 mm |
| 60° flat cutting capacity | 35 x 70 mm |
| Working height | 750 mm |
| Blade size | 1638 x 13 x 0.65 mm |
| Cutting speed (adjustable) | 22 – 56 m/min |
| S1 engine power 100% | 0.75 kW |
| Power consumption S6 40% | 1.1 kW |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 970 x 540 x 1100 mm |
| Weight | approx. 78 kg |
Package Contents
• Complete band saw
• Cooling system
• Quick release vice
• Stop for the workpiece
• Automatic limit switch with switch-off
• Base with wheels for transport
• Hydraulic cylinder for blade descent
• Separate emergency button according to CE
