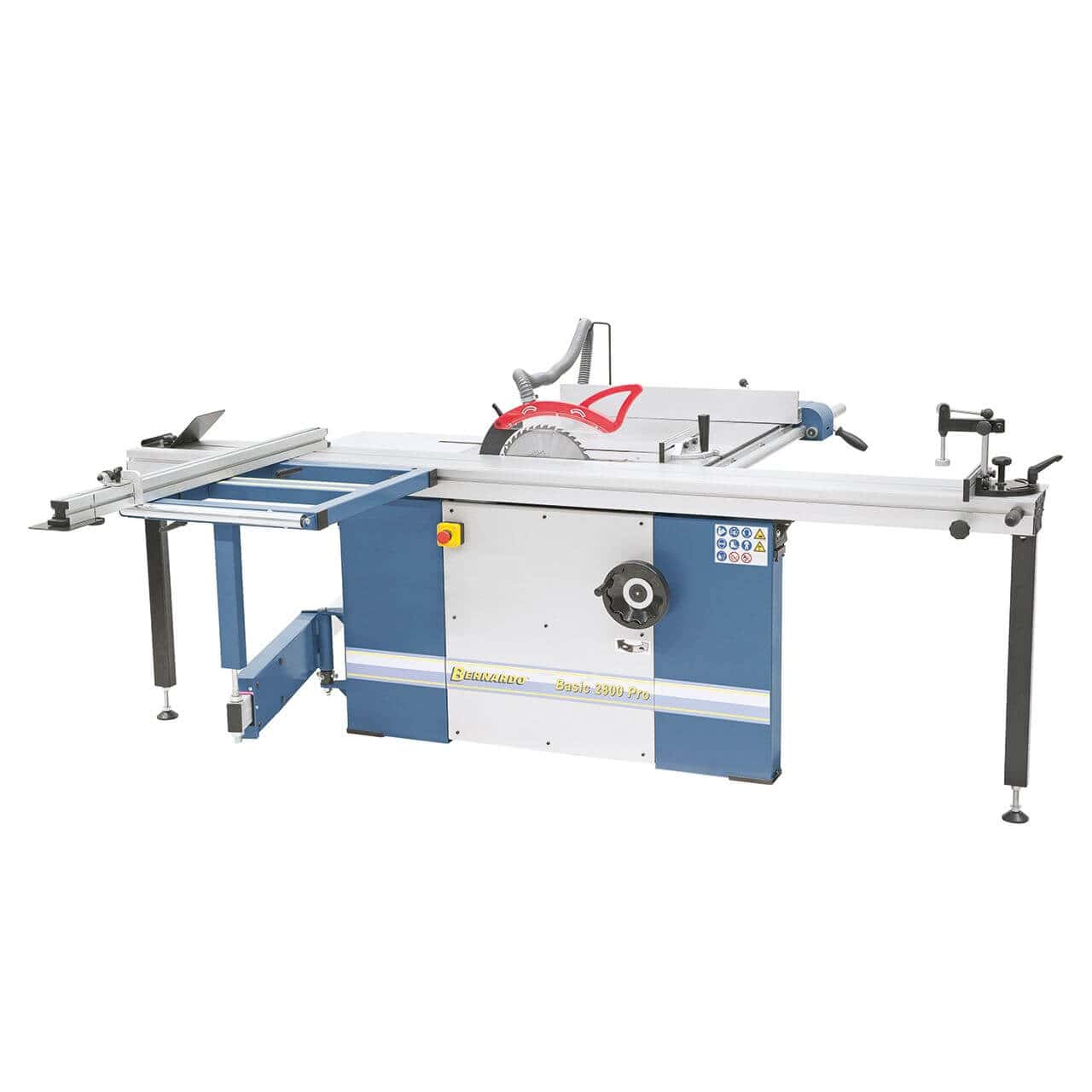

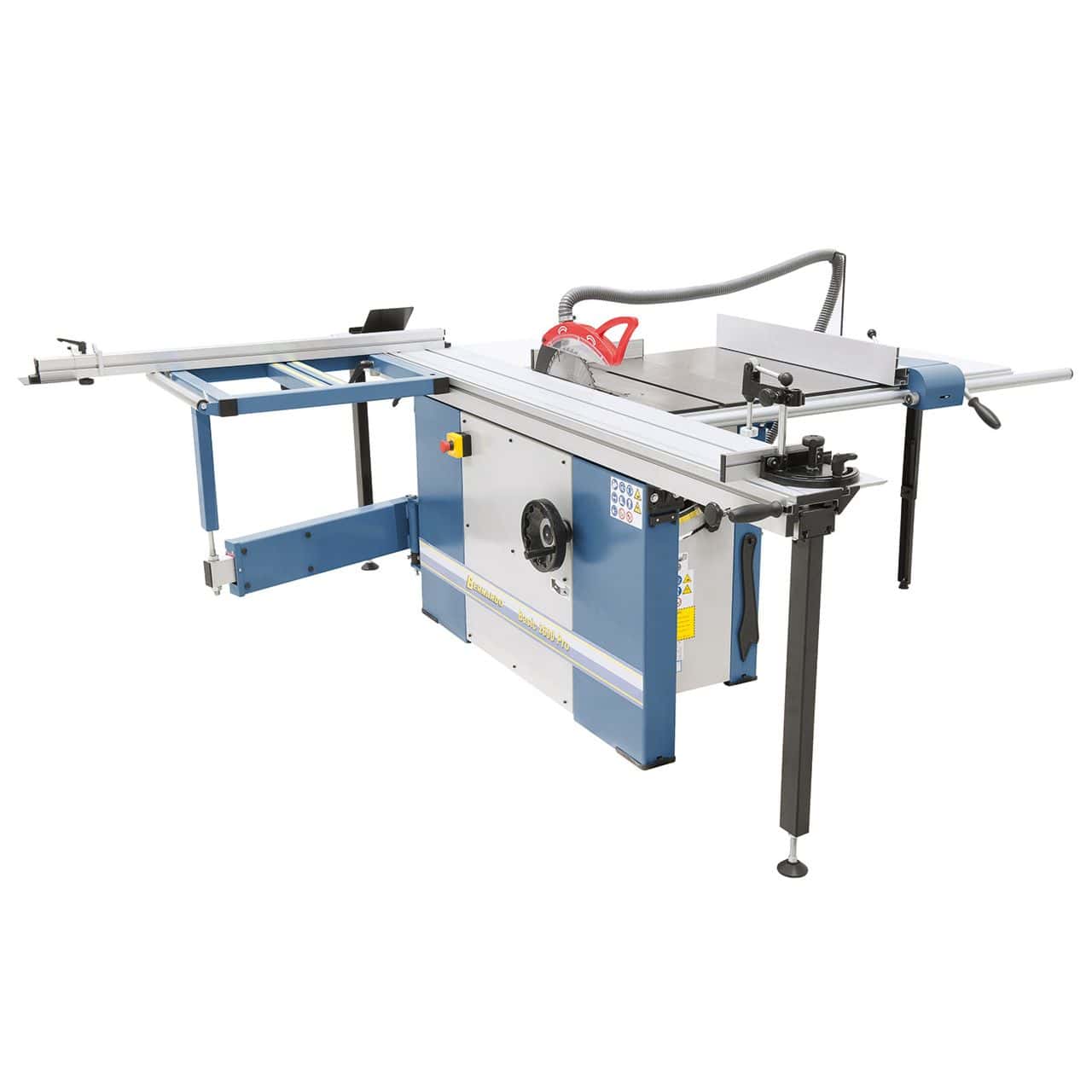

Circular saw with sliding table Basic 2600 Pro / 400 V
The Basic 2600 Pro is a sliding table circular saw designed to meet the needs of professionals. Equipped with a tilting blade, scoring blade, and a powerful motor, it offers an ideal combination of precision, ease of use, and structural strength. The 2600 mm aluminum sliding table with hardened guides ensures smoothness and stability even on the longest cuts.
Main features
• Sliding carriage in aluminium with tempered guides (2600 mm)

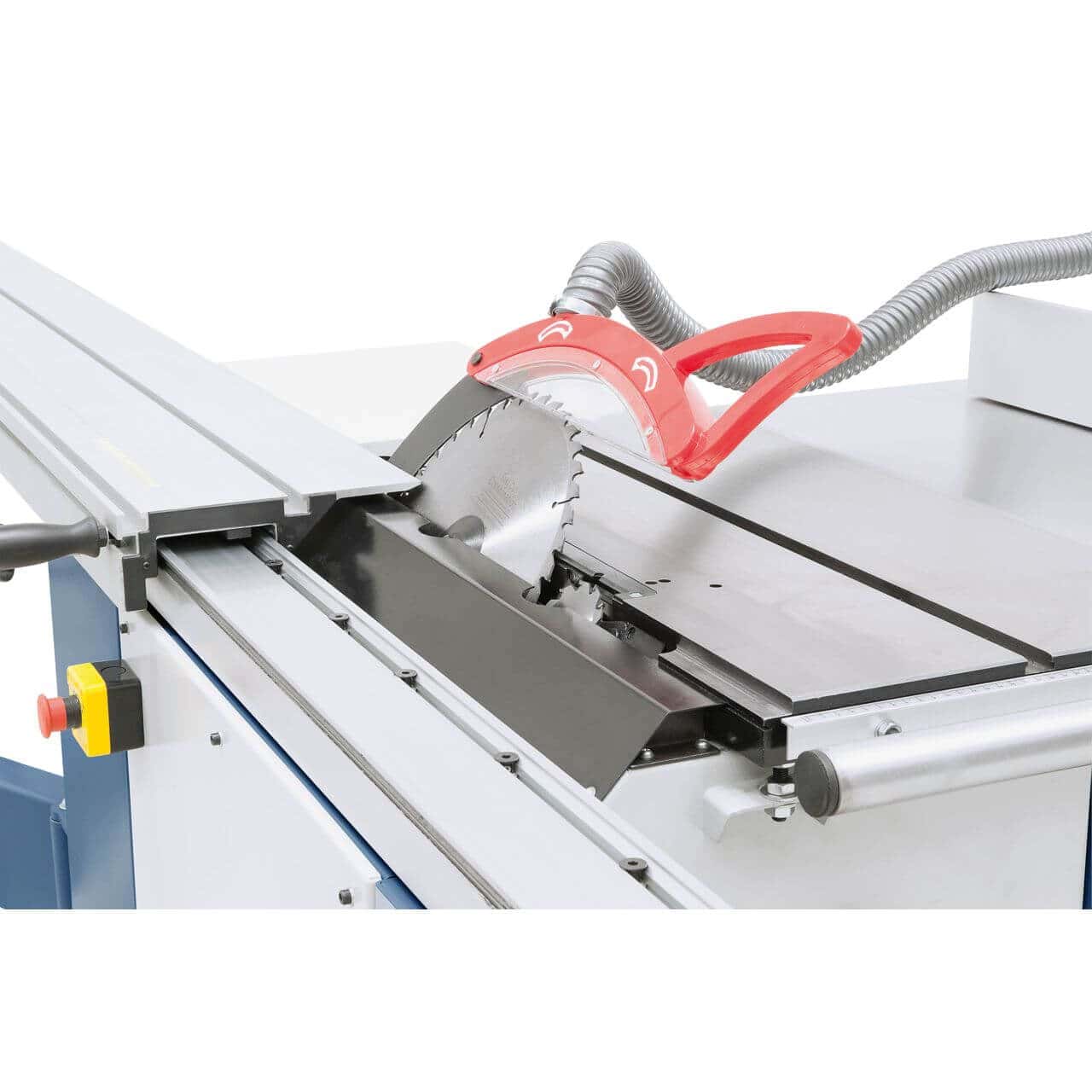

• Main blade tiltable up to 45° with adjustment via handwheel
• Engraver included for precise processing of coated panels
• Telescopic guide extendable up to 2260 mm, can be mounted in front or behind the table

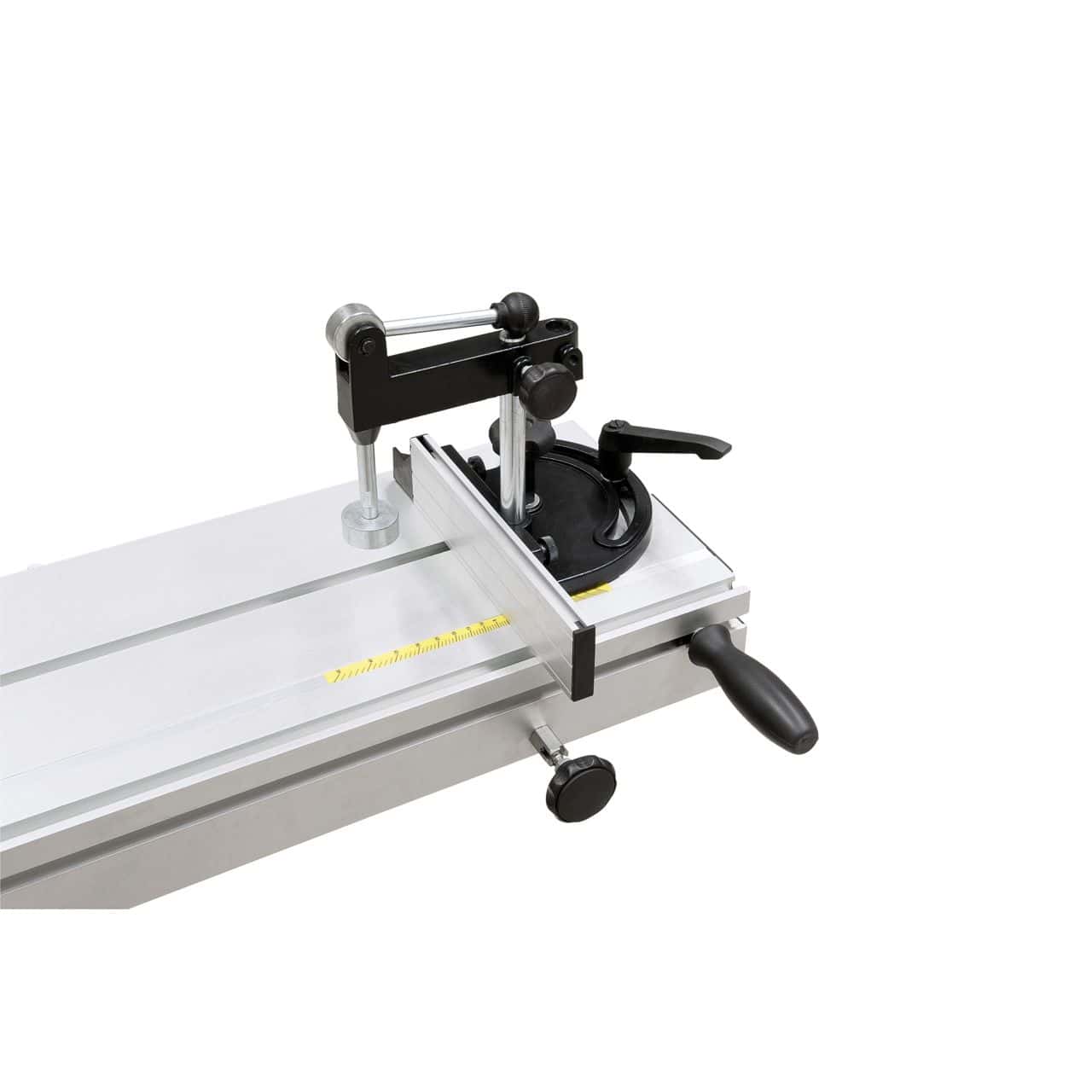

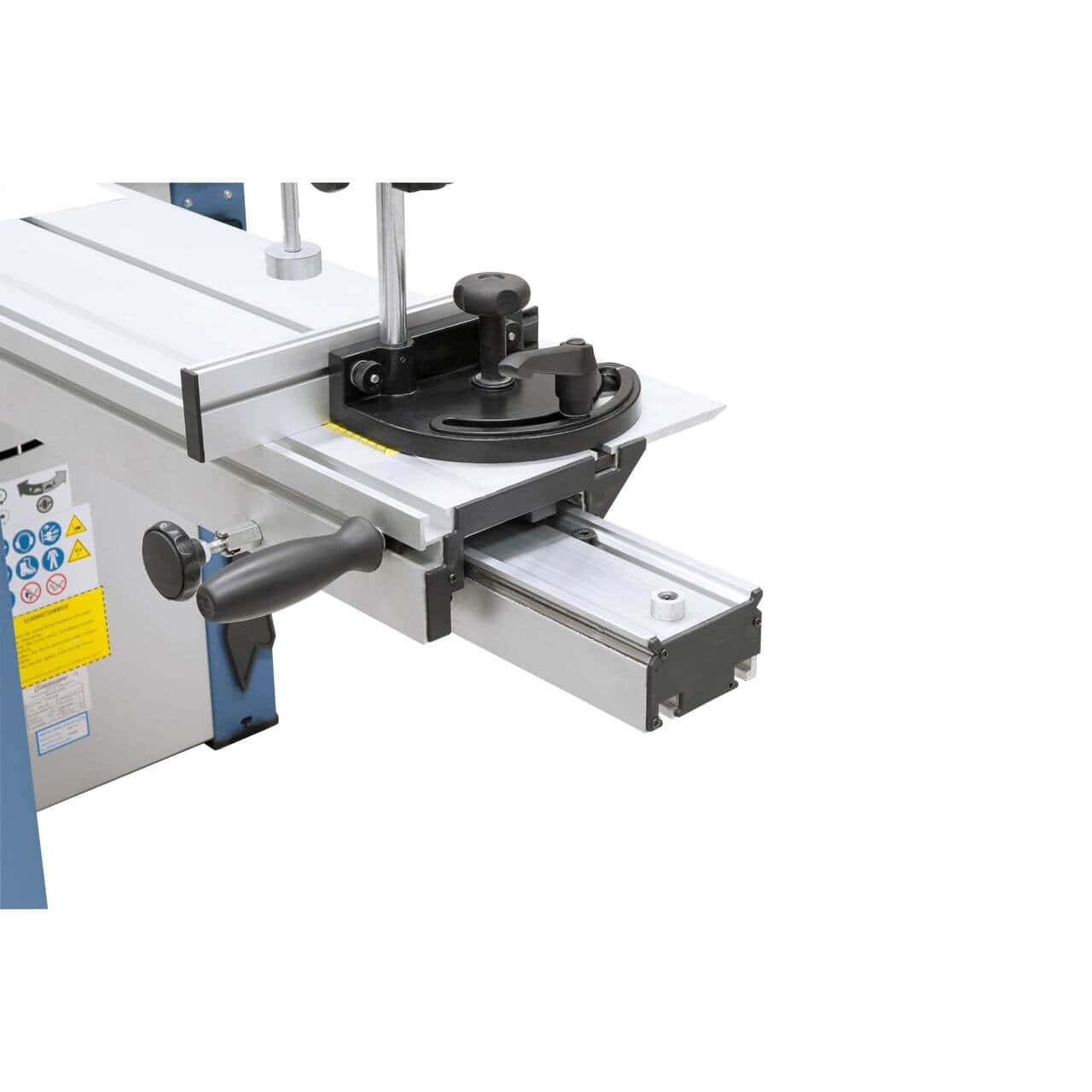

• Corner stop with sliding pressure along the entire length of the carriage

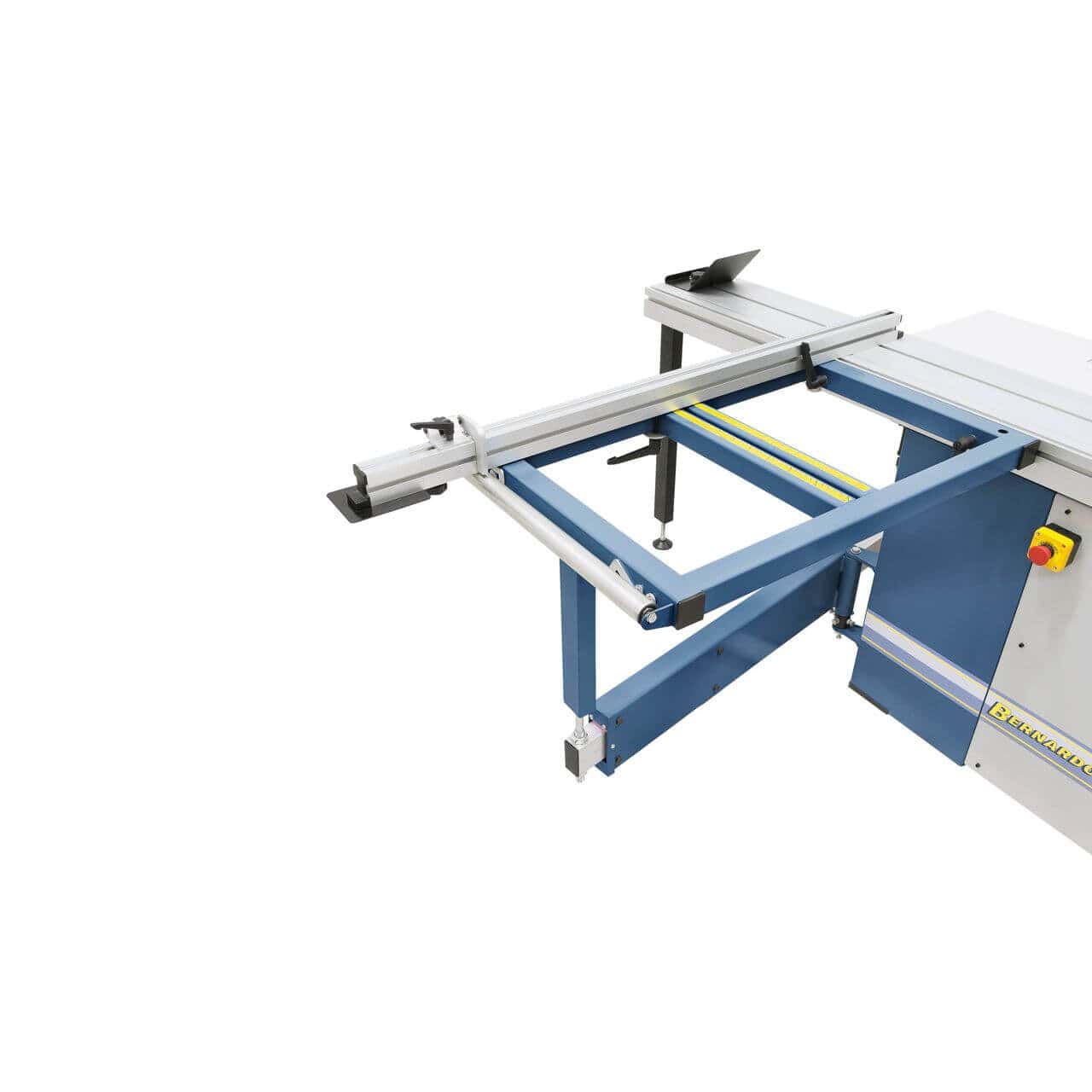

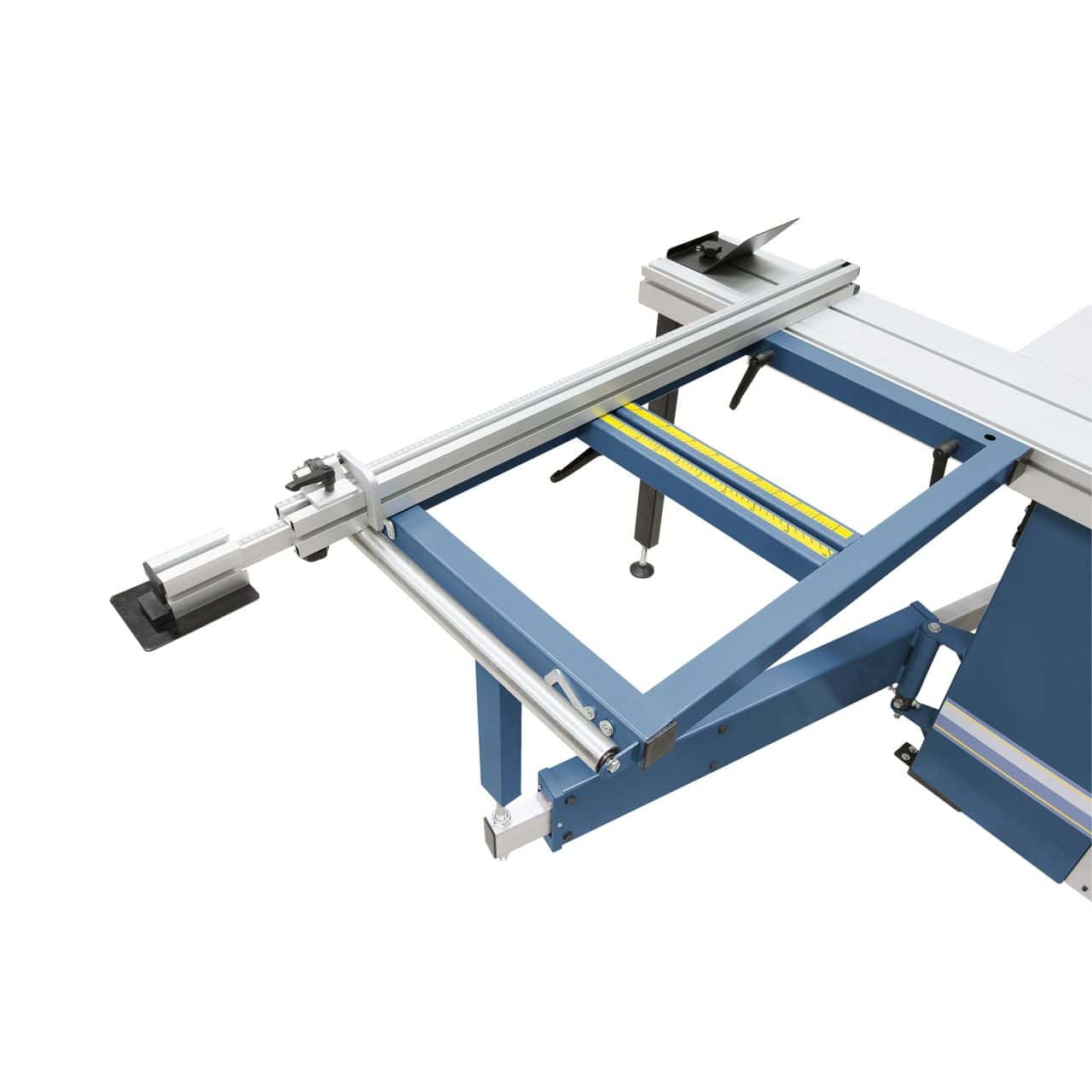

• Square table with roller for stable support of large and heavy panels
• Table extensions and widenings for large work surfaces

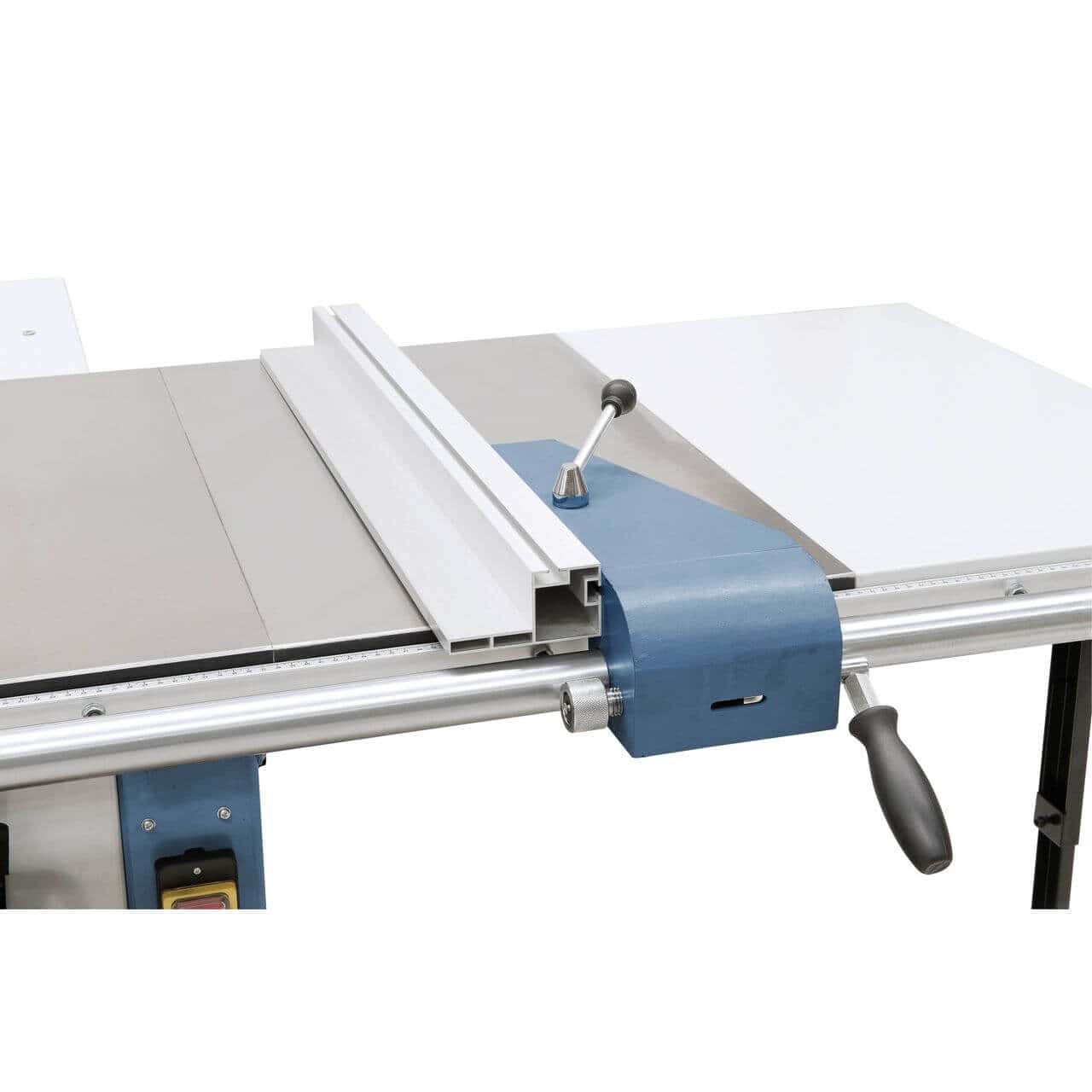

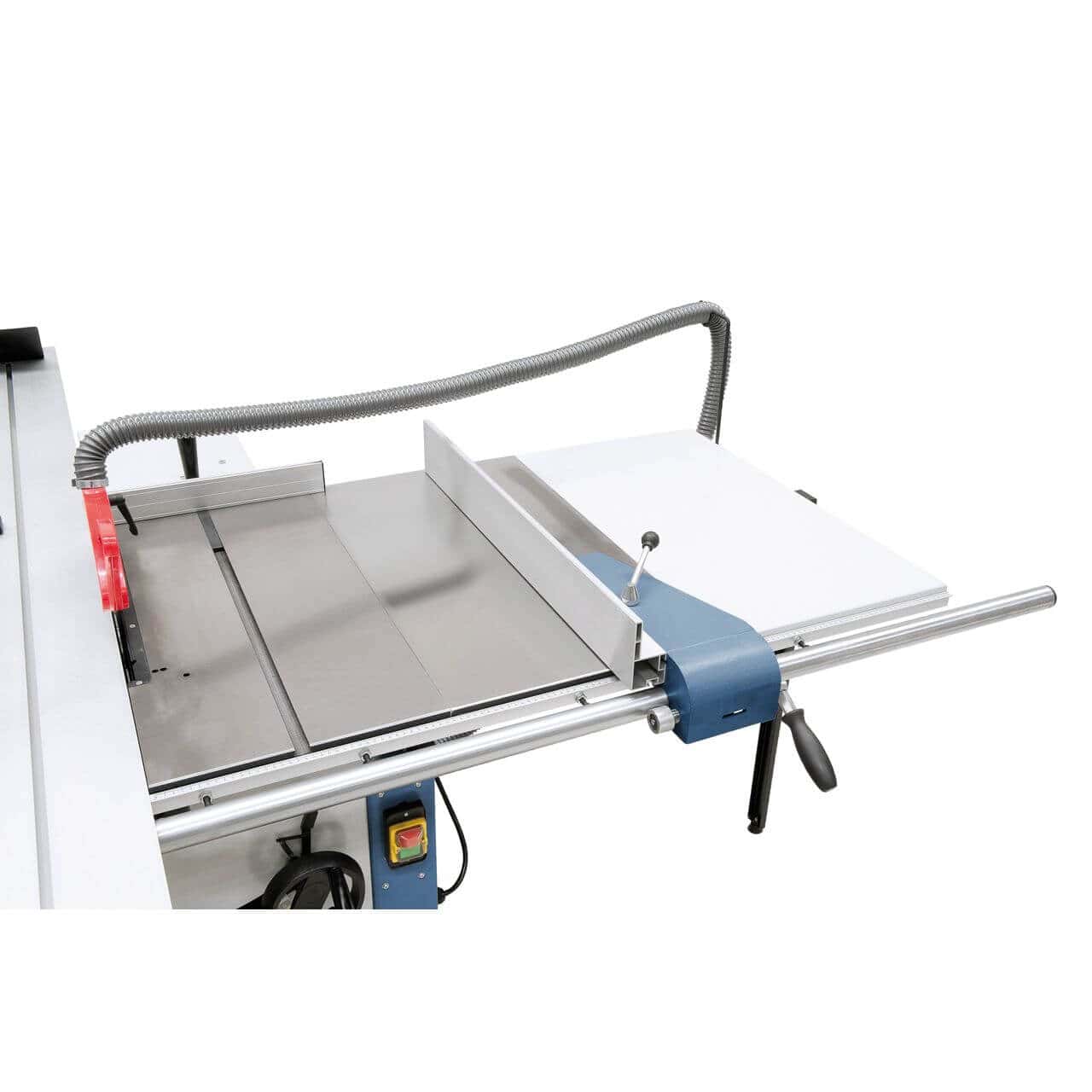

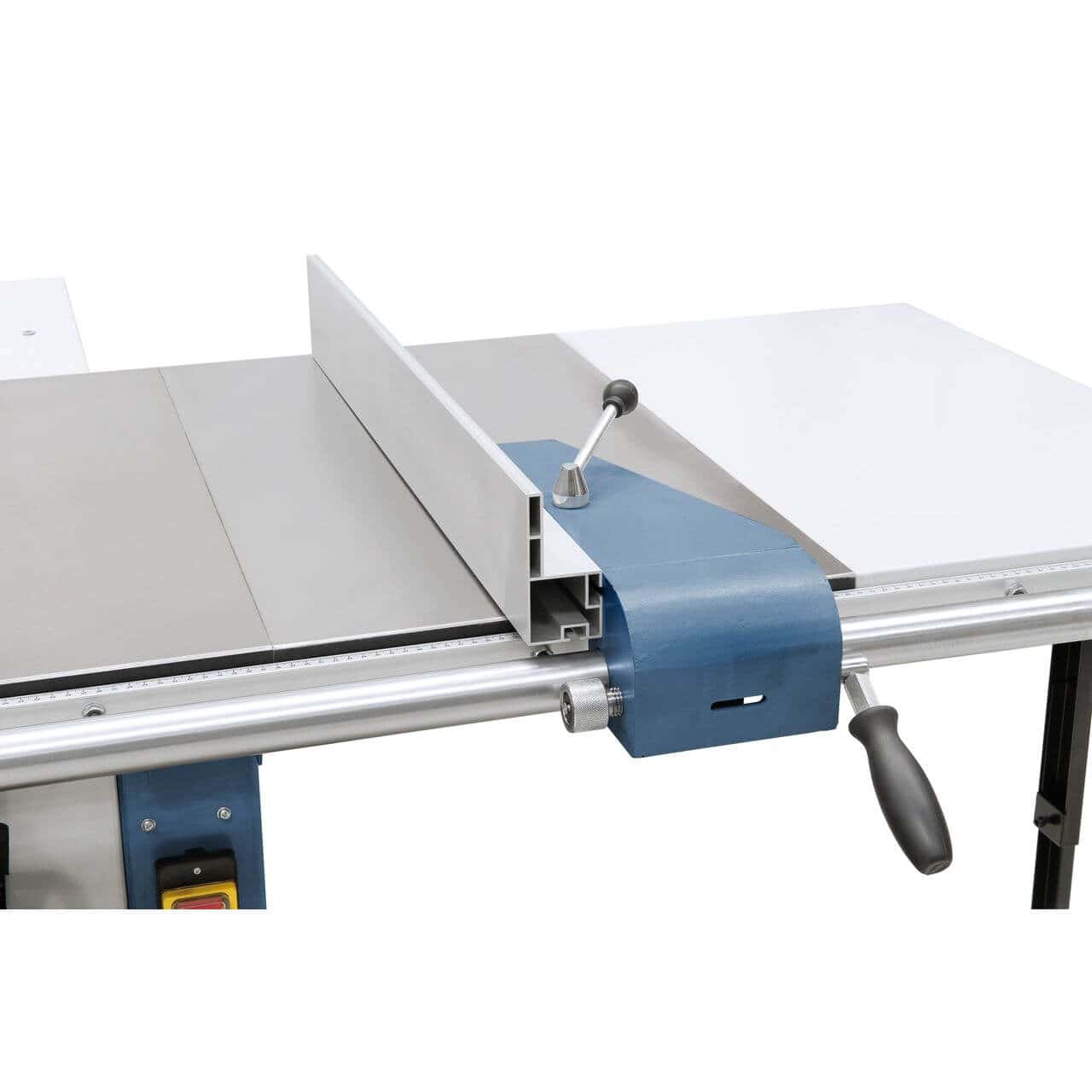

• Folding parallel guide with micrometric adjustment and magnifying glass
• Structure made of steel and anti-torsion grey cast iron
• Precision-crafted cast iron table with polished surface
Technical data
| Technical specifications | |
|---|---|
| Table size | 800 x 385 mm |
| Sliding carriage | 2600 x 270 mm |
| Cutting length | 2600 mm |
| Max. blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1200 mm |
| Table height | 860 mm |
| Table extension | 500 x 310 mm |
| Table enlargement | 800 x 880 mm |
| Square table with roller | 755 x 580 mm |
| Main blade speed | 4000 rpm |
| Engraving blade speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.8 kW (5.1 HP) |
| Engine power (S6 40%) | 5.3 kW (7.2 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 2600 x 2810 x 1140 mm |
| Weight approx. | 300 kg |
Package Contents
• HM blade 315 x 3.0 x 30 mm / 40 teeth
• Engraving blade 90 x 20 mm / 12 teeth

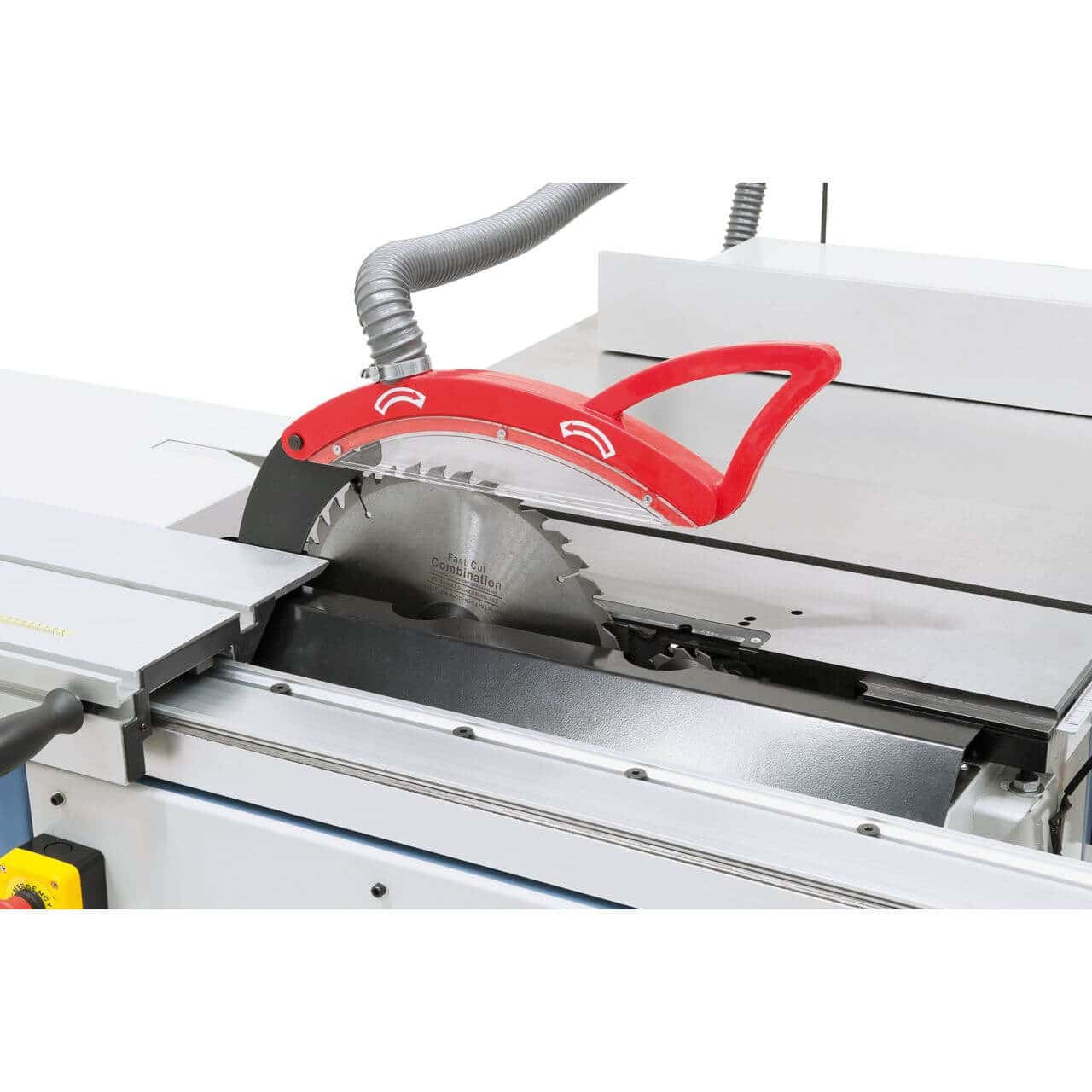

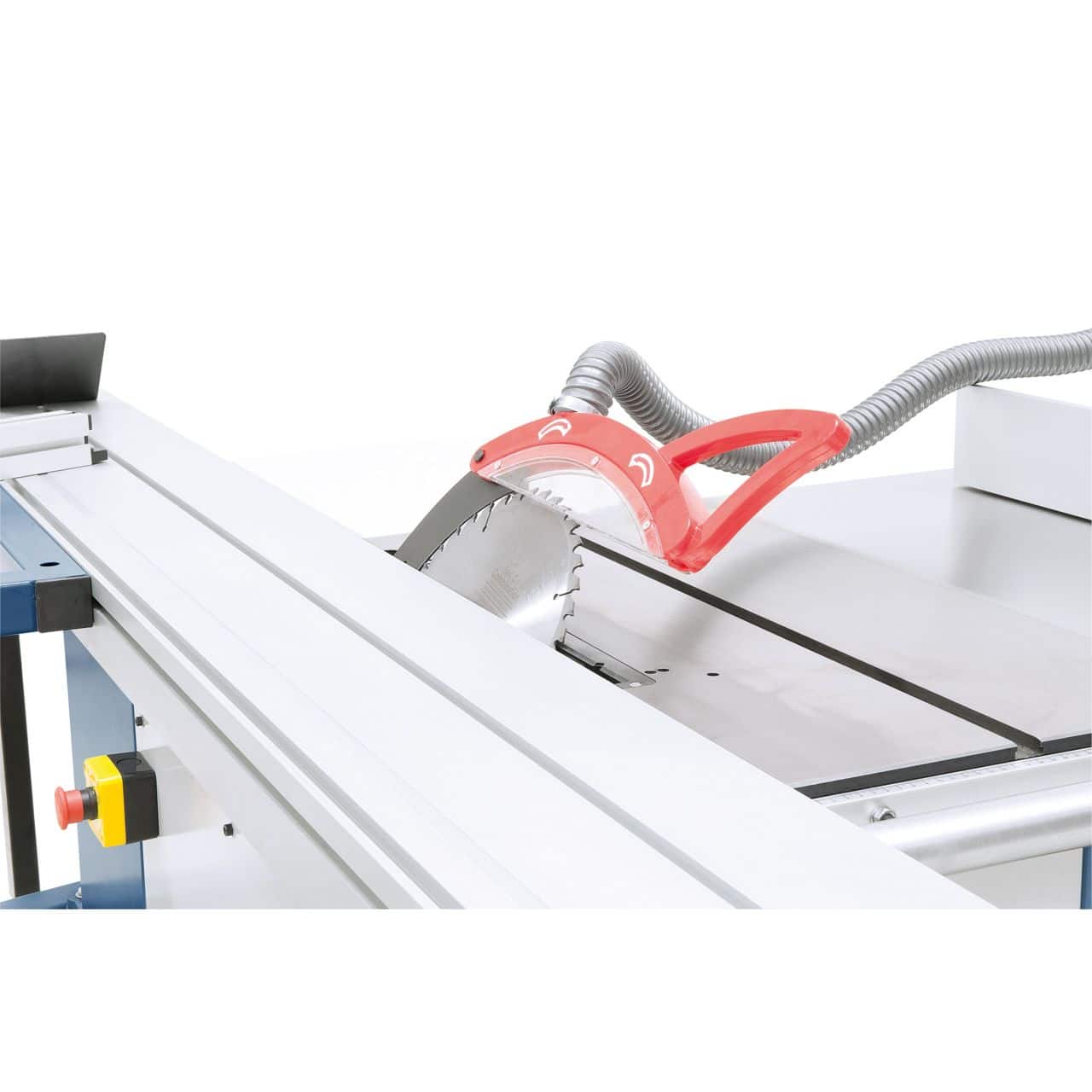

• Protective casing with suction connection
• Connection pipe with Y-fitting
• Angle guide with eccentric locking
• Angle guide
• End stop
• Table extension
• Table enlargement
• Extractable telescopic guide
• Stop with micrometric adjustment
• Square table with roller
• Pusher
• Tool set
