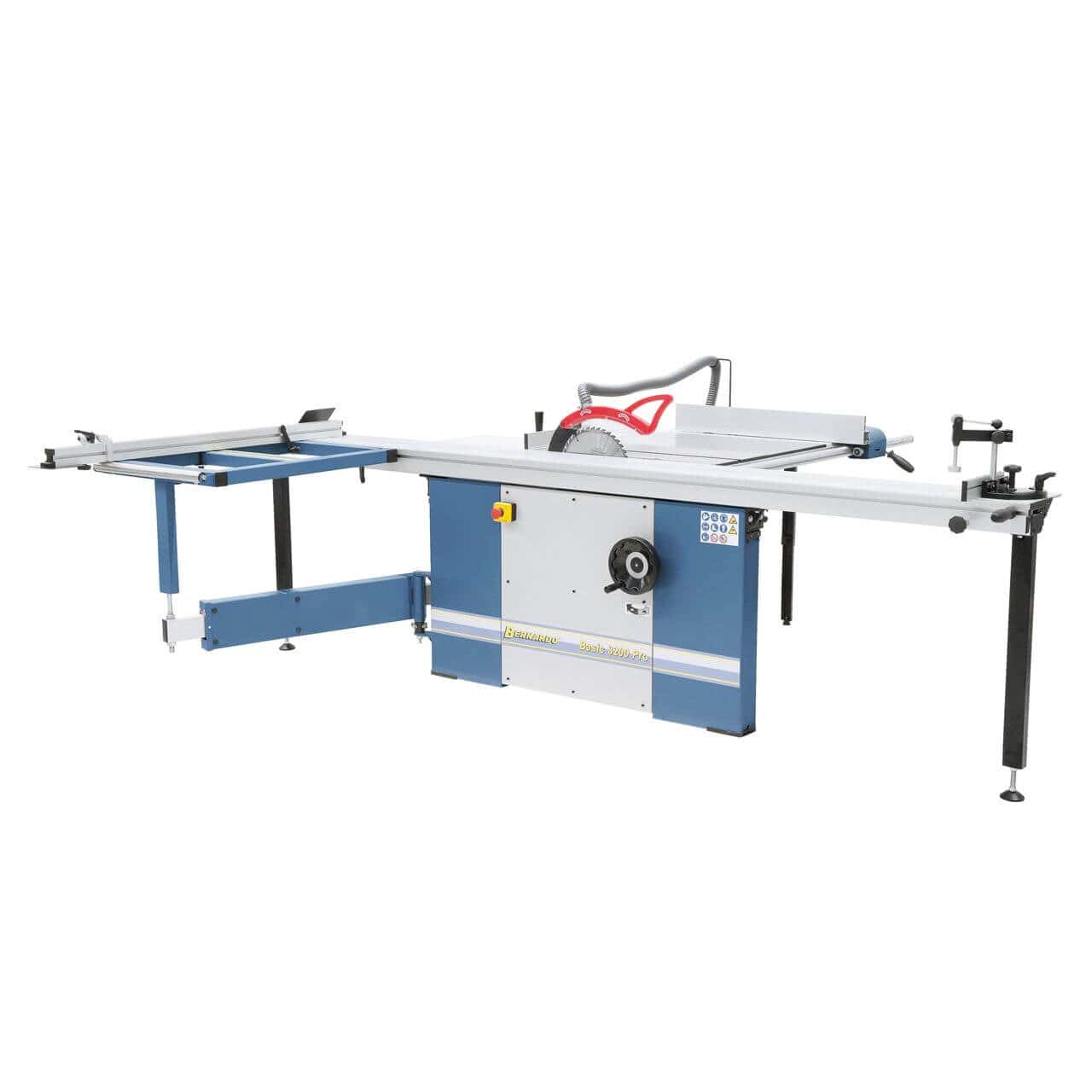

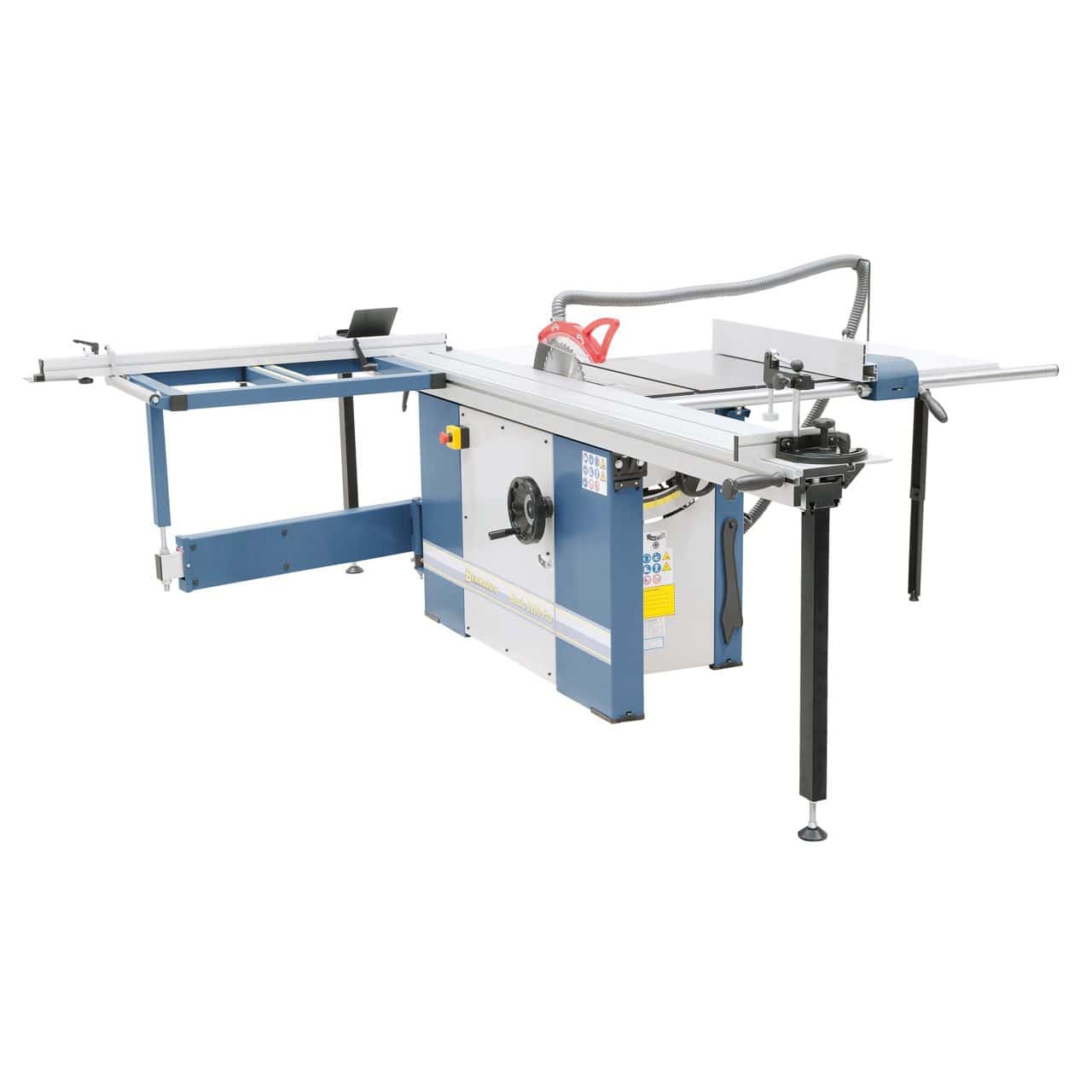

Circular saw with sliding table Basic 3200 Pro / 400 V
The Basic 3200 Pro is a professional sliding table circular saw designed for those who demand maximum precision, operating comfort, and consistent power even during continuous use . Thanks to the 3200 mm aluminum table , 315 mm tilting blade with integrated scoring blade , and solid steel and gray cast iron structure, this model is an excellent choice for processing large and coated panels. The 935 mm square table with roller ensures optimal support even for heavy materials.
Main features
• 3200 mm sliding carriage with hardened guides for precise cuts

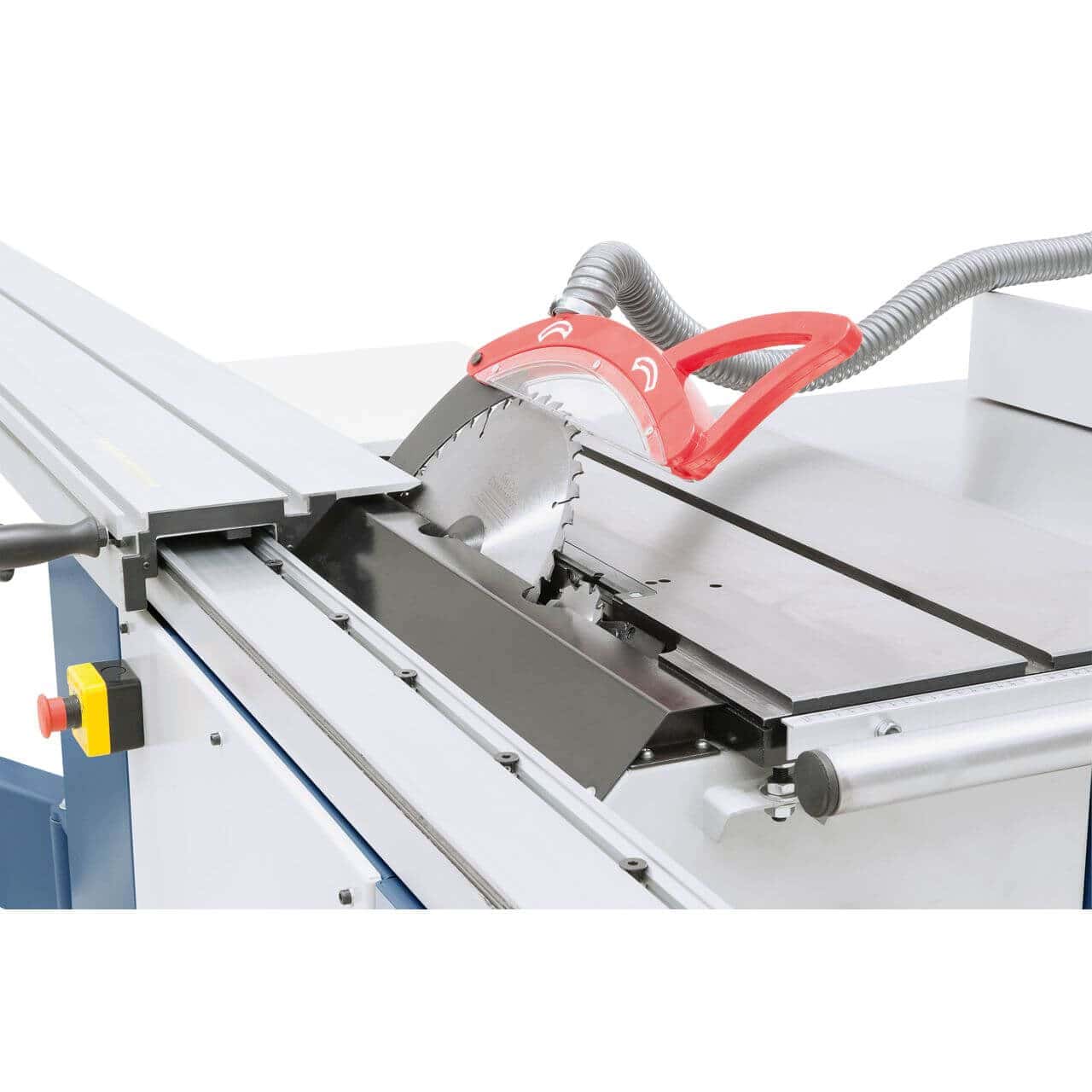

• 315 mm blade tiltable up to 45°, with scoring blade for coated materials

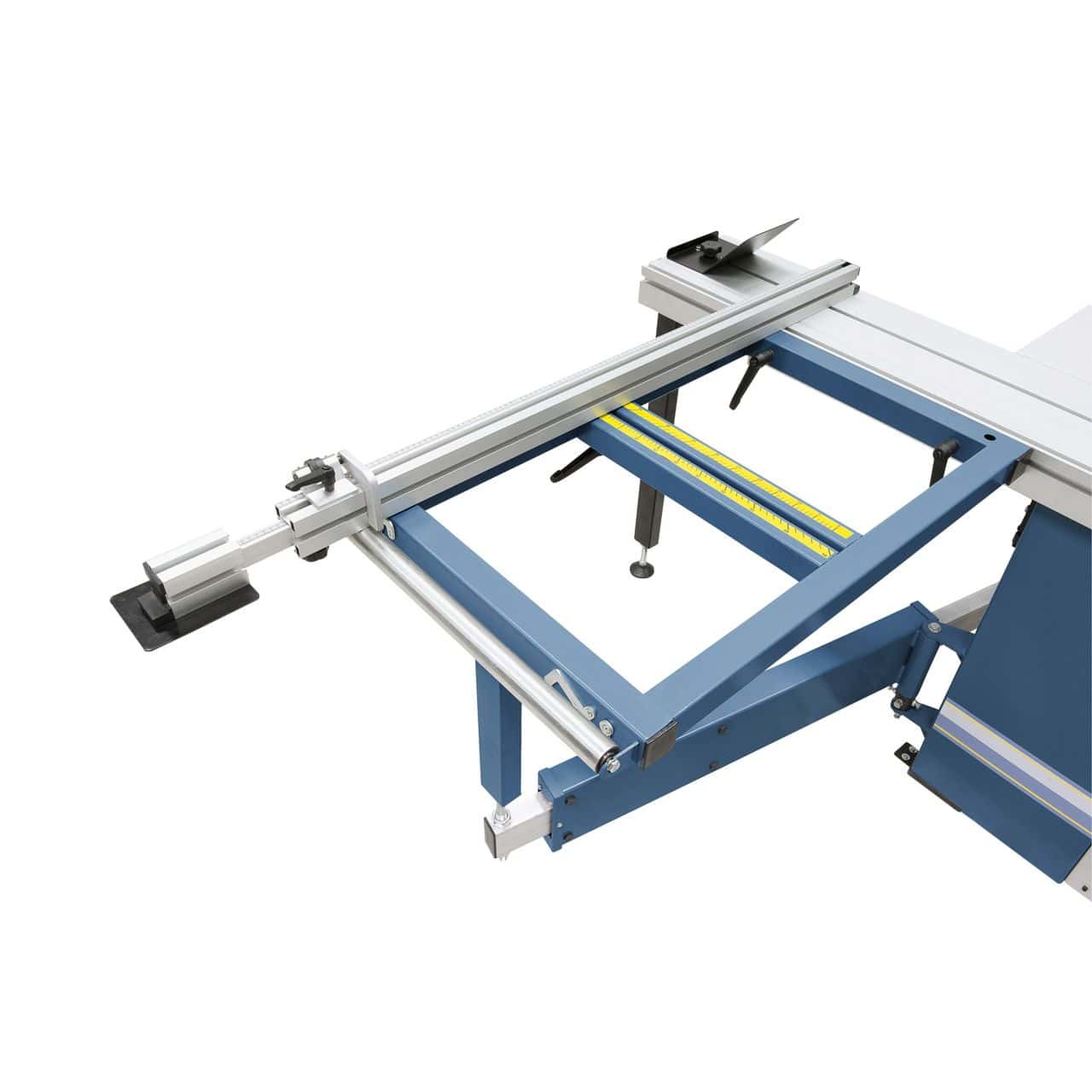

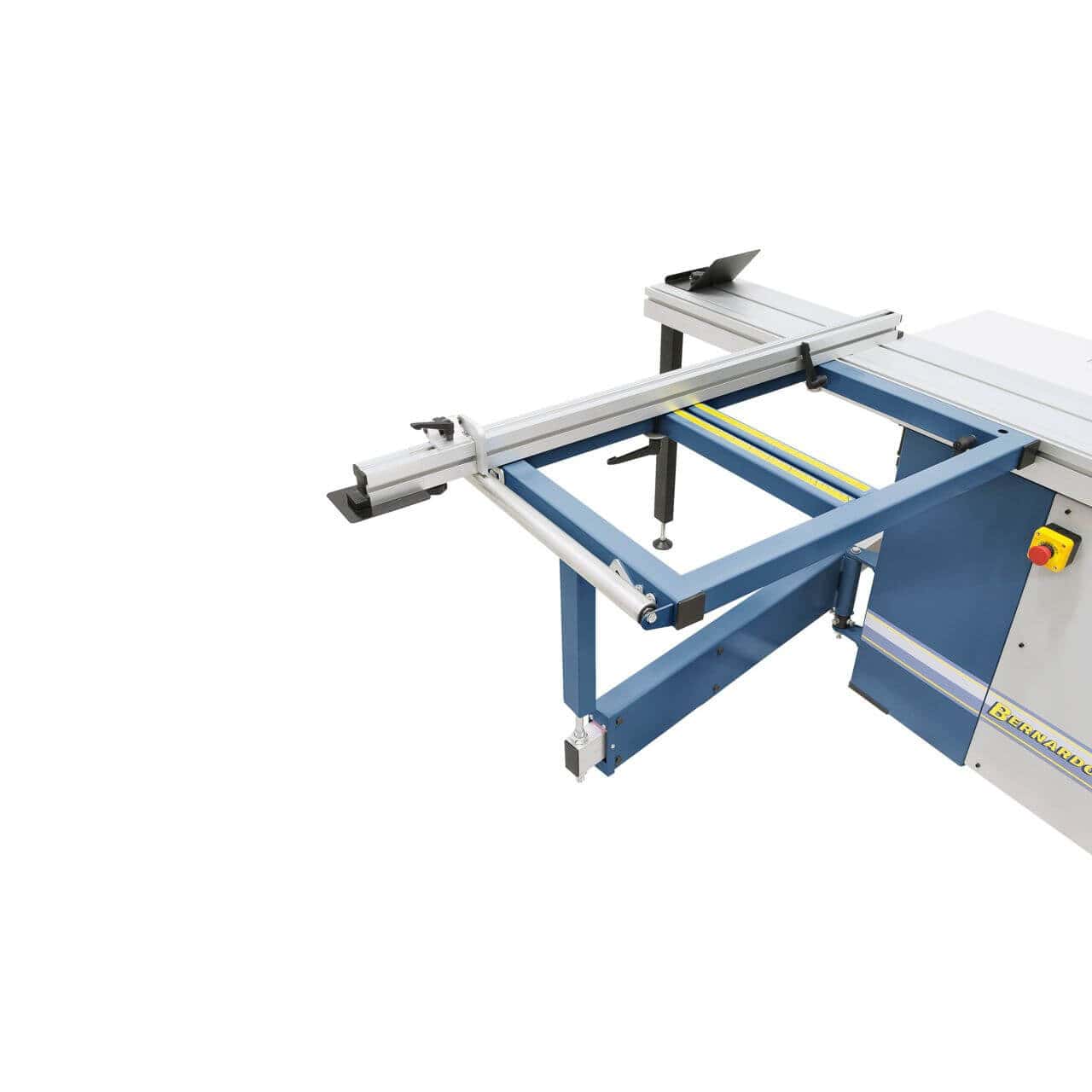

• 935mm square roller table for large panels

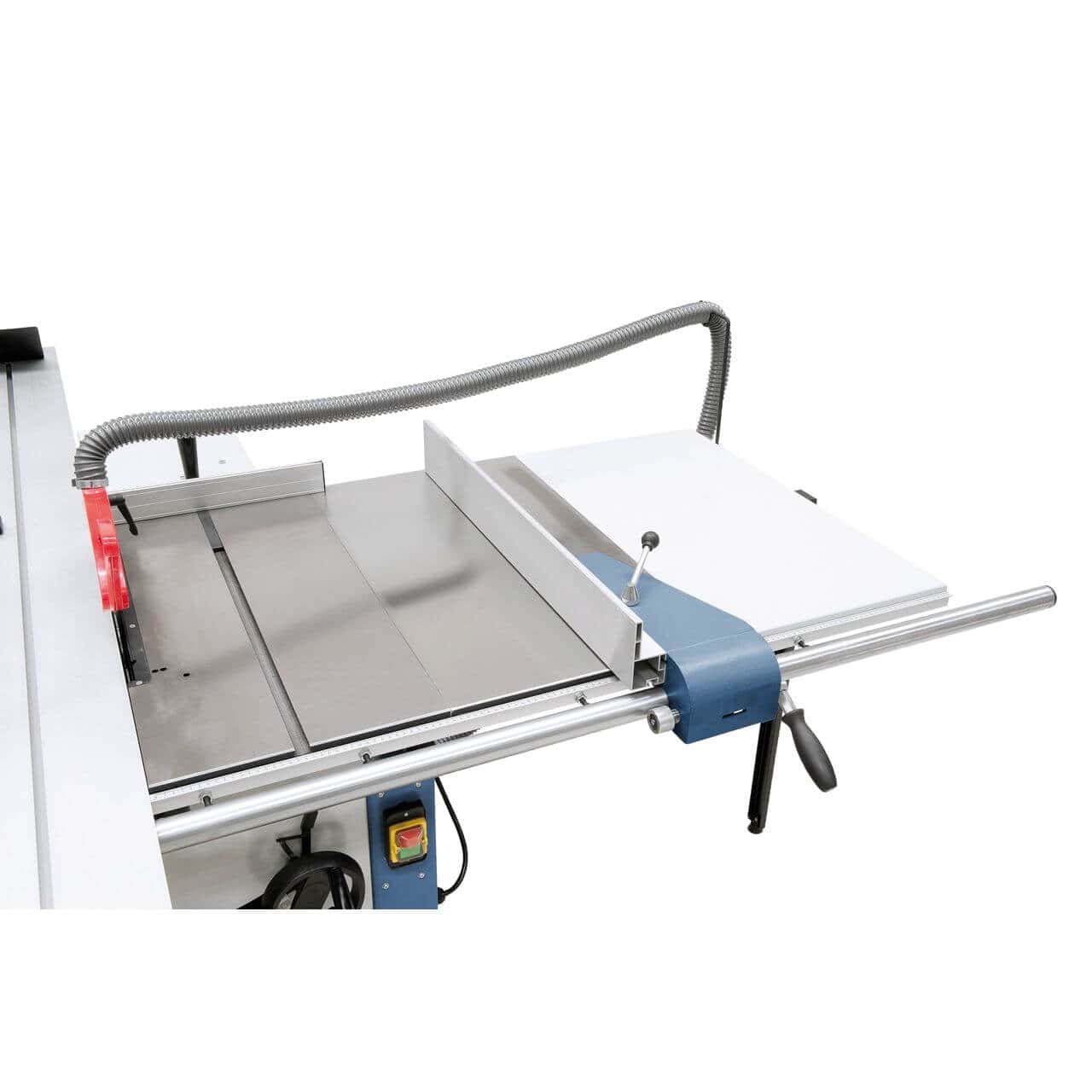

• Foldable parallel guide with micrometric adjustment
• Telescopic guide extendable up to 2260 mm, mountable on both sides
• Table extensions and widenings for an enlarged work surface
• Torsionally rigid steel and cast iron machine body
• 3.8 kW motor for continuous and stable cuts
• Precision-machined cast iron table with smooth surface
Technical data
| Technical specifications | |
|---|---|
| Table size | 800 x 385 mm |
| Sliding carriage | 3200 x 270 mm |
| Cutting length | 3300 mm |
| Maximum blade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm |
| Cutting width on parallel guide | 1200 mm |
| Table height | 860 mm |
| Table extension | 500 x 310 mm |
| Table enlargement | 800 x 880 mm |
| Square table with roller | 935 x 580 mm |
| Main blade speed | 4000 rpm |
| Engraving blade speed | 5800 rpm |
| Engraving blade | 90 x 20 mm |
| Suction outlet | Ø 100 mm |
| Engine power (S1 100%) | 3.8 kW (5.1 HP) |
| Engine power (S6 40%) | 5.3 kW (7.2 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 3200 x 2990 x 1140 mm |
| Weight approx. | 312 kg |
Package Contents
• HM blade 315 x 3.0 x 30 mm / 40 teeth
• Engraving blade 90 x 20 mm / 12 teeth

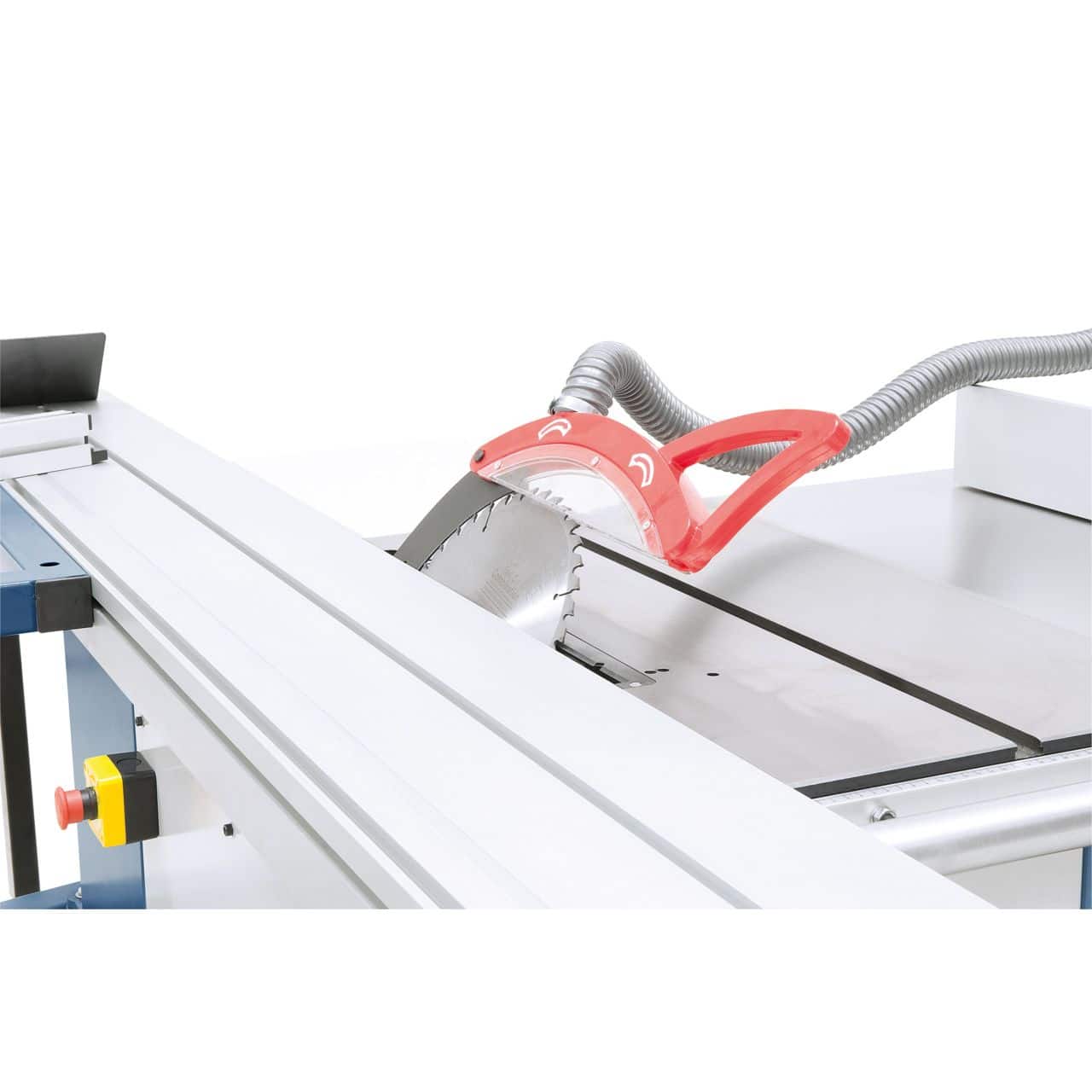

• Protective casing with suction connection
• Connection pipe with Y-fitting

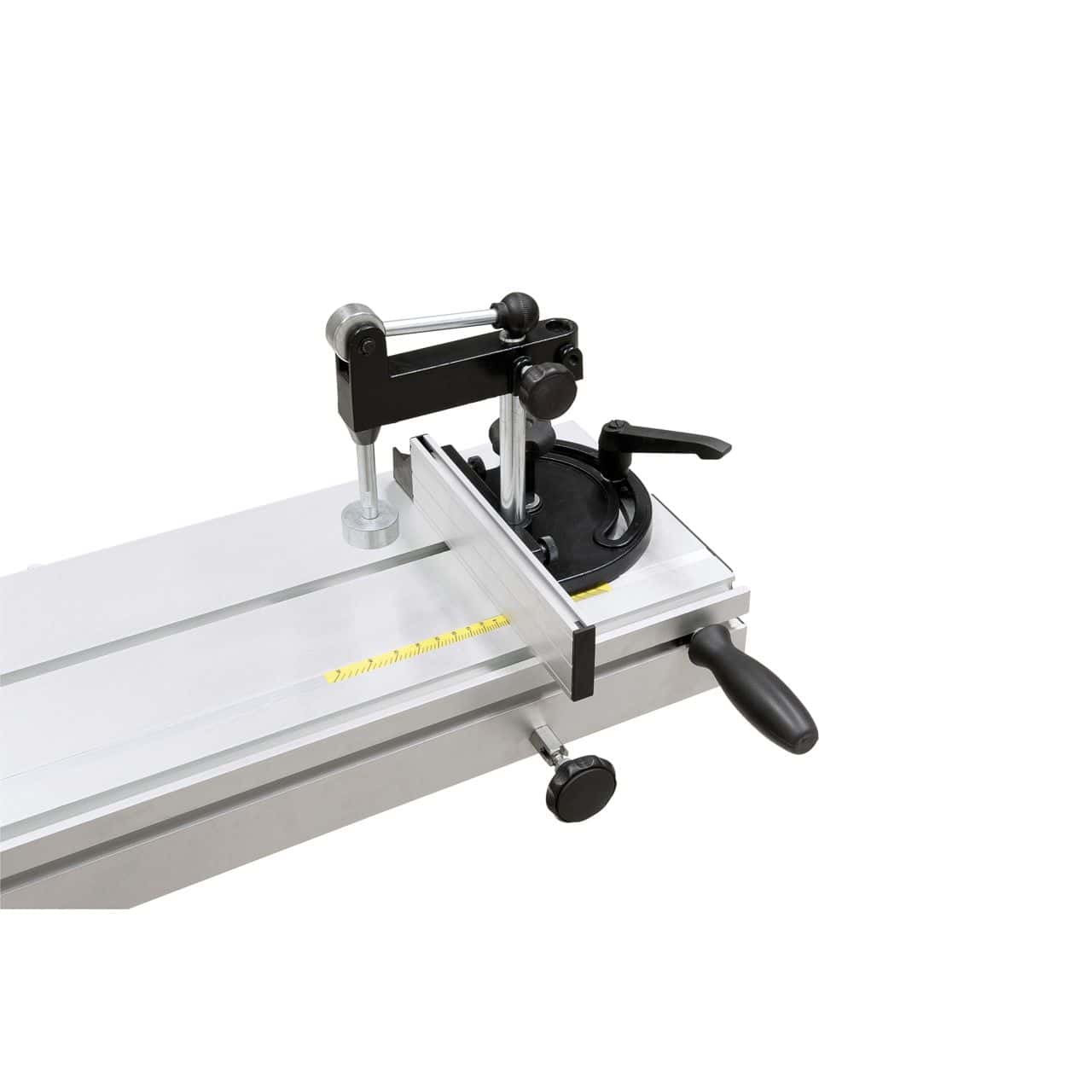

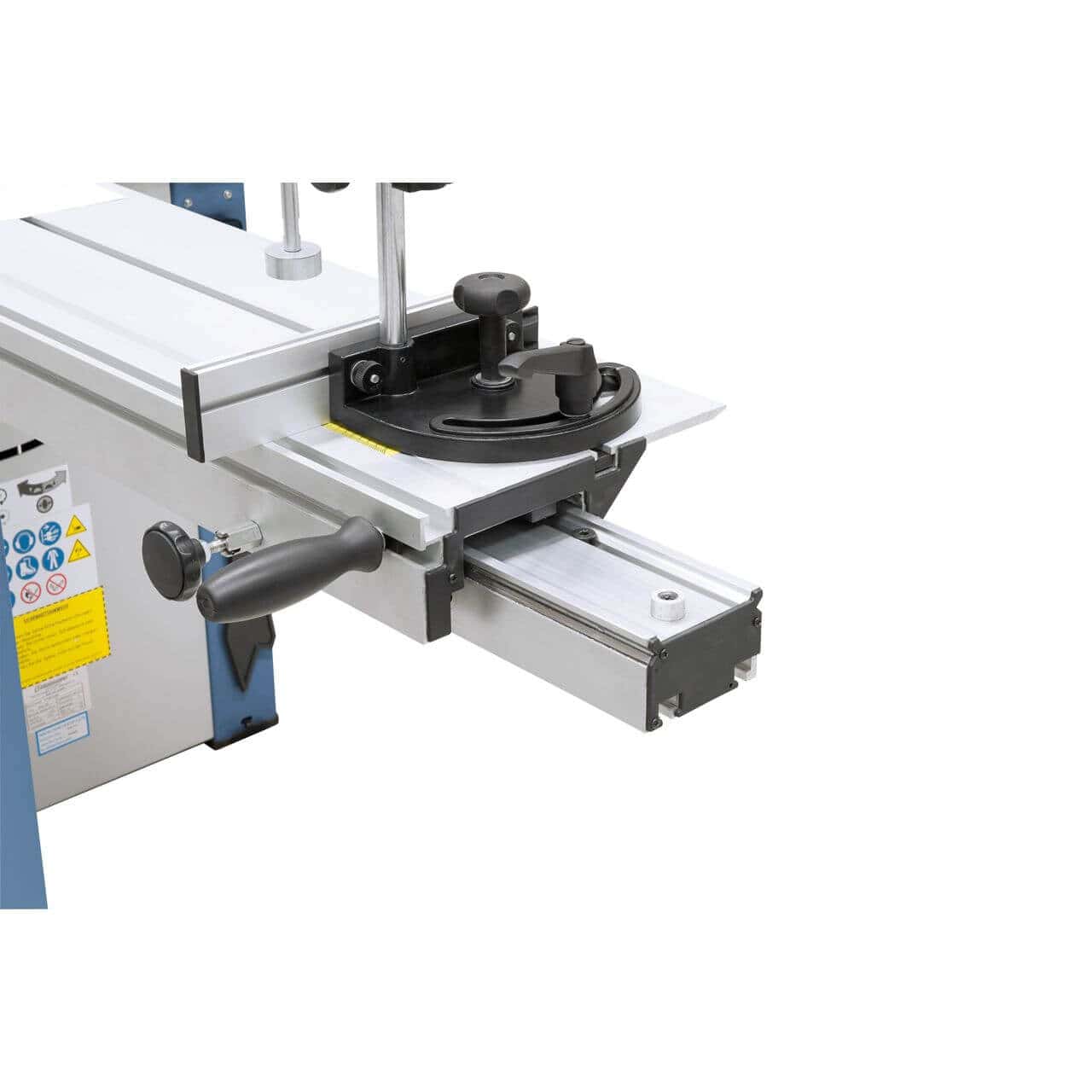

• Corner stop with eccentric support
• Corner stop
• End of stroke stop
• Table extension
• Table enlargement
• Extractable telescopic guide
• Fine adjustment of the beat
• Square table with roller
• Pusher
• Tool set
Technical Specifications
• Blade correctly mounted and tightened
• Protection in position
• Free work panel
• Extractor fan connected to the Ø 100 mm outlet
• Check the smooth running of the carriage
• Check blade rotation when idle before cutting
Weekly: check tightening, grease guides
Monthly: Check belt tension and blade supports
Always turn off the machine and disconnect it from the mains before any intervention.
